CAT.5E UTP, 4 pair, 24AWG, 305m/box, Longest working distance: 150m Chạy được tốc độ thật 1G với khoảng cách 90m – Màu Xám

CAT5E UTP 4PAIR SOLID – 305MTR – PVC

Cat 5e 4 Pair U/UTP Cable

DINTEK PowerPRO Category 5E 4 Pair UTP cable, has been designed to support high speed data transmission systems.

This cable is part of the PowerPRO System range of products, that have been designed based on the PowerSum principle of crosstalk measurement and{social} testing. We recommend that the full range of PowerPRO products is used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.
When combined as an end to end solution, the PowerPRO system, when installed by a certified installer can be warrantied for 25yrs.

Specifcations

  • Twisted pair color code:
    Pair 1> blue, white/blue ring.
    Pair 2> orange, white/orange ring
    Pair 3> green, white/green ring
    Pair 4> brown, white/brown ring
  • Material : Soft copper wire 24AWG
  • Conductor Diameter : 0.498mm
  • Number of twist pairs: 4 pairs

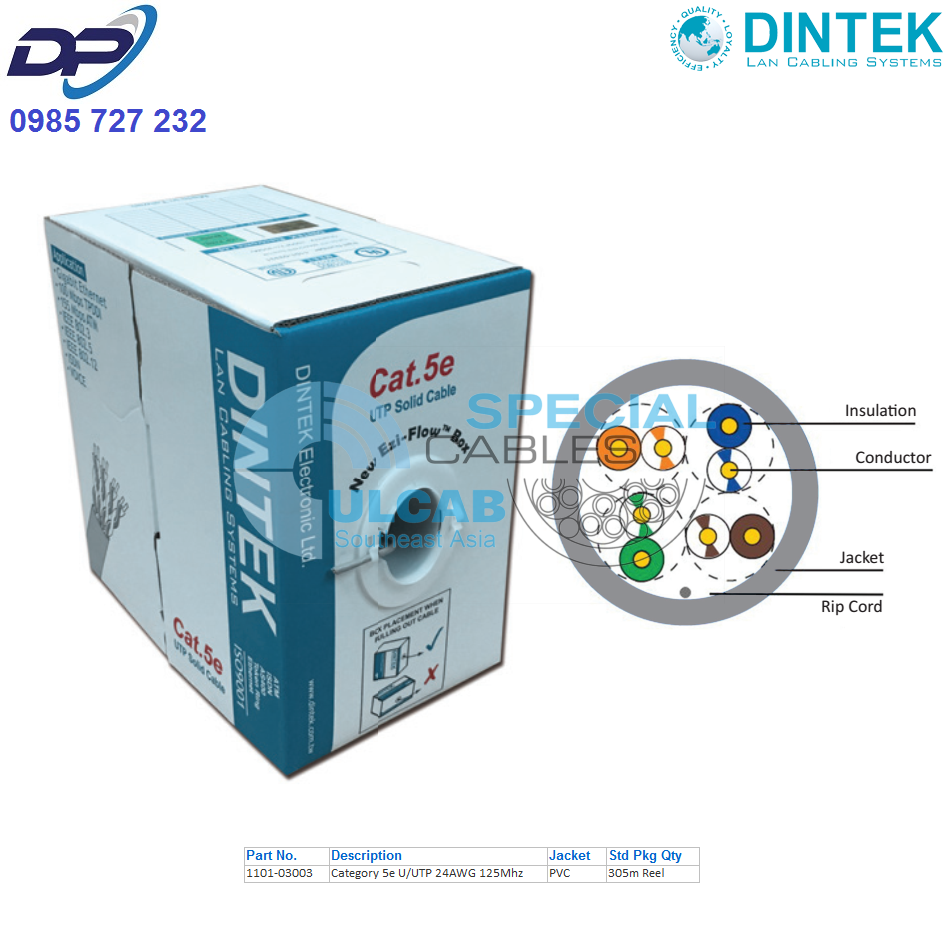

  • Assembly: Arranged in accordance with the structure figure

Wire Internal Characteristics

  • Material : HDPE
  • InsulaƟon Thickness : Nominal: 0.863 mm
  • Jacket Unaged Elongation:Min. 300%
  • Tensile strength : Min. 1.683 Kgf/mm²

Jacket Characteristics

  • Material: Ignition delay PVC
  • Jacket Thickness: 0.52±0.02 mm
  • Outer dimension: 5.1±0.1 mm
  • Colour: Gray
  • Insulation Unaged Elongation:Min.100%
  • Tensile strength of outside: Min. 1.407 Kgf/mm²
  • Outside aging test: Min. elongation retenƟon:50%
  • Min. tensile strength retention:75%

Electrical Characteristics

  • Capacitances unbalance : max. 160pf/100m
  • DC resistance of conductor: max. 9.38Ω/100m at 20°
  • Mutual Capacitance: 5600pF/100m ( maximum)
  • InsulaƟon resistance: Min. 5000 MΩ/Km
  • Dielectric Strength : DC 500V / 1min. or AC 350V / 1min.
  • Spark Test: 2000±250 Vac
  • Impedance:100Ω±15% (1~125MHz)

Standards

  • All Category 5e Requirements as Per ANSI/TIA, ISO/IEC, and CENELEC EN
  • EIA/TIA-586-B.2
  • ANSI/TIA-568-C.2
  • ISO/IEC 2nd EdiƟon 11801 Class D
  • CENELEC EN 50173-1
  • IEC 61156-5, CENELEC EN 50288-3-1 for horizontal cable
  • Flame Retardancy is Verified According to IEC 60332-1-2
  • IEEE 802.3af-2003 , 802.3at-2009, IEEE 802.3bt

Electrical Characteristics

  • ETL Verified CerƟficate of Conformance Number: 102661868CRT-001a

Applications

  • Voice; T1; ISDN
  • 100BASE-T Ethernet (IEEE802.3)
  • 155/622Mbps 1.2/2.4 Gbps ATM
  • 1000Mbps Gigabit Ethernet
  • 550MHz Broadband Video

Transmission Performance

Frequency Maximum
attenuation
Proximal
USU
Power
accumulate into
end crosstalk
(MHz) (dB/100 meters) (dB), Min. (dB), Min.
1 2 65,3 62,3
4 4,1 56,3 53,3
8 5,8 51,8 48,8
10 6,5 50,3 47,3
16 8,2 47,2 44,2
20 9,3 45,8 42,8
25 10,4 44,3 41,3
31,25 11,7 42,9 39,9
62,5 17 38,4 35,4
100 22 35,3 32,3
125 24,9 33,8 30,8

Ordering Information

Part No. Description Jacket Std Pkg Qty
1101-03003 Category 5e U/UTP 24AWG 125Mhz PVC 305m Reel
