CAT.5e FTP, 4 pair, 24AWG, Bọc nhôm chống nhiễu, 305m/box

CAT5E F/UTP 4 PAIR CABLE 305MTR PVC

Cat.5e 4 Pair F/UTP Solid Cable

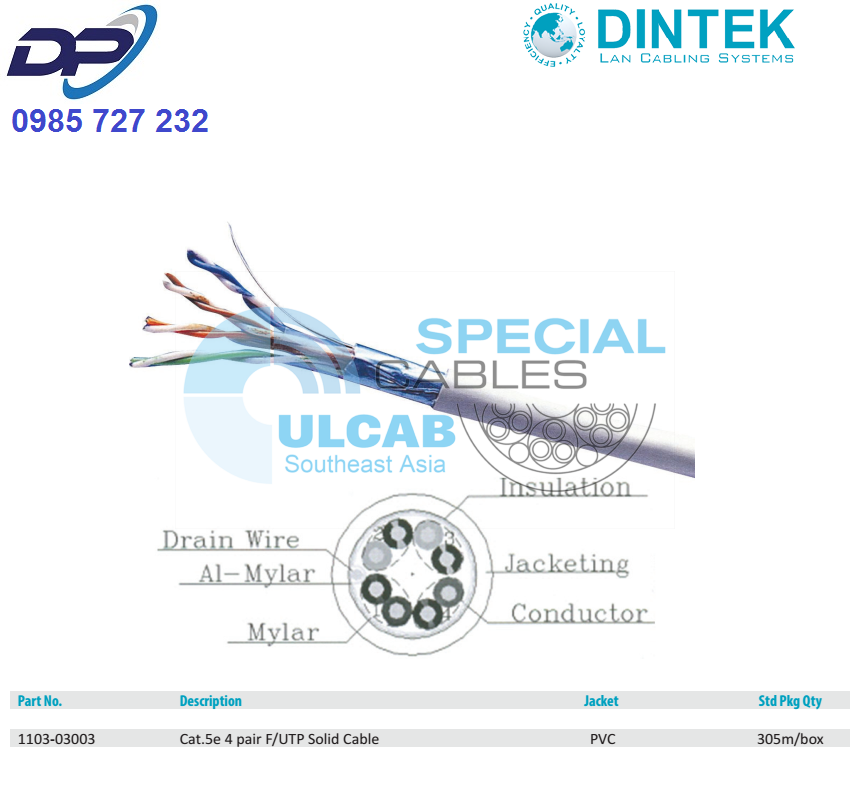

Cable Structure

  • Twisted pair color code:
    Pair 1> blue, white/blue ring.
    Pair 2> orange, white/orange ring
    Pair 3> green, white/green ring
    Pair 4> brown, white/brown ring
  • Conductor: 24AWG solid anneal copper wire
  • Insulation material: Polyethylene
  • Diameter of dielectric core: 1.05±0.05mm
  • Number of twist pairs: 4 pairs
  • Individual Shielding:
  • Maylar film as a layer of buffer
  • Aluminum-foil-laminated shield.
  • One 26AWG Tinned Copper drain wire
  • Assembly: 4 pairs of dielectric core shall be stranded in circular form.
  • Material of jacket: PVC
  • Sheath Thickness: Ave. 0.5mm
  • Overall Diameter: Ave. 6.0±0.5mm
  • Color: Gray

Physical Characteristics

  • Jacket elongation: min 100%
  • Jacket tensile strength: PVC>>min 1500psi, LSZH>>min 1200psi
  • After aging jacket tensile strength: PVC>>75% of before aging.
    LSZH>>70% of before aging.
  • After aging jacket elongation: PVC>>50% of before aging. LSZH>>75%
    of before aging

Electrical Characteristics

  • Capacitance: Max. 5.6nf/100m
  • Capacitances unbalance : max. 330pf/100m
  • DC resistance of conductor: max. 9.38Ω/100m at 20°C
  • DC resistance unbalance of conductor: max. 5%
  • InsulaƟon resistance: min. 150MΩ/Km
  • Velocity of propagation: nom. 66%
  • Dielectric Strength : 2500Vds/3 seconds

Standards

  • UL, ETL Verified
  • ISO/IEC11801
  • ANSI/TIA/EIA Cabling Standard 568-C.2
  • CENELEC EN 50173

Applications

  • Voice; T1; ISDN
  • 10BASE-T (IEEE 802.3)
  • 16Mbps Token Ring (IEEE802.5)
  • 100VG-AnyLAN (IEEE802.12)
  • 100BASE-T Ethernet (IEEE802.3)
  • 155/622Mbps ATM
  • 1000Mbps Gigabit Ethernet
  • 550MHz Broadband Video
  • 10GBASE-T Ethernet

Transmission Performance

Frequency Atten. NEXT PSNEXT
(MHz) dB/100m dB.(Min.) dB.(Min.)
1 – – 65 62
4 4,1 56 53
8 5,8 51 48
10 6,5 50 47
16 8,2 47 44
20 9,3 45 42
25 10,4 44 41
31,25 11,7 42 39
62,5 17 38 35
100 22 35 32
125 25 34 31
Part No. Description Jacket Std Pkg Qty
1103-03003 Cat.5e 4 pair F/UTP Solid Cable PVC 305m Reel

DATA SHEET
