CAT.5e S-FTP, 4 pair, 24AWG, Bọc nhôm chống nhiễu 4 đôi, bọc thêm lưới đồng ở ngoài, cuộn 305m trên rulo nhựa.

CAT5E S/FTP 4 PAIR CABLE 305MTR

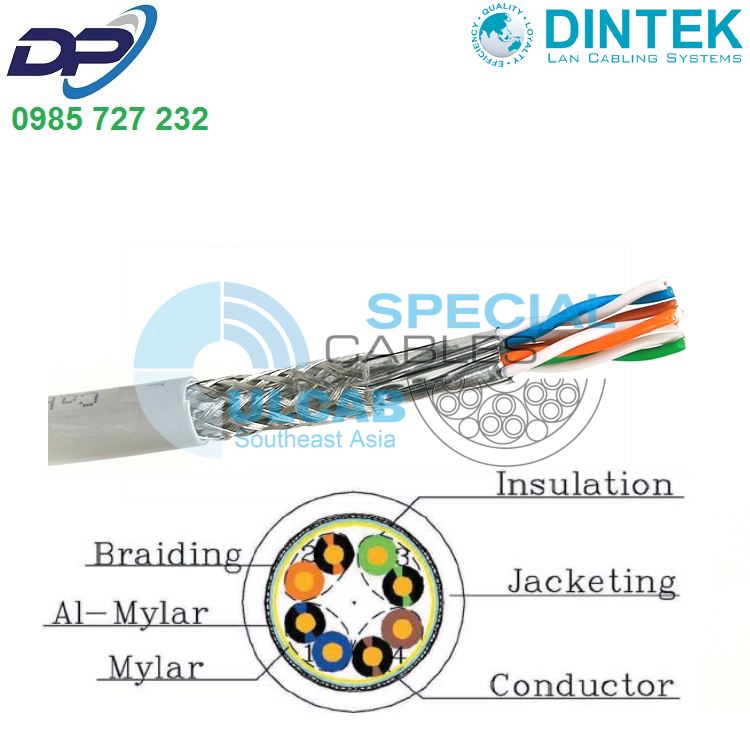

Cable Structure

  • Twisted pair color code:
    Pair 1> blue, white/blue ring.
    Pair 2> orange, white/orange ring
    Pair 3> green, white/green ring
    Pair 4> brown, white/brown ring
  • Conductor: 24AWG solid anneal copper wire
  • InsulaƟon material: Polyethylene
  • Diameter of dielectric core: 1.02±0.05mm
  • Number of twist pairs: 4 pairs
  • Individual Shielding:
  • Maylar film as a layer of buffer
  • Aluminum-foil-laminated shield.
  • Tinned copper wire braid shield with nom. 60%
  • One 24AWG drain wire put between Aluminum-foil-laminated and
  • Braiding layer.
  • Assembly: 4 pairs of dielectric core shall be stranded in circular form.
  • Material of jacket: PVC, or LSZH.
  • Overall Diameter: Ave. 6.5±0.2mm
  • Color: Gray

Physical Characteristics

  • Jacket elongation: min 100%
  • Jacket tensile strength: PVC>>min 1500psi, LSZH>>min 1200psi
  • After aging jacket tensile strength: PVC>>70% of before aging.
    LSZH>>75% of before aging.
  • After aging jacket elongation: PVC>>65% of before aging. LSZH>>75% of
    before aging

Electrical Characteristics

  • Capacitance: Max. 5.6nf/100m
  • Capacitances unbalance pair to groud: max. 160pf/100m at 1 kHz
  • DC resistance of conductor: max. 9.38Ω/100m at 20°C
  • DC resistance unbalance of conductor: max. 2% at 20°C
  • Insulation resistance: min. 5000MΩ/Km at 20°C
  • Velocity of propagation: nom. 66%
  • Rated temperature: 60/75°C
  • Rated voltage: 30V
  • Dielectric test: min. 1 kV / 1 minute, without any breakdown.
  • Delay skew: 45ns

Standards

  • ISO/IEC11801 2nd edition
  • ANSI/TIA/EIA Cabling Standard 568-C.2
  • CENELEC EN 50173

Applications

  • Voice; T1; ISDN
  • 10BASE-T (IEEE 802.3)
  • 16Mbps Token Ring (IEEE802.5)
  • 100VG-AnyLAN (IEEE802.12)
  • 100BASE-T Ethernet (IEEE802.3)
  • 155/622Mbps 1.2/2.4 Gbps ATM
  • 1000Mbps Gigabit Ethernet
  • 550MHz Broadband Video

Transmission Performance

Frequency Atten. NEXT PSNEXT ELFEXT PSELFEXT Return Loss Propagation
Delay
(MHz) dB/100m dB dB dB dB dB ns
1 2,6 65,3 62,3 63,8 60,8 20,2 570
4 4,7 56,3 53,3 51,7 48,7 23 543
8 6,4 51,8 48,8 45,7 42,7 24,5 538,5
10 7 50,3 47,3 43,8 40,8 25 537,6
16 8,7 47,3 44,3 39,7 36,7 25 536,25
20 9,6 45,8 42,8 37,7 34,7 25 535,8
25 10,6 44,3 41,3 35,8 32,8 24,3 535,44
31,25 11,7 42,9 39,9 33,9 30,9 23,6 535,15
62,5 17 38,4 35,4 27,8 24,8 21,5 534,38
100 22 35,3 32,3 23,8 20,8 20,1 534,36

Ordering Information

Part No. Description Jacket Std Pkg Qty
1105-03001 Cat.5e.4P.SF/UTP.24AWG Solid Cable PVC / LSZH 305m/box
