LAPP KABEL 1119312 (12 G1.5mm²) ÖLFLEX® CLASSIC 110 | Chính Hãng – Giá Tốt Nhất

Power and control cables
Various applications
PVC outer sheath and numbered cores

LAPP KABEL 1119312 (12 G1.5mm²) ÖLFLEX® CLASSIC 110 | Chính Hãng – Giá Tốt Nhất

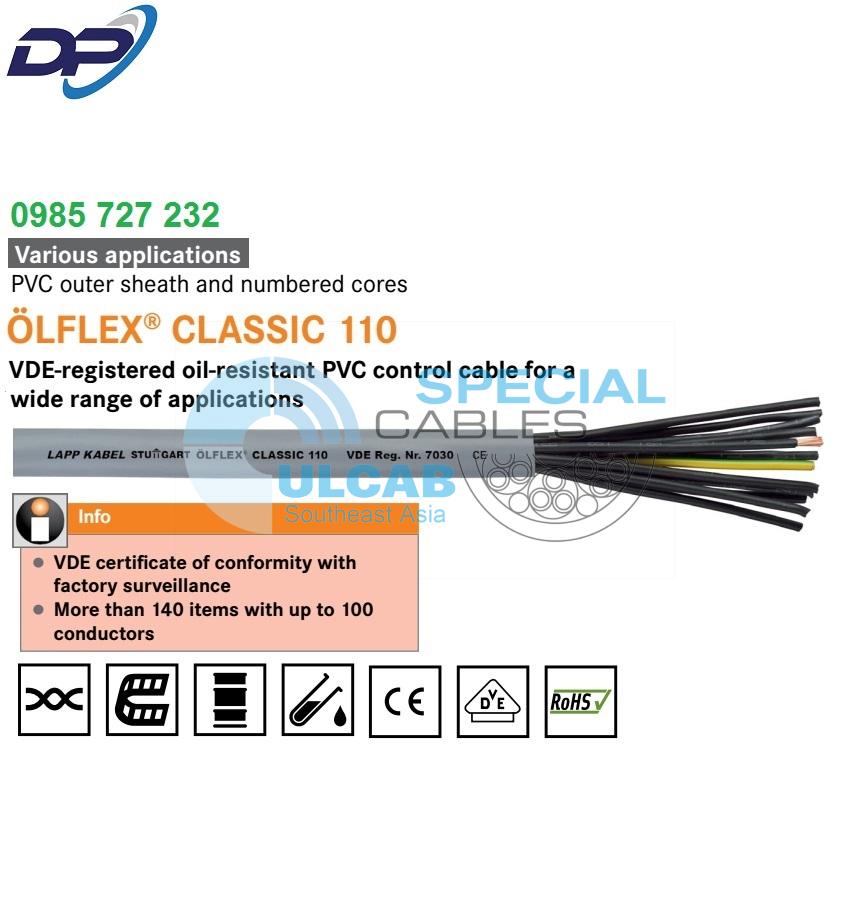

LAPP KABEL ÖLFLEX® CLASSIC 110
VDE-registered oil-resistant PVC control cable for a wide range of applications

ÖLFLEX® CLASSIC 110 – PVC control cable, VDE-registered, oil-resistant and flexible for various applications, 300/500V, also for YSLY or YY

  • VDE certificate of conformity with
    factory surveillance
  • More than 140 versions with up to 100 cores

Chống xoắn Dây chuyền điện Chống dầu Kháng hóa chất tốt



Benefits

  • Wide choice of standardized lengths and individual cuts
  • Very broad range, items with up to 100 conductors

Application range

  • For fixed installation as well as occasional flexing with free, non-continuously recurring movement without tensile load
  • Dry or damp rooms that are subject to normal mechanical loads
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • In power chains for a travelling distance up to 5 m and 0.2 – 1 million bending cycles for the following dimensions: 0.5 to 2.5 mm² and 2 to 7 cores

Product features

  • Flame-retardant according to IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
  • Oil-resistant according to DIN EN 50290-2-22 (TM54)

Norm references / approvals

  • VDE reg. no. 7030 for the following sizes:up to 2.5 mm²: 2 – 65 coresfrom 4 mm²: 2 – 7 coresfrom 25 mm²: 2 – 5 cores

Design

  • Finely stranded bare copper wires
  • PVC core insulation LAPP P8/1
  • Cores twisted in layers
  • PVC sheath, grey (RAL 7001)

■ Technical data

Classification

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Core identification code

  • Black with white numbers acc. to VDE 0293-1

Conductor design

  • Fine wire according to DIN EN 60228 (VDE 0295), class 5 / IEC 60228 class 5

Torsion movement in WTG

  • TW-0 & TW-1, refer to Appendix T0

Minimum bending radius

  • Occasional flexing: 10 x outer diameter
    In power chains: 15 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 4000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • Occasional flexing: -15°C to +70°C
    In power chains: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Article number  Number of cores and
mm² per conductor
Outer diameter
(mm)
Copper index (kg/km)  Weight (kg/km)
ÖLFLEX® CLASSIC 110
1119752 2 X0.5 4,8 9,6 35
1119003 3 G0.5 5,1 14,4 42
1119753 3 X0.5 5,1 14,4 42
1119004 4 G0.5 5,7 19,2 54
1119754 4 X0.5 5,7 19,2 54
1119005 5 G0.5 6,2 24 63
1119755 5 X0.5 6,2 24 63
1119007 7 G0.5 6,7 33,6 81
1119757 7 X0.5 6,7 33,6 81
1119010 10 G0.5 8,6 48 116
1119012 12 G0.5 8,9 58 131
1119014 14 G0.5 9,5 67 153
1119018 18 G0.5 10,5 86,4 188
1119021 21 G0.5 11,7 101 221
1119025 25 G0.5 12,4 120 261
1119030 30 G0.5 13,3 144 304
1119035 35 G0.5 14,5 168 356
1119040 40 G0.5 15,4 192 400
1119052 52 G0.5 17,3 250 517
1119061 61 G0.5 18,5 293 603
1119065 65 G0.5 19,6 312 644
1119080 80 G0.5 21,1 384 780
1119100 100 G0.5 23,6 480 975
1119802 2 X0.75 5,4 14,4 45
1119103 3 G0.75 5,7 21,6 55
1119803 3 X0.75 5,7 21,6 55
1119104 4 G0.75 6,2 28,8 66
1119804 4 X0.75 6,2 28,8 66
1119105 5 G0.75 6,7 36 79
1119805 5 X0.75 6,7 36 79
1119107 7 G0.75 7,3 50 101
1119807 7 X0.75 7,3 50 101
1119109 9 G0.75 9,4 65 137
1119110 10 G0.75 9,6 72 150
1119112 12 G0.75 9,9 86 171
1119812 12 X0.75 9,9 86 171
1119115 15 G0.75 10,9 108 209
1119117 15 X0.75 10,9 108 209
1119116 16 G0.75 11,1 115,2 220
1119118 18 G0.75 11,7 130 244
1119121 21 G0.75 13 151 286
1119125 25 G0.75 13,8 180 337
1119126 26 G0.75 14,2 187,2 350
1119134 34 G0.75 15,9 245 448
1119141 41 G0.75 17,4 296 538
1119150 50 G0.75 19,2 360 648
1119151 51 G0.75 19,2 367 646
1119161 61 G0.75 20,5 439 779
1119165 65 G0.75 21,8 468 832
1119180 80 G0.75 23,6 576 1019
1119200 100 G0.75 26,4 718 1271
1119852 2 X1.0 5,7 19,2 53
1119203 3 G1.0 6 28,8 65
1119853 3 X1.0 6 28,8 65
1119204 4 G1.0 6,5 38,4 79
1119854 4 X1.0 6,5 38,4 79
1119205 5 G1.0 7,1 48 94
1119855 5 X1.0 7,1 48 94
1119206 6 G1.0 8 58 113
1119207 7 G1.0 8 67 126
1119857 7 X1.0 8 67 126
1119208 8 G1.0 9,5 77 149
1119209 9 G1.0 10 86 164
1119210 10 G1.0 10,2 96 180
1119212 12 G1.0 10,5 115 205
1119862 12 X1.0 10,5 115 205
1119214 14 G1.0 11,2 134 238
1119216 16 G1.0 11,8 153,6 266
1119218 18 G1.0 12,7 173 320
1119868 18 X1.0 12,7 173 320
1119220 20 G1.0 13,4 192 330
1119870 20 X1.0 13,4 192 330
1119225 25 G1.0 14,7 240 408
1119226 26 G1.0 15,1 249 424
1119234 34 G1.0 17,1 326 551
1119236 36 G1.0 17,4 346 578
1119241 41 G1.0 18,8 394 661
1119250 50 G1.0 20,6 480 797
1119256 56 G1.0 21,4 538 888
1119261 61 G1.0 22,1 586 958
1119265 65 G1.0 23,6 624 1033
1119280 80 G1.0 25,3 768 1251
1119300 100 G1.0 28,3 960 1560
1119902 2 X1.5 6,3 29 68
1119303 3 G1.5 6,7 43 84
1119903 3 X1.5 6,7 43 84
1119304 4 G1.5 7,2 58 104
1119904 4 X1.5 7,2 58 104
1119305 5 G1.5 8,1 72 128
1119905 5 X1.5 8,1 72 128
1119306 6 G1.5 8,4 86,4 157
1119307 7 G1.5 8,9 101 166
1119907 7 X1.5 8,9 101 166
1119308 8 G1.5 10,6 115 210
1119313 8 X1.5 10,6 116 210
1119309 9 G1.5 11,4 130 221
1119310 10 G1.5 11,6 143 243
1119311 11 G1.5 11,6 158 258
1119312 12 G1.5 12 173 279
1119912 12 X1.5 12 173 279
1119314 14 G1.5 12,7 202 323
1119316 16 G1.5 13,4 230,4 361
1119318 18 G1.5 14,4 259 407
1119321 21 G1.5 15,7 302 469
1119325 25 G1.5 16,9 360 560
1119326 26 G1.5 17,3 374,4 582
1119332 32 G1.5 18,7 461 704
1119334 34 G1.5 19,4 490 746
1119341 41 G1.5 21,3 591 895
1119350 50 G1.5 23,5 720 1089
1119361 61 G1.5 25,2 878 1309
1119365 65 G1.5 26,7 936 1398
1119952 2 X2.5 7,5 48 101
1119403 3 G2.5 8,1 72 132
1119404 4 G2.5 8,9 96 163
1119405 5 G2.5 10 120 200
1119407 7 G2.5 11,1 168 267
1119412 12 G2.5 14,8 288 445
1119414 14 G2.5 15,8 336 515
1119418 18 G2.5 17,8 432 648
1119425 25 G2.5 20,8 600 890
1119434 34 G2.5 24,4 816 1208
1119450 50 G2.5 29,4 1,200.0  1754
1119503 3 G4 9,9 115 201
1119504 4 G4 10,8 154 249
1119505 5 G4 12,1 192 294
1119507 7 G4 13,4 269 407
1119511 11 G4 17,6 422 634
1119512 12 G4 18,1 461 660
1119603 3 G6 11,7 172,8 289
1119604 4 G6 13 230 365
1119605 5 G6 14,5 288 447
1119607 7 G6 16 403 600
1119613 3 G10 14,6 288 466
1119614 4 G10 16,2 384 590
1119615 5 G10 18,1 480 722
1119617 7 G10 20 672 968
1119624 4 G16 18,8 614 1087
1119625 5 G16 21,2 768 1370
1119627 7 G16 23,4 1,075.0  1779
1119634 4 G25 23,5 960 1582
1119635 5 G25 26,4 1.200,0  1998
1119636 7 G25 29,1 1.680.0  2825
1119644 4 G35 26,4 1,344,0  2106
1119645 5 G35 29,6 1.680.0  2635
