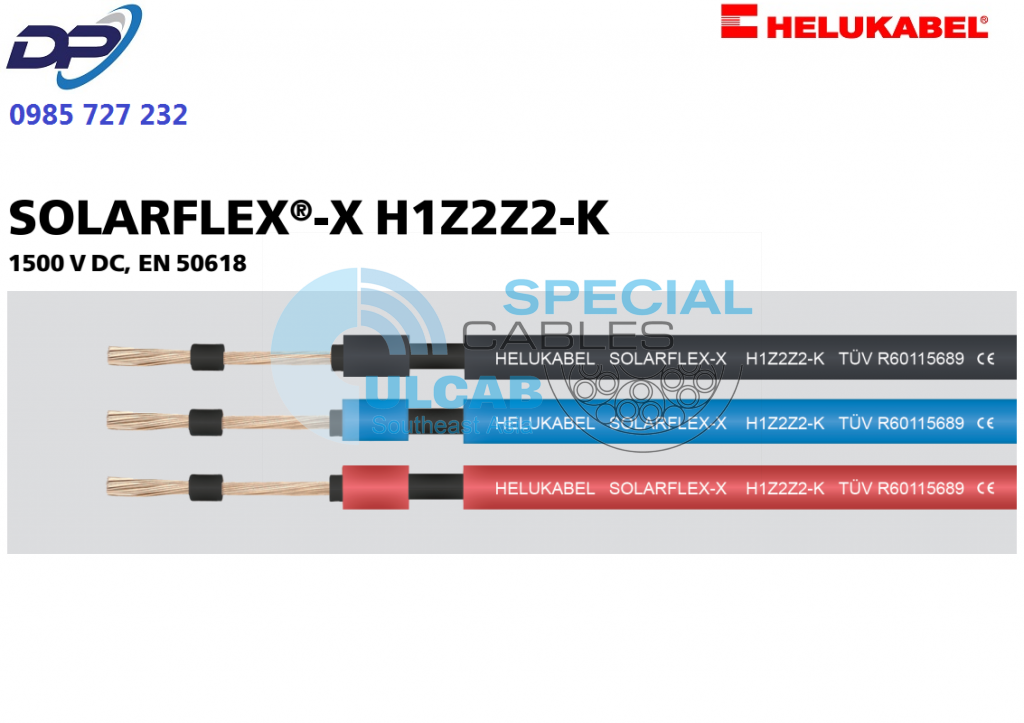

SOLARFLEX®-X H1Z2Z2-K |
1500 V DC, EN 50618 |
Technical data
- Temperature range
-40°C to +90°C
max. temperature at conductor +120°C - Nominal voltage
AC 1,0/1,0 kV
DC 1,5/1,5 kV - Test voltage
AC 6,5 kV - Minimum bending radius
fixed installation 5x cable Ø
Cable structure
- Tinned copper conductor, to
DIN VDE 0295 cl.5, fine wire,
IEC 60228 cl.5 - 1. Core insulation of special
cross-linked compound
2. Core insulation of special
cross-linked compound - Sheath colour: see table below
Properties
- Double-insulated
- complies protection class II
- UV-resistant
- Ozone resistant
Tests
- Halogen-free acc. to
EN 50267, IEC 60754 - Flame retardant to IEC 60332-1-2
- Smoke density to IEC 61034
- Weathering/UV-resistance acc. to
EN 50289-4-17 Method A - Ozon resistance acc. to EN 50396
Clause 8.1.3 Methode B
Approvals
- EN 50618
TÜV Rheinland 2 PfG 1990/05.12
TÜV R60115689
Application
The SOLARFLEX®-X is used for cabling solar modules.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
| Part no. | No.cores x cross-sec. mm² |
Sheath colour |
Outer Ø
app. mm |
Cop. weight kg / km |
Weight
app. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|
| 713529 | 1 x 2,5 | black | 5,0 | 24,0 | 41,0 | 14 |
| 713544 | 1 x 2,5 | blue | 5,0 | 24,0 | 41,0 | 14 |
| 713543 | 1 x 2,5 | red | 5,0 | 24,0 | 41,0 | 14 |
| 713530 | 1 x 4 | black | 5,4 | 38,4 | 55,0 | 12 |
| 713546 | 1 x 4 | blue | 5,4 | 38,4 | 55,0 | 12 |
| 713545 | 1 x 4 | red | 5,4 | 38,4 | 55,0 | 12 |
| 713531 | 1 x 6 | black | 6,2 | 57,6 | 82,0 | 10 |
| 713570 | 1 x 6 | blue | 6,2 | 57,6 | 82,0 | 10 |
| 713569 | 1 x 6 | red | 6,2 | 57,6 | 82,0 | 10 |
| 713532 | 1 x 10 | black | 7,4 | 96,0 | 123,0 | 8 |
| 713572 | 1 x 10 | blue | 7,4 | 96,0 | 123,0 | 8 |
| 713571 | 1 x 10 | red | 7,4 | 96,0 | 123,0 | 8 |
