Cáp Mạng Helukabel Cat7e (802168) HELUKAT® 600AE S/FTP 4x2xAWG23/1 FRNC/PE Armoured | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất
LAN Cable / armoured |
HELUKAT® 600AE S/FTP 4x2xAWG23/1 FRNC/PE |
 |

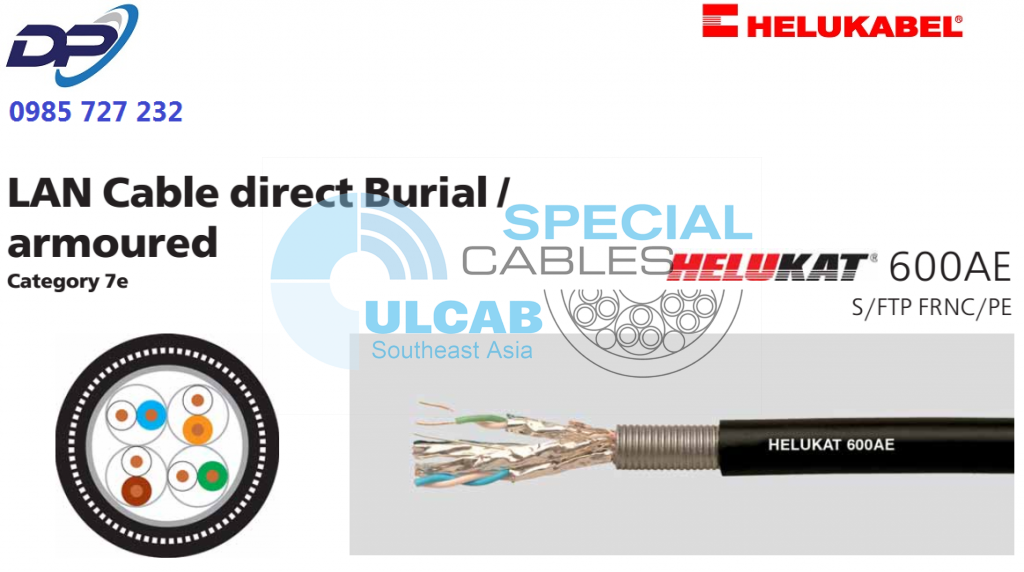

HELUKAT® 600AE S/FTP 4x2xAWG 23/1 FRNC/PE black armoured Part no. 802168
Cable structure
S/FTP 4x2xAWG 23/1 FRNC/PE
Description
HELUKAT® 600AE S/FTP solid direct burial
Typical values
| Frequency | (MHz) | 10 | 16 | 62,5 | 100 | 200 | 300 | 600 | 900 | 1000 |
| Attenuation | (dB/100m) | 5,6 | 7,1 | 13,9 | 17,5 | 25,2 | 32,1 | 44,9 | 55 | 58 |
| Next | (db) | 100 | 100 | 96 | 94 | 88 | 84 | 73 | 71 | 69 |
| ACR | (db) | 94,4 | 92,9 | 82,1 | 76,5 | 62,8 | 51,9 | 28,1 | 16 | 9 |
| Cable structure | S/FTP 4x2xAWG 23/1 FRNC/PE |
| Inner conductor Ø: | 0,58 mm |
| Conductor material: | Copper, bare |
| Core insulation: | Foam-skin-PE |
| Core colours: | wh/bu, wh/og, wh/gn, wh/bn |
| Separator: | – |
| Inner sheath material: | FRNC |
| Screen over stranding element: | Al-Foil |
| Screen 1 over stranding: | Cu braid |
| Screen 2 over stranding: | – |
| : | Steel shaft |
| Outer sheath material: | PE |
| Outer diameter: | app. 12,2 mm |
| Outer sheath colour: | Black |
Electrical data
- Characteristic impedance:
100 Ohm ± 15 Ohm at 1 to 100 MHz
100 Ohm ± 20 Ohm at 101 to 1000 MHz
- Loop resistance: 150 Ohm/km max.
- Mutual capacitance: 43 nF/km nom.
- Rel. propagation velocity: 79 %
Technical data
Weight: app. 155 kg/km
bending radius, repeated: 330 mm
Operating temperature range min.: -45°C
Operating temperature range max.: +70°C
Caloric load, approx. value: 2,30 MJ/m
Copper weight: 32,00 kg/km
Norms
Acc. to ISO/IEC 11801, Acc. to EN 50173, Acc. to EIA/TIA 568-A, Category 7e
Application
HELUKAT® 600AE data cables are used in the tertiary, but also in the secondary level of a network. They are characterized by large performance
reserves and outstanding performance. They can be used to implement services such as Gigabit Ethernet, Fast Ethernet, Ethernet, ATM155, FDDI,
token ring 4/16 Mbit/s or ISDN absolutely trouble-free. The series of HELUKAT® 600AE with a FRNC/PE double jacket and the rodent protection is
constructed especially for outdoor and direct burial applications.
Part no.
802168
S/FTP 4x2xAWG 23/1 FRNC/PE (S-STP)
