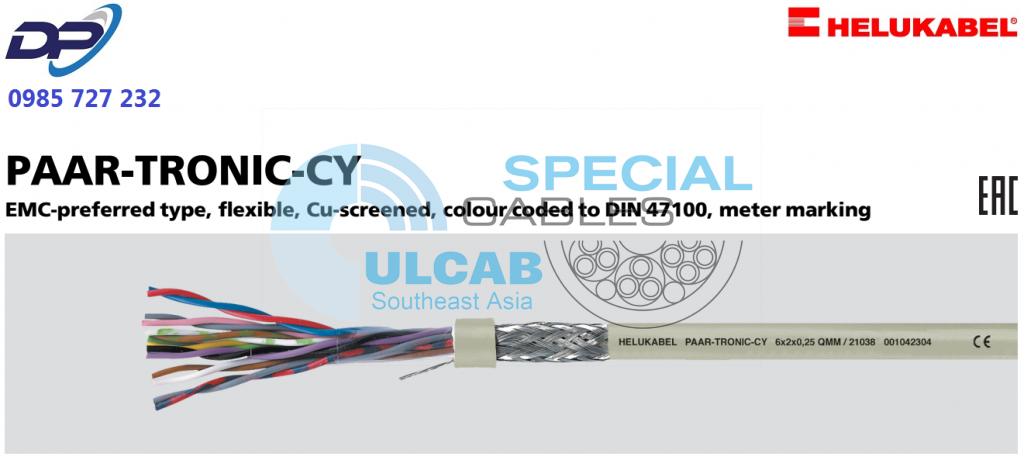

PAAR-TRONIC-CY

EMC-preferred type, flexible, Cu-screened, colour coded to DIN 47100, meter marking

Logo Image

Technical data

  • Special PVC data cables for electronic
    control adapted to DIN VDE 0812
    and 0814
  • Temperature range
    flexing -5°C to +80°C
    fixed installation -30°C to +80°C
  • Operating peak voltage
    (not for heavy current installation purposes)
    350 V
  • Test voltage
    core/core  1200 V
    core/screen  800 V
  • Breakdown voltage
    min. 2400 V
  • Insulation resistance
    min. 20 MOhm x km
  • Plant capacity (approx.-value) at 800 Hz
    core/core 0,14 mm² = 120 pF/m
    core/core 0,25 mm² = 150 pF/m
    core/screen 0,14 mm² = 240 pF/m
    core/screen 0,25 mm² = 270 pF/m
  • Inductance
    approx. 0.65 mH/km
  • Impedance
    approx. 78 Ohm
  • K1-coupling
    approx. 300 pF/100 m
  • Coupling resistance
    max.250 Ohm/km
  • Minimum bending radius
    flexing 10x cable Ø
    fixed installation 5x cable Ø
  • Radiation resistance
    up to 80×106 cJ/kg (up to 80 Mrad)

Cable structure

  • Bare copper conductor, from 0.5 mm² to
    DIN VDE 0295 cl.5, fine wire,
    BS 6360 cl.5, IEC 60228 cl.5
  • Conductor construction:
    0,14 mm² = 18×0,1 mm
    0,25 mm² = 14×0,15 mm
    0,34 mm² = 7×0,25 mm
  • Core insulation of special PVC
    compound type TI2 to
    DIN VDE 0207-363-3 / DIN EN 50363-3
  • Core identification (pair) to DIN 47100
  • Cores stranded in pairs with
    optimal lay length
  • Pairs stranded in layers with
    optimal lay length
  • Foil wrapping
  • Drain wire, tinned
  • Tinned copper braided screen,
    approx. 85% coverage
  • Outer sheath of special PVC
    compound type TM2 to
    DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  • Sheath colour: grey (RAL 7032)
    also available in other colours on request
  • With meter marking

Properties

  • Extensively oil resistant,
    oil-/chemical resistance
    see “Technical Informations”
  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PCV self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2,
    DIN EN 60332-1-2, IEC 60332-1-2
    (equivalent DIN VDE 0472 part 804
    test method B)

Note

  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².
  • Unscreened analogue type:
    PAAR-TRONIC

Application

These data control cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air. PAAR-TRONIC-CY is well suited for use in areas subject to signal interference. The high level of screening reduces substantially the effects of electrical disturbances from parallel running wiring etc. The copper screening is also often used as an “earth”. The twisted pairs conform favourable cross-talk attenuation values.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Part no. No.pairs x
cross-sec.
mm²		 Outer Ø

approx. mm

 Cop.
weight

kg / km

 Weight

approx. kg / km

 AWG-No.
21001 1 x 2 x 0,14 4,0 15,6 34,0 26
21002 2 x 2 x 0,14 5,0 18,5 40,0 26
21003 3 x 2 x 0,14 5,7 23,0 49,0 26
21004 4 x 2 x 0,14 6,1 26,6 55,0 26
21005 5 x 2 x 0,14 6,8 30,7 66,0 26
21006 6 x 2 x 0,14 7,2 48,5 86,0 26
21007 7 x 2 x 0,14 7,2 51,1 91,0 26
21008 8 x 2 x 0,14 8,2 53,7 97,0 26
21009 10 x 2 x 0,14 9,1 59,0 109,0 26
21010 12 x 2 x 0,14 9,6 66,0 141,0 26
21011 14 x 2 x 0,14 10,4 74,0 148,0 26
21012 15 x 2 x 0,14 10,6 76,0 152,0 26
21013 16 x 2 x 0,14 10,7 79,0 155,0 26
21014 18 x 2 x 0,14 11,2 83,0 171,0 26
21015 20 x 2 x 0,14 11,4 97,0 183,0 26
21016 22 x 2 x 0,14 12,3 103,0 205,0 26
21017 24 x 2 x 0,14 12,8 111,0 228,0 26
21018 25 x 2 x 0,14 12,9 113,0 239,0 26
21019 26 x 2 x 0,14 13,0 122,0 245,0 26
21020 27 x 2 x 0,14 13,1 125,0 251,0 26
21021 28 x 2 x 0,14 14,0 128,0 258,0 26
21022 30 x 2 x 0,14 14,1 140,0 270,0 26
21023 32 x 2 x 0,14 14,8 145,0 284,0 26
21024 34 x 2 x 0,14 14,9 150,0 300,0 26
21025 36 x 2 x 0,14 15,6 156,0 316,0 26
21026 38 x 2 x 0,14 16,4 162,0 350,0 26
21027 40 x 2 x 0,14 16,8 177,0 370,0 26
21028 44 x 2 x 0,14 17,0 181,0 390,0 26
21029 46 x 2 x 0,14 17,2 195,0 430,0 26
21030 50 x 2 x 0,14 18,0 202,0 440,0 26
21031 52 x 2 x 0,14 18,2 206,0 460,0 26
21032 55 x 2 x 0,14 18,7 210,0 480,0 26
21033 1 x 2 x 0,25 4,4 15,0 45,0 24
21034 2 x 2 x 0,25 5,8 28,0 53,0 24
21035 3 x 2 x 0,25 6,4 32,0 65,0 24
21036 4 x 2 x 0,25 7,2 38,0 80,0 24
21037 5 x 2 x 0,25 8,1 55,0 98,0 24
21038 6 x 2 x 0,25 8,8 65,0 114,0 24
21039 7 x 2 x 0,25 8,8 70,0 121,0 24
21040 8 x 2 x 0,25 9,4 75,0 129,0 24
21041 10 x 2 x 0,25 10,8 110,0 157,0 24
21042 12 x 2 x 0,25 11,4 117,0 189,0 24
21043 14 x 2 x 0,25 12,0 122,0 213,0 24
21044 15 x 2 x 0,25 12,5 134,0 225,0 24
21045 16 x 2 x 0,25 12,6 143,0 237,0 24
21046 18 x 2 x 0,25 13,3 148,0 248,0 24
21047 20 x 2 x 0,25 14,0 162,0 275,0 24
21048 22 x 2 x 0,25 15,0 172,0 303,0 24
21049 24 x 2 x 0,25 15,7 223,0 330,0 24
21050 25 x 2 x 0,25 15,8 233,0 343,0 24
21051 26 x 2 x 0,25 15,9 238,0 345,0 24
21052 27 x 2 x 0,25 16,0 244,0 350,0 24
21053 28 x 2 x 0,25 16,6 249,0 360,0 24
21054 30 x 2 x 0,25 17,0 254,0 375,0 24
21055 32 x 2 x 0,25 17,6 290,0 400,0 24
21056 34 x 2 x 0,25 17,9 312,0 410,0 24
21057 36 x 2 x 0,25 18,6 322,0 420,0 24
21058 38 x 2 x 0,25 19,0 339,0 450,0 24
21059 40 x 2 x 0,25 19,7 349,0 485,0 24
21060 44 x 2 x 0,25 20,7 359,0 500,0 24
21061 46 x 2 x 0,25 21,2 398,0 540,0 24
21062 50 x 2 x 0,25 22,0 403,0 550,0 24
21063 52 x 2 x 0,25 22,0 435,0 580,0 24
21064 55 x 2 x 0,25 22,5 464,0 630,0 24
19970 1 x 2 x 0,34 5,0 16,0 58,0 22
19971 2 x 2 x 0,34 6,7 36,9 65,0 22
19972 3 x 2 x 0,34 7,2 44,9 78,0 22
19973 4 x 2 x 0,34 8,1 54,2 90,0 22
19974 5 x 2 x 0,34 9,0 63,5 110,0 22
19975 6 x 2 x 0,34 10,0 73,1 130,0 22
19976 7 x 2 x 0,34 10,0 79,5 145,0 22
19977 8 x 2 x 0,34 10,8 88,4 150,0 22
19978 9 x 2 x 0,34 11,1 99,3 170,0 22
19979 10 x 2 x 0,34 12,2 106,9 190,0 22
19980 12 x 2 x 0,34 12,9 122,1 220,0 22
19981 14 x 2 x 0,34 13,9 138,2 245,0 22
19982 16 x 2 x 0,34 14,5 154,2 250,0 22
19983 18 x 2 x 0,34 15,3 197,9 275,0 22
19984 21 x 2 x 0,34 16,3 214,4 300,0 22
19985 25 x 2 x 0,34 17,6 238,5 400,0 22
19986 27 x 2 x 0,34 18,0 262,5 410,0 22
19987 30 x 2 x 0,34 19,5 286,6 440,0 22
19988 34 x 2 x 0,34 20,8 310,1 510,0 22
19989 37 x 2 x 0,34 21,4 368,7 550,0 22
19990 40 x 2 x 0,34 22,1 392,6 590,0 22
19991 44 x 2 x 0,34 23,0 424,3 600,0 22
19992 50 x 2 x 0,34 24,5 455,9 650,0 22
19993 52 x 2 x 0,34 24,7 487,6 680,0 22
19994 56 x 2 x 0,34 26,1 518,5 750,0 22
19995 61 x 2 x 0,34 27,5 557,2 840,0 22
17047 1 x 2 x 0,5 5,3 24,0 60,0 20
17001 2 x 2 x 0,5 7,6 54,0 89,0 20
17002 3 x 2 x 0,5 8,2 70,0 104,0 20
17003 4 x 2 x 0,5 9,0 91,0 126,0 20
17004 5 x 2 x 0,5 9,9 105,0 148,0 20
17005 6 x 2 x 0,5 10,9 120,0 171,0 20
17006 8 x 2 x 0,5 12,0 144,0 290,0 20
17007 10 x 2 x 0,5 13,8 178,0 320,0 20
17008 12 x 2 x 0,5 14,5 199,0 361,0 20
17009 16 x 2 x 0,5 16,1 254,0 421,0 20
17010 20 x 2 x 0,5 18,4 302,0 580,0 20
17011 25 x 2 x 0,5 21,0 344,0 740,0 20
17048 1 x 2 x 0,75 6,0 28,0 71,0 19
17012 2 x 2 x 0,75 8,7 58,0 105,0 19
17013 3 x 2 x 0,75 9,3 84,0 128,0 19
17014 4 x 2 x 0,75 10,6 108,0 156,0 19
17015 5 x 2 x 0,75 11,7 126,0 189,0 19
17016 6 x 2 x 0,75 12,7 146,0 216,0 19
17017 8 x 2 x 0,75 14,4 180,0 309,0 19
17018 10 x 2 x 0,75 15,6 220,0 355,0 19
17019 12 x 2 x 0,75 16,8 261,0 405,0 19
17020 16 x 2 x 0,75 18,7 328,0 565,0 19
17021 20 x 2 x 0,75 20,9 392,0 700,0 19
17022 25 x 2 x 0,75 23,2 470,0 950,0 19
17049 1 x 2 x 1 6,3 46,0 75,0 18
17050 2 x 2 x 1 9,1 82,0 116,0 18
17051 3 x 2 x 1 9,8 103,0 140,0 18
17052 4 x 2 x 1 10,9 132,0 191,0 18
17053 1 x 2 x 1,5 7,2 63,0 84,0 16
17054 2 x 2 x 1,5 10,7 111,0 122,0 16
17055 3 x 2 x 1,5 11,4 136,0 194,0 16
17056 4 x 2 x 1,5 12,8 172,0 240,0 16
