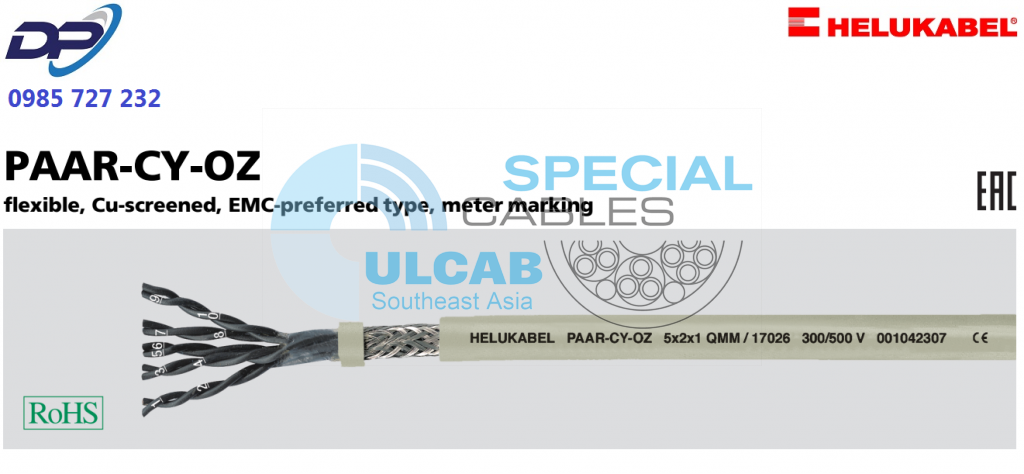

PAAR-CY-OZ

flexible, Cu-screened, EMC-preferred type, meter marking

Technical data

• Special-PVC control cable adapted
  to DIN VDE 0812, 0814
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage U₀/U 300/500 V
• Test voltage
  core/core 1200 V
  core/screen 800 V
• Breakdown voltage min. 2400 V
• Insulation resistance
  min. 20 MOhm x km
• Mutual capacitance
  core/core approx. 150 nF/km
  core/screen approx. 270 nF/km
• Inductance approx. 0,67 mH/km
• Coupling resistance
  max. 250 Ohm/km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• Cores stranded in pairs with
  optimal lay-length
• Pairs stranded in layers with
  optimal lay-length
• Foil wrapping
• Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath of special PVC
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour grey (RAL 7032)
• with meter marking

Properties

• Extensively oil resistant, oil-/ chemical
  Resistance – see table Technical
  Informations
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)

Note

• x = without green-yellow conductor (OZ)
• Also available in other dimensions and
  in other sheath colours.
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².

Application

PAAR-CY is ideal for use as a connecting cable for all areas involving measuring, control, regulation and signal transfer as well as for use in all fields of data and impulse transmission. Especially suited for all areas of high electromagnetic activity, e. g. disturbances through parallel circuits.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

Downloads

Data sheet
