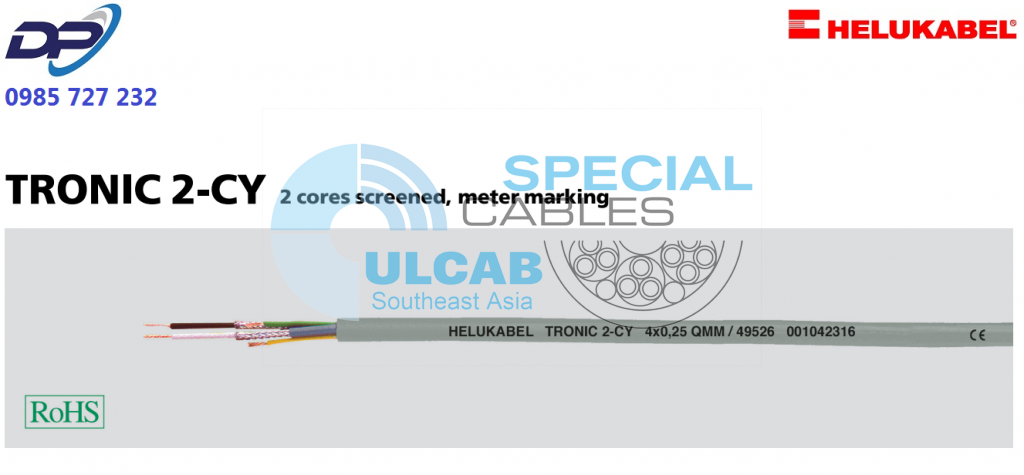

Cáp Điều Khiển Helukabel ( TRONIC 2-CY ) | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất

Technical data

• Special-PVC core insulation
  adapted to DIN VDE 0812
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Conductor resistance
  0,14 mm²  max. 138 Ohm/km
  0,25 mm²  max. 77,8 Ohm/km
  0,5 mm²  max. 37,8 Ohm/km
• Operating peak voltage
  (not for heavy current installation purposes)
  0,14 mm²  max. 350 V
  0,25 mm²  max. 500 V
  0,5 mm²  max. 500 V
• Test voltage  (50 Hz eff)
  0,14 mm²  800 V
  0,25 mm²  800 V
  0,5 mm²  1200 V
• Breakdown voltage
  0,14 mm²  1600 V
  0,25 mm²  1600 V
  0,5 mm²  2400 V
• Insulation resistance
  min. 200 MOhm x km
• Mutual capacitance
  core/core  0,14 mm²  app. 70 pF/m
  core/core  0,25 mm²  app. 80 pF/m
  core/core  0,5 mm²  app. 80 pF/m
  core/screen  0,14 mm²  app. 270 pF/m
  core/screen  0,25 mm²  app. 350 pF/m
  core/screen  0,5 mm²  app. 400 pF/m
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, from 0,5 mm² to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
  0,14 and 0,25 mm² to DIN VDE 0812
• Conductor construction:
  0,14 mm² = 18×0,1 mm
  0,25 mm² = 14×0,15 mm
  0,5 mm² = 16×0,2 mm
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification to DIN 47100
• White and brown cores each individually
  screened
• Copper braided screen,
  approx. 85% coverage
• Cores stranded in layers with
  optimal lay length
• Contact protection, PVC sheath
• Outer sheath of special PVC
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: grey (RAL 7001)
• With meter marking

Properties

• Extensively oil resistant,
  oil-/chemical resistance
  see “Technical Informations”
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2

Note

• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

TRONIC 2-CY is used in all areas of measuring and control technology requiring only 2 impulse transfer cores. This cable type is used mainly in the machinery and industrial equipment fields as well as in the steel industry and in electronics.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
