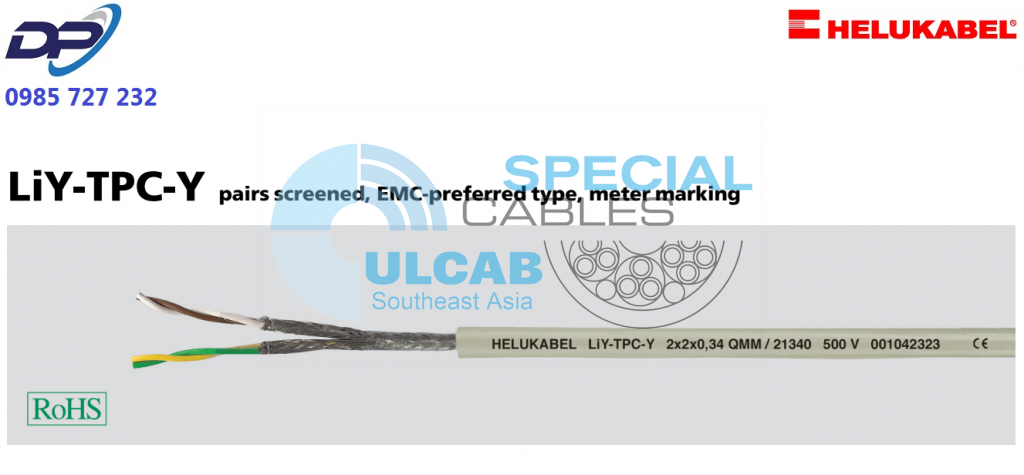

LiY-TPC-Y |
pairs screened, meter marking, EMC-preferred type |
Technical data
- Pair screened special PVC data
transmissionn cable adapted
to DIN VDE 0812 and 0814 - Temperature range
flexing -5°C to +70°C
fixed installation -30°C to +70°C - Operating peak voltage 500 V
(not for heavy current installation purposes) - Test voltage
1200 V - Breakdown voltage
min. 2400 V - Insulation resistance
min. 20 MOhm x km - Radiation resistance
up to 80×106 cJ/kg (up to 80 Mrad) - Coupling resistance
max. 250 Ohm/km - Minimum bending radius
flexing 12x cable Ø
fixed installation 7,5x cable Ø
Cable structure
- Bare copper conductor, from 0,5 mm² to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5
0,25 mm2 and 0,34 mm² to DIN VDE 0812 - Conductor construction:
0,25 mm² = 14×0,15 mm
0,34 mm² = 7×0,25 mm - Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3 - Core identification (pair) to DIN 47100
- Cores stranded in pairs with
optimal lay length - Each pair with foil wrapping
- Pairs individually screened, tinned copper
coverage approx. 85% - All pairs-C stranded in layers with
optimal lay length - Foil wrapping
- Outer sheath of special PVC
compound type TM2 to
DIN VDE 0207-363-4-1/DIN EN 50363-4-1 - Sheath colour: grey (RAL 7032)
- With meter marking
Properties
- Extensively oil resistant,
oil-/chemical resistance
see “Technical Informations” - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2
Note
- AWG sizes are approximate equivalent
values. The actual cross section is in mm².
Application
This pair screened table type offers total interference-free data transfer and is ideal for use as a signal and control cable in combination with computers and external units. The screening properties also make this cable type well suited for use as a connecting cable in sound studio equipment, measuring and control sectors as well as proving a highly reliable cable for process-control and security systems. The copper screening assures a disturbance-free data and signal transmission for measuring and control systems.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
| Part no. | No.pairs x cross-sec. mm² |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|
| 21323 | 2 x 2 x 0,25 | 6,2 | 32,0 | 60,0 | 24 |
| 21324 | 3 x 2 x 0,25 | 6,8 | 48,0 | 80,0 | 24 |
| 21325 | 4 x 2 x 0,25 | 7,4 | 64,0 | 112,0 | 24 |
| 21326 | 5 x 2 x 0,25 | 8,7 | 80,0 | 142,0 | 24 |
| 21327 | 6 x 2 x 0,25 | 9,1 | 96,0 | 159,0 | 24 |
| 21328 | 7 x 2 x 0,25 | 9,6 | 112,0 | 177,0 | 24 |
| 21329 | 10 x 2 x 0,25 | 11,7 | 160,0 | 250,0 | 24 |
| 21340 | 2 x 2 x 0,34 | 6,7 | 42,0 | 78,0 | 22 |
| 21341 | 3 x 2 x 0,34 | 7,5 | 63,0 | 104,0 | 22 |
| 21342 | 4 x 2 x 0,34 | 8,1 | 84,0 | 153,0 | 22 |
| 21343 | 5 x 2 x 0,34 | 9,5 | 105,0 | 189,0 | 22 |
| 21344 | 7 x 2 x 0,34 | 10,1 | 147,0 | 238,0 | 22 |
| 21345 | 10 x 2 x 0,34 | 13,4 | 210,0 | 322,0 | 22 |
| 21355 | 2 x 2 x 0,5 | 8,3 | 58,0 | 96,0 | 20 |
| 21356 | 3 x 2 x 0,5 | 9,2 | 87,0 | 136,0 | 20 |
| 21357 | 4 x 2 x 0,5 | 10,2 | 116,0 | 187,0 | 20 |
| 21370 | 2 x 2 x 0,75 | 9,2 | 76,0 | 132,0 | 19 |
| 21371 | 3 x 2 x 0,75 | 10,1 | 114,0 | 178,0 | 19 |
| 21372 | 4 x 2 x 0,75 | 11,2 | 152,0 | 243,0 | 19 |
| 21373 | 5 x 2 x 0,75 | 12,7 | 190,0 | 312,0 | 19 |
| 21385 | 2 x 2 x 1 | 9,6 | 86,0 | 142,0 | 18 |
| 21386 | 3 x 2 x 1 | 10,8 | 130,0 | 189,0 | 18 |
| 21387 | 4 x 2 x 1 | 11,9 | 149,0 | 275,0 | 18 |
