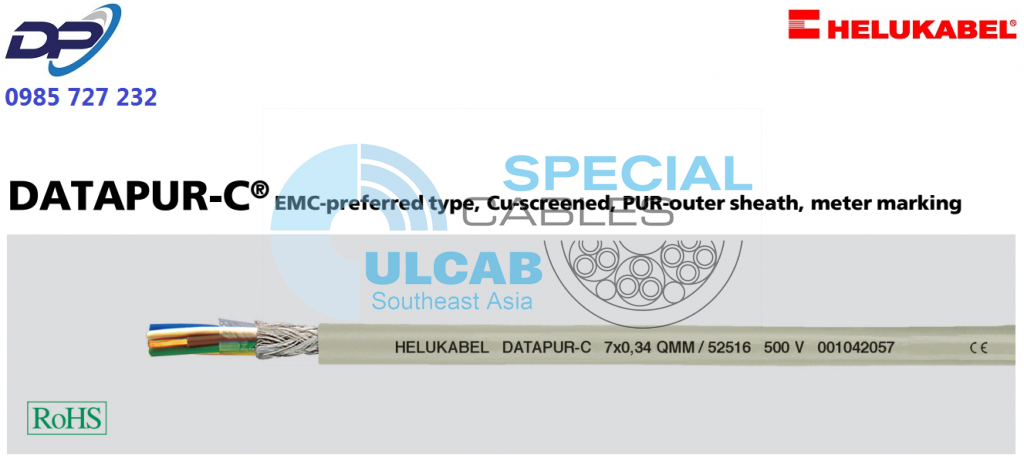

Cáp Điều Khiển Helukabel ( DATAPUR-C® ) | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất

Technical data

• Special -PVC/PUR control cable
  adapted to DIN VDE 0285-525-1 /
  DIN EN 50525-1
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Operating peak voltage
  (not for heavy current installation purposes)
  0,14 mm² 350 V
  as of 0,25 mm² 500 V
• Test voltage
  0,14 mm² 800 V
  as of 0,25 mm² 1200 V
• Insulation resistance
  min. 20 MOhm x km
• Mutual capacitance core/core:
  up to 0,34 mm² approx. 120 nF/km
  as of 0,5 mm² approx. 160 nF/km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)
• Coupling resistance
  max. 250 Ohm/km

Cable structure

• Bare copper conductor, from 0,5 mm² to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Conductor construction:
  0,34 mm² = 7 x 0,25 mm
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Core identification to DIN 471000
• Cores stranded in layers with
  optimal lay-length
• Foil wrapping
• Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath of PUR
  compound type TMPU to
  DIN VDE 0207-363-10-2 /
  DIN EN 50363-10-2
• Sheath colour grey (RAL 7032)
• with meter marking

Properties

• Chemical resistance: good against acids,
  lyes, hydraulic liquids
• High flexibility at low temperature
• High abrasion resistance
• Resistant to
  Oils and fats
  Non-alcoholic fuels and kerosene
  Atmospheric influences
  UV-radiation
  Oxygene and ozone
  Microbes and rotting
  Sea and waste water
  Vibrations
• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Note

• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².

Application

The specific construction of DATAPUR-C^® makes this cable type ideal for use in all types of computer systems, office machinery, signal and control units. DATAPUR-C^® proves its efficiency but also in the acoustic field in telecommunications, paging and intercom systems but also in the cradle of technology and in the measuring and control technology.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
