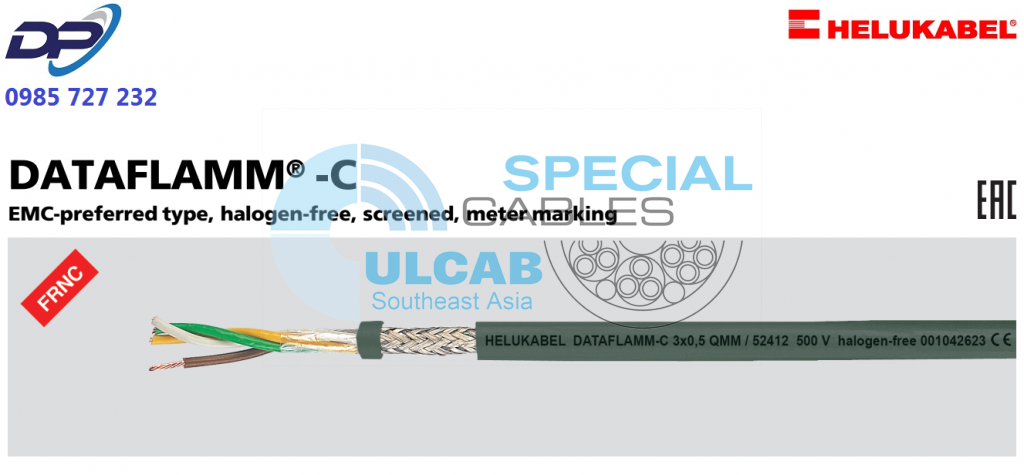

DATAFLAMM^®-C

EMC-preferred type, halogen-free, screened, meter marking

Technical data

• Halogen-free special data cable
• Temperature range
  flexing +5°C to +70°C
  fixed installation -40°C to +70°C
• Operating peak voltage
  (not for heavy current installation purposes)
  0,14 mm² = 350 V
  ≥ 0,25 mm² = 500 V
• Test voltage
  0,14 mm² = 800 V
  ≥ 0,25 mm² = 1200 V
• Insulation resistance
  min. 2 GOhm x km
• Capacitance
  core/core < 70 nF/km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Coupling resistance
  max. 250 Ohm/km
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)

Cable structure

• Bare copper conductor, to
  DIN VDE 0812, fine wire
• Conductor construction:
  0,34 mm² = 7 x 0,25 mm
• Core insulation of PE
  compound type LD/MD to
  DIN VDE 0819-103 / DIN EN 50290-2-23
• Core identification to DIN 47100
• Cores stranded in layers with
  optimal lay length
• Foil wrapping
• Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath
  compound type HM2 to
  DIN VDE 0207 part 24
• Sheath colour: grey (RAL 7005)
• With meter marking

Properties

• PE-insulated cores, compared with
  PVC-insulated cores, assure a remarkable
  and more favourable capacitance values

Tests

• Halogen-free acc. to
  DIN VDE 0482-754-1,
  DIN EN 60754-1, IEC 60754-1
  (previously DIN VDE 0482-267-2-1)
• Corrosiveness of combustion gases
  acc. to DIN VDE 0482-754-2,
  DIN EN 60754-2, IEC 60754-2
  (previously DIN VDE 0482-267-2-2)
• Halogen-free sheath compound,
  self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1-2

Note

• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Unscreened analogue type:
  DATAFLAMM^®

Application

As a connecting and interconnecting cable for signaling, measuring, control and intercom purposes for the use in paging and intercom systems, clock systems, weighing equipment and office machines. The cables can be laid on or under plaster, in dry, damp and wet rooms as well as masonry and concrete. Areas of use are telecommunications and information processing systems in public buildings, laboratories, warehouses and other buildings in which the release of halogens in the event of fire must be avoided. Due to the screening without interference against foreign encoder or high-frequency signals.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
