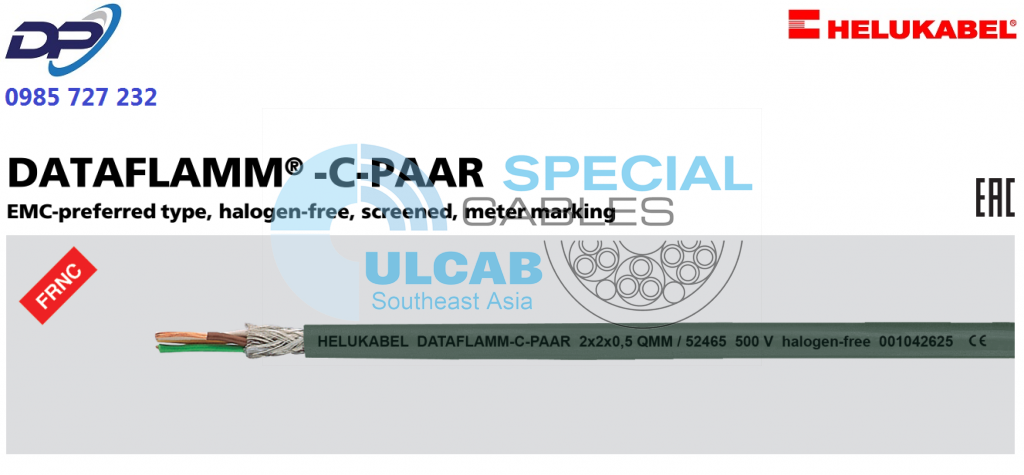

DATAFLAMM®-C-PAAR

EMC-preferred type, halogen-free, screened, meter marking

Logo Image

Technical data

  • Halogen-free special data cable
  • Temperature range
    flexing +5°C to +70°C
    fixed installation -40°C to +70°C
  • Operating peak voltage
    (not for heavy current installation purposes)
    0,14 mm² = 350 V
    ≥ 0,25 mm² = 500 V
  • Test voltage
    0,14 mm² = 800 V
    ≥ 0,25 mm² = 1200 V
  • Insulation resistance
    min. 2 GOhm x km
  • Capacitance
    core/core < 70 nF/km
  • Minimum bending radius
    flexing 7,5x cable Ø
    fixed installation 4x cable Ø
  • Coupling resistance
    max. 250 Ohm/km
  • Radiation resistance
    up to 100×106 cJ/kg (up to 100 Mrad)

Cable structure

  • Bare copper conductor, fine wire
    to DIN VDE 0812
  • Conductor construction:
    0,34 mm² = 7×0,25 mm
  • Core insulation of PE
    compound type LD/MD to
    DIN VDE 0819-103 / DIN EN 50290-2-23
  • Core identification to DIN 47100
  • Cores stranded in pairs with
    optimal lay length
  • Pairs stranded in layers with
    optimal lay length
  • Foil wrapping
  • Tinned copper braided screen,
    approx. 85% coverage
  • Outer sheath
    compound type HM2 to
    DIN VDE 0207 part 24
  • Sheath colour: grey (RAL 7005)
  • With meter marking

Properties

  • PE-insulated cores, compared with
    PVC-insulated cores, assure a remarkable
    and more favourable capacitance values

Tests

  • Halogen-free acc. to
    DIN VDE 0482-754-1,
    DIN EN 60754-1, IEC 60754-1
    (previously DIN VDE 0482-267-2-1)
  • Corrosiveness of combustion gases
    acc. to DIN VDE 0482-754-2,
    DIN EN 60754-2, IEC 60754-2
    (previously DIN VDE 0482-267-2-2)
  • Halogen-free sheath compound,
    self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2,
    DIN EN 60332-1-2, IEC 60332-1-2
    (equivalent DIN VDE 0472 part 804
    test method B)

Note

  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².

Application

Are used as connecting cable for signal, measuring, control, call-announcing and two-way intercom speaking systems, clock installations, electronic weighing equipment and electrical apparatus for office requirements. The cables are suitable for installation in dry, damp and wet environments as well as in masonry and concrete. These cables are generally installed in telecommunication apparatus and data transmission systems in public buildings, laboratories, trading centres where the freedom from halogen in case of fire and the flame propagation must be avoided. With screened braiding offers interference-free signal transfer. The halogen-free thermoplastic sheath produce neither corrosive nor toxic gases.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Part no. No.pairs x
cross-sec.
mm²
Outer Ø

approx. mm

Cop.
weight

kg / km

Weight

approx. kg / km

AWG-No.
52435 2 x 2 x 0,14 4,7 22,5 37,0 26
52436 3 x 2 x 0,14 5,1 25,6 47,0 26
52437 4 x 2 x 0,14 5,8 39,1 66,0 26
52438 5 x 2 x 0,14 6,3 45,3 76,0 26
52439 6 x 2 x 0,14 6,8 51,4 87,0 26
52440 7 x 2 x 0,14 6,8 54,2 94,0 26
52441 10 x 2 x 0,14 8,9 68,7 119,0 26
52442 12 x 2 x 0,14 9,2 78,3 135,0 26
52443 15 x 2 x 0,14 10,0 79,9 157,0 26
52444 18 x 2 x 0,14 11,0 99,2 190,0 26
52445 2 x 2 x 0,25 5,7 27,1 44,0 24
52446 3 x 2 x 0,25 6,2 42,4 66,0 24
52447 4 x 2 x 0,25 7,0 54,5 81,0 24
52448 5 x 2 x 0,25 7,9 59,8 98,0 24
52449 6 x 2 x 0,25 8,6 64,6 116,0 24
52450 7 x 2 x 0,25 8,6 71,3 120,0 24
52451 10 x 2 x 0,25 10,6 93,3 153,0 24
52452 12 x 2 x 0,25 11,4 108,0 175,0 24
52453 15 x 2 x 0,25 12,5 123,4 213,0 24
52454 18 x 2 x 0,25 13,1 139,7 248,0 24
52455 2 x 2 x 0,34 6,5 43,3 68,0 22
52456 3 x 2 x 0,34 7,2 55,0 92,0 22
52457 4 x 2 x 0,34 7,9 64,0 110,0 22
52458 5 x 2 x 0,34 8,8 74,5 128,0 22
52459 6 x 2 x 0,34 9,8 85,0 147,0 22
52460 7 x 2 x 0,34 9,8 89,8 154,0 22
52461 10 x 2 x 0,34 12,2 119,8 209,0 22
52462 12 x 2 x 0,34 12,9 139,4 245,0 22
52463 15 x 2 x 0,34 14,4 160,0 279,0 22
52464 18 x 2 x 0,34 15,3 207,2 363,0 22
52465 2 x 2 x 0,5 7,4 50,2 76,0 20
52466 3 x 2 x 0,5 8,0 64,5 107,0 20
52467 4 x 2 x 0,5 9,0 77,2 134,0 20
52468 5 x 2 x 0,5 9,9 96,2 150,0 20
52469 6 x 2 x 0,5 10,9 107,4 176,0 20
52470 7 x 2 x 0,5 10,9 117,3 185,0 20
52471 10 x 2 x 0,5 13,8 158,2 275,0 20
52472 12 x 2 x 0,5 14,5 177,8 330,0 20
52473 15 x 2 x 0,5 15,8 236,4 380,0 20
52474 18 x 2 x 0,5 17,1 265,4 450,0 20
52475 2 x 2 x 0,75 8,5 64,6 105,0 19
52476 3 x 2 x 0,75 9,3 81,7 137,0 19
52477 4 x 2 x 0,75 10,6 107,6 166,0 19
52478 5 x 2 x 0,75 11,7 126,1 200,0 19
52479 6 x 2 x 0,75 12,7 138,6 236,0 19
52480 7 x 2 x 0,75 12,7 153,7 255,0 19
52481 10 x 2 x 0,75 15,6 220,0 363,0 19
52482 12 x 2 x 0,75 16,8 265,5 434,0 19
52483 15 x 2 x 0,75 18,6 327,6 500,0 19
52484 18 x 2 x 0,75 20,5 374,6 580,0 19
