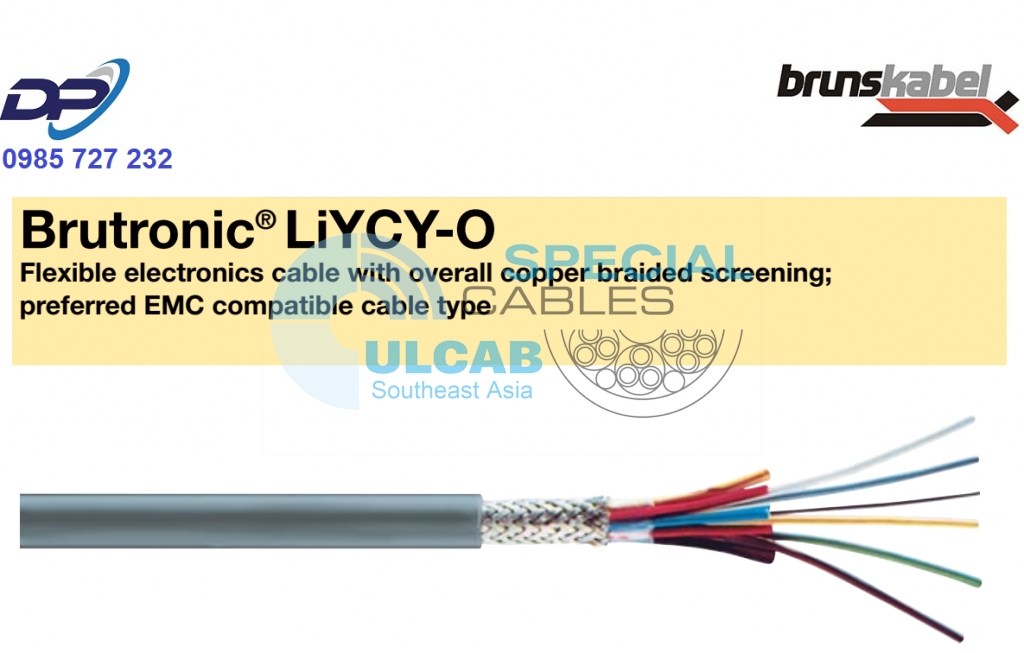

Brutronic®LiYCY-O
Flexible electronics cable with overall copper braided screening;
preferred EMC compatible cable type

Applications
Brutronic LiYCY cables are used as connecting cables in control, measuring and signalling technology as well as in data processing and office technology. Ideal for use in connection with mobile equipment due to high flexibility and reduced outer diameter. These cables with copper screening are ideal for interference-free data and signal transmission in measuring and control technology in EMI environments.

Design
Stranded bare Cu conductor, fine wire
Strand structure to VDE 0295
class 5 / IEC 60228 class 5
(exception 0.34 mm
2 = stranded
bare Cu conductor 7 x 0.25 mm)
Core insulation: special PVC
Core identification:
0.14 to 0.75 mm
2 – to
DIN 47100, without colour repetition
1.0 to 10.0 mm
2 – black cores
with printed consecutive number
coding
Cores twisted in layers,
with optimal lay lengths
Film lapping
Braided screening made of tinned
copper wires
Outer sheath: special PVC
Sheath colour: RAL 7001 grey

Electrical and technical specifications
Peak operating voltage: 300 V
2.5 mm
2 and over: 500 V
(Not approved for use as mains power
cable )

Test Voltage:    1200V

2.5mm2 and over :    2000V

Insulation resistance at +20° C: 20 MOhm x km
Bending radius: 15 x cable diameter
Temperature range:
flexible – 5° C to +70° C
stationary –30° C to +80° C
Flame retardant to IEC 60332-1
