Cáp LAPP KABEL UNITRONIC® ST 2092

Data communication systems
Low frequency data transmission cables
Metal foil screened pairs

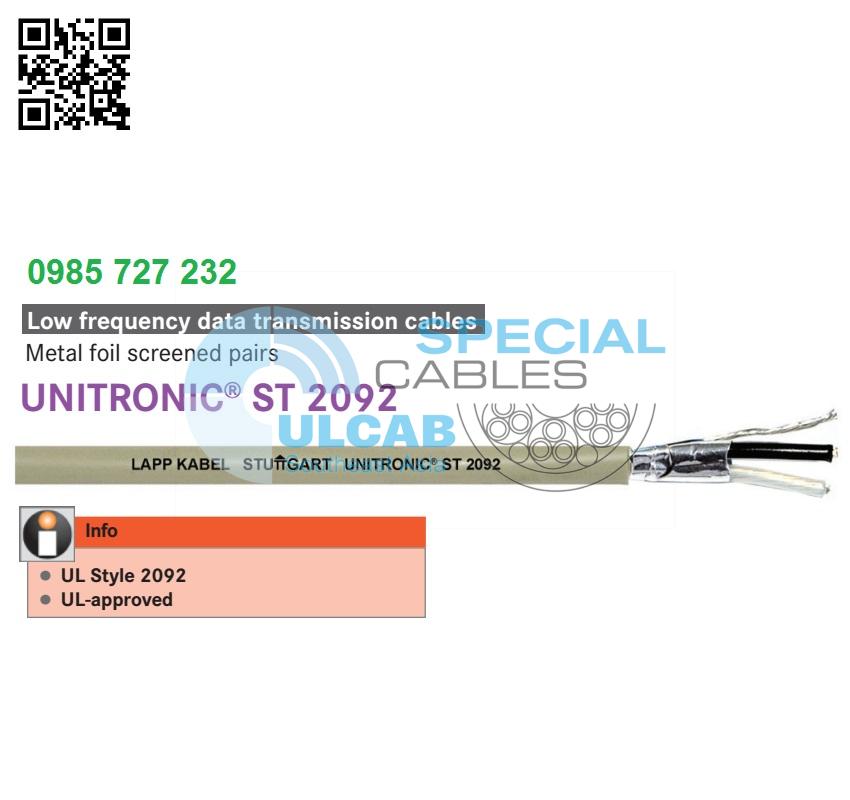

LAPPKABEL UNITRONIC® ST 2092

• product information ( PDF )

■ Application range

• Internal wiring for audio, transmission meas urement and control signals with minimum noise

• For static laying in dry and damp environment

■ Product features

• 100% screen coverage, offers optimum protection against external interference at medium and high frequencies

• Ideal solution where flexibility and a high degree of screening is required

• Flame retardant in acc. to IEC 60332-1-2

■ Approvals (Norm references)

■ Design

• Multi-wire strands of tinned copper wires

• PE core insulation

• Cores twisted together

• Aluminium foil screening

• Tinned copper drain wire

• PVC outer sheath

• Colour: pebble grey, RAL 7032

Technical data

Core identification code
black, natural
Mutual capacitance
C/C: approx. 45 pF/m (24 AWG)
C/C: approx. 79 pF/m (22 AWG)
C/C: approx. 97 pF/m (18 AWG)
C/C: approx. 45 pF/m (16 AWG)
C/S: approx. 107 pF/m (24 AWG)
C/S: approx. 154 pF/m (22 AWG)
C/S: approx. 145 pF/m (18 AWG)
C/S: approx. 168 pF/m (16 AWG)
Peak operating voltage
300 V (not for power applications)
Specific insulation resistance
> 2 GOhm x km
Inductivity
approx. 0.65 mH/km
Minimum bending radius
10 x cable diameter
Test voltage
1000 V
Temperature range
-30°C to +60°C
Characteristic impedance
65 Ohm
