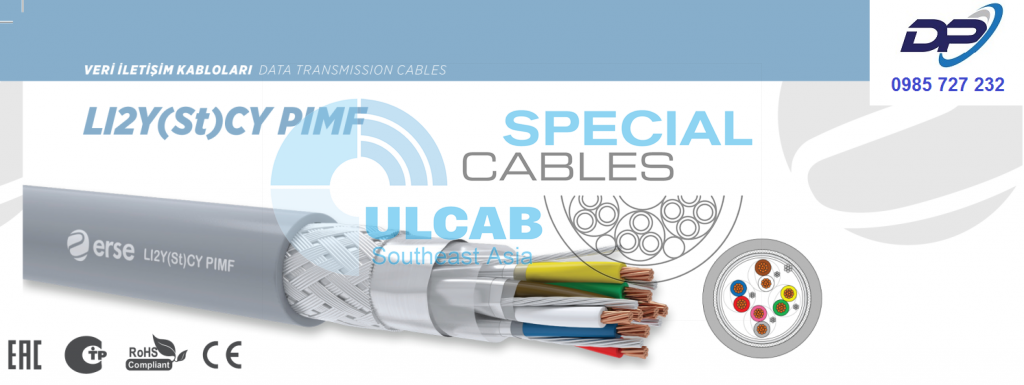

Cáp Tín Hiệu RS485 ERSE LI2Y(St)CY PIMF 4x2x0.34mm2 | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất

Cáp Tín Hiệu RS485 ERSE LI2Y(St)CY PIMF 4x2x0.34mm2 | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất

  • In places where electro-magnetic interference and influence exists
  • Instrumentation and Control Engineering
  • Industrial Electronics
  • Computers and Office Machines
  • Automation Systems
  • High Transmission Rates In Data Processing Systems

NOTES

  • With their flexible design they can be easily used in narrow spaces.
  • These cables are not suitable for outdoor installations.
  • *EMC: Electromagnetic compatibility
Conductor IEC 60228; DIN VDE 0295; EN 60228 Class 2 or Class 5
Electrolytic Bare or Tinned Copper
Insulation EN 50290-2-23 PE Compound
Colour Code DIN 47100
Individual Screen Pes Tape + Tinned Copper Drain Wire + Pes Tape
Stranding Screened pairs in layers
Wrapping Pes Bant
Screen Tinned Copper Drain Wire + Al-Pes Tape + Tinned Copper Braid
Sheath EN 50290-2-22 PVC Compound
Sheath Colour RAL 7001 Grey
CONDUCTOR RESISTANCE INSULATION RESISTANCE
(500 V)
MUTUAL CAPACITY
(MAX)
IMPEDANCE
(APPROX.)
INDUCTANCE
(APPROX.)
CURRENT CARRYING
CAPACITY (25°C)
mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5
Ω/km
79
56
39
26
19,5
13,3
7,98
5000 MΩXKm mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5
pF/m
70
80
90
90
90
100
120
78Ω 0,67mH/km mm²
0,22
0,34
0,50
0,75
1,0
1,5
2,5
A
2,5
4,5
6,0
13
16
20
25
OPERATING VOLTAGE TEST VOLTAGE BENDING RADIUS TEMPERATURE RANGE FLAME RETARDANT TEST
0,22/0,34mm2 = 250V
>0,50mm2 = 300/500V
0,22/0,34mm2 = 1000V
0,50mm2 = 2000V
10x Cable Ø -30ºC+70ºC IEC 60332-1-2
VDE 0482-322-1-2
EN 60332-1-2
