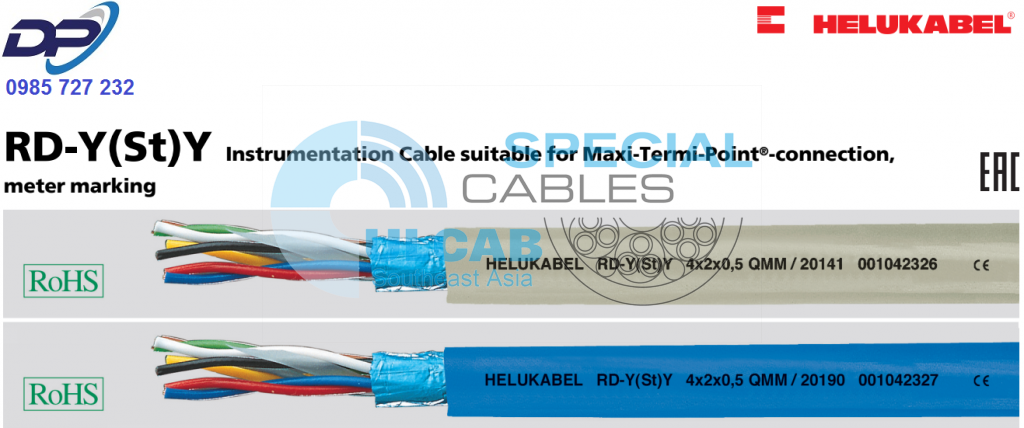

RD-Y(St)Y

Instrumentation Cable suitable for Maxi-Term-Point^®-connection, meter marking

Technical data

• Special -PVC data transmission cable
  adapted to DIN VDE 0815
• Conductor resistance (loop)
  max. 73.6 Ohm/km
• Temperature range
  flexing -5°C to +50°C
  fixed installation -40°C to +70°C
• Operating peak voltage max. 600 V
  (not for heavy current installation purposes)
• Test voltage
  core/core 2000 V
  core/screen 2000 V
• Insulation resistance
  core/core min. 100 MOhm x km
  core/screen min. 100 MOhm x km
• Mutual capacitance
  at 800 Hz max. 100 nF/km
  (this value may be exceeded
  by 20% with a make-up to 4 pairs)
• Impedance
  at 1 kHz approx. 370 Ohm
  at 10 kHz approx. 130 Ohm
• Capacity unbalance
  at 800 Hz max. 200 pF/100 m
  (20% of the values, but one
  value up to 400 pF is allowed)
• Line attenuation
  at 1 kHz approx. 1,2 dB/km
  at 10 kHz approx. 3,0 dB/km
• Cross-talk attenuation at 10 kHz
  and cable length of 500 m min. 60 dB
• Minimum bending radius
  7,5x cable Ø

Cable structure

• Bare copper conductor, multi-wire
• Conductor construction:
  0,5 mm² = 7×0,3 mm
• Core insualtion of PVC (Semi-Rigid-PVC)
• Core identification coloured
  pair-no.1: a-core = BU; b-core = RD
  pair-no.2: a-core = GY; b-core = YE
  pair-no.3: a-core = GN; b-core = BN
  pair-no.4: a-core = WH; b-core = BK
• Cores stranded in pairs
  (approx. 20 pitch/m ≙ 50 mm)
• 4 pairs stranded to a unit
  (unit labelled with numbers
  printed plastic helix)
• Units stranded in concentric layers
• Electrostatic screen of plastic coated
  aluminium foil and drain-wire tinned,
  0,5 mm² = 7×0,3 mm
• Outer sheath of PVC
• Sheath colour grey (RAL 7032)
  or blue (RAL 5015)
• with meter marking

Properties

• Twisted pairs with short different
  lay lengths within a bundle results
  to good crosstalk attentuation values
• The static screen protects the
  transmission circuits against outer
  electrical interferences
• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)

Note

• Cop.weight including drain-wire.
• Also available halogen-free type
  RD-H(St)H on request.
• Maxi-Termi-Point^® = registered trade
  mark AMP.
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².

Application

The data transmission cables RD-Y(St)Y are used in measurement and control technology such as in control rooms of industrial plants and power stations. The cables serves for transmission of analog and digital signals up to frequencies of approx. 10 kHz. These cables offer considerable advantages by using the quick and economical connecting possibilities in Maxi-Termi-Point^® technique. This solderless connecting technique is defined by a compression termination that employs a spring-clip for the connection of the cable to a square rigid post without pre-stripping. For this technique it is necessary to have an exact 7-core stranded conductor and a Semi-Rigid-PVC. Suitable for fixed installation only inside of buildings. With blue outer sheath suitable for intrinsic safe systems.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
