RE-2Y(St)Yv |

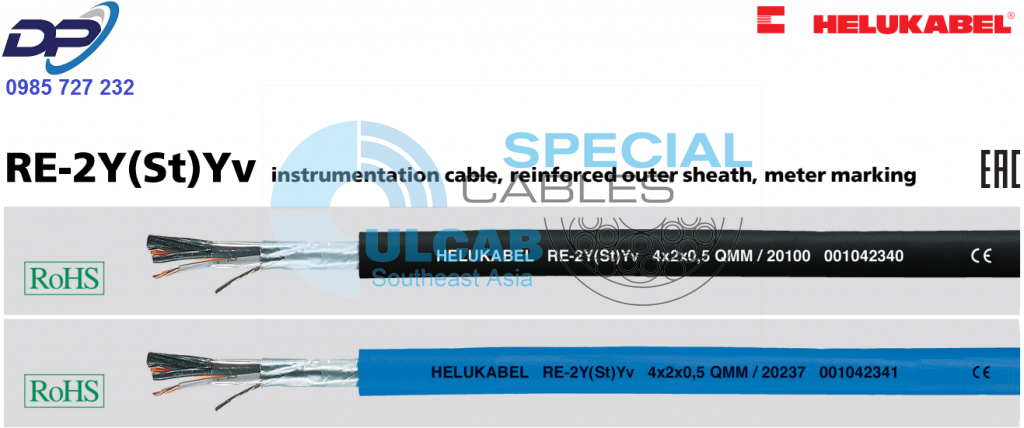

instrumentation cable, reinforced outer sheath, meter marking |
 |
Technical data
- Special core insulation of PE
- Conductor resistance
0,5 mm²: max. 39,2 Ohm/km
0,75 mm²: max. 24,6 Ohm/km
1,3 mm²: max. 14,2 Ohm/km - Temperature range
flexing -5°C to +50°C
fixed installation -40°C to +70°C - Operating peak voltage max. 300 V
(not for heavy current installation purposes) - Test voltage
core/core 2000 V
core/screen 1000 V - Insulation resistance
min. 5 GOhm x km - Mutual capacitance at 800 Hz
core/core 0.5 mm² 60 pF/m
for 1 and 2 pairs 75 pF/m
core/core 0.75 mm² 65 pF/m
for 1 and 2 pairs 110 pF/m
core/core 1.3 mm² 75 pF/m
for 1 and 2 pairs 100 pF/m - Inductance max. 0,75 mH/km
- Cross-talk attenuation
at 60 kHz min. 0,88 dB/km - Minimum bending radius
7,5x cable Ø
Cable structure
- Bare copper conductor, multi wire
- Conductor construction:
0,5 mm² = 7×0,3 mm
0,75 mm² = 7×0,37 mm
1,3 mm² = 7×0,49 mm - Core insulation of PE
- Cores coloured
with number print 1/1, 2/2 etc.
pair: a-core = BK; b-core = WH
triple: a-core = BK; b-core = WH;
c-core = RD - Cores twisted to pairs with optimum pitch
- Pairs stranded in layer
- 1 communication core 0,5 mm², PE-insulated,
orange (for multicore version) - Foil wrapping
- Electrostatic screen (St) of plastics-coated
metal foil - Tinned drain-wire, 0,5 mm² = 7×0,3 mm
- Outer sheath of PVC, reinforced,
black (RAL 9005) or blue (RAL 5015) - With meter marking
- Wall-thickness acc. to
DIN VDE 0816-1, table 7, col. 1
Properties
- The electrostatic screen protect the
screened pairs against outer electrostatic
interference fields - Low level of line attenuations and low
mutual capacitances enable long
transmission distances and fast pulse
acceleration - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- Self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2
Note
- Cop.Weight including communication core
and drain-wire. - Control cable with blue outer sheath, see
Flexible Control Cables - With blue outer sheath for hazardous areas
to hazard type -i- for intrinsically safe
installation acc. to DIN EN 60079-14
section 12.2.2 (VDE 0165-1) - AWG sizes are approximate equivalent
values. The actual cross section is in mm².
Application
Instrumentation cables are used in data processing and process control. Instrumentation cables are suitable for fixed installations in damp locations, in open spaces and for underground laying.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
Data sheet
Certificate of compliance
| Part no. | No.pairs x cross-sec. mm² |
Sheath colour |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|
| 20099 | 1 x 2 x 0,5 | black | 7,5 | 15,0 | 74,0 | 20 |
| 20100 | 2 x 2 x 0,5 | black | 9,8 | 30,0 | 117,0 | 20 |
| 20101 | 4 x 2 x 0,5 | black | 11,3 | 50,0 | 140,0 | 20 |
| 20233 | 6 x 2 x 0,5 | black | 13,1 | 70,0 | 190,0 | 20 |
| 20102 | 8 x 2 x 0,5 | black | 14,6 | 90,0 | 215,0 | 20 |
| 20103 | 10 x 2 x 0,5 | black | 16,1 | 110,0 | 220,0 | 20 |
| 20104 | 12 x 2 x 0,5 | black | 16,4 | 130,0 | 280,0 | 20 |
| 20105 | 16 x 2 x 0,5 | black | 18,3 | 170,0 | 352,0 | 20 |
| 20106 | 20 x 2 x 0,5 | black | 19,2 | 210,0 | 385,0 | 20 |
| 20107 | 24 x 2 x 0,5 | black | 22,3 | 250,0 | 468,0 | 20 |
| 20108 | 36 x 2 x 0,5 | black | 24,5 | 370,0 | 656,0 | 20 |
| 20109 | 48 x 2 x 0,5 | black | 27,7 | 490,0 | 854,0 | 20 |
| 20149 | 1 x 2 x 0,75 | black | 7,9 | 20,0 | 74,0 | 19 |
| 20150 | 2 x 2 x 0,75 | black | 10,4 | 35,0 | 123,0 | 19 |
| 20151 | 4 x 2 x 0,75 | black | 11,9 | 65,0 | 164,0 | 19 |
| 20152 | 8 x 2 x 0,75 | black | 15,0 | 125,0 | 258,0 | 19 |
| 20153 | 10 x 2 x 0,75 | black | 17,0 | 154,0 | 305,0 | 19 |
| 20154 | 12 x 2 x 0,75 | black | 17,6 | 185,0 | 350,0 | 19 |
| 20155 | 16 x 2 x 0,75 | black | 19,5 | 245,0 | 445,0 | 19 |
| 20156 | 20 x 2 x 0,75 | black | 21,5 | 298,0 | 520,0 | 19 |
| 20157 | 24 x 2 x 0,75 | black | 24,0 | 365,0 | 620,0 | 19 |
| 20158 | 36 x 2 x 0,75 | black | 26,5 | 532,0 | 940,0 | 19 |
| 20159 | 48 x 2 x 0,75 | black | 30,3 | 708,0 | 1250,0 | 19 |
| 20125 | 1 x 2 x 1,3 | black | 8,7 | 31,0 | 102,0 | – |
| 20132 | 1 x 3 x 1,3 | black | 9,0 | 44,0 | 116,0 | – |
| 20126 | 2 x 2 x 1,3 | black | 11,5 | 62,0 | 161,0 | – |
| 20127 | 4 x 2 x 1,3 | black | 14,3 | 114,0 | 230,0 | – |
| 20234 | 6 x 2 x 1,3 | black | 16,0 | 168,0 | 310,0 | – |
| 20128 | 8 x 2 x 1,3 | black | 17,3 | 218,0 | 377,0 | – |
| 20129 | 12 x 2 x 1,3 | black | 20,5 | 322,0 | 515,0 | – |
| 20130 | 16 x 2 x 1,3 | black | 23,0 | 426,0 | 656,0 | – |
| 20131 | 24 x 2 x 1,3 | black | 27,9 | 684,0 | 952,0 | – |
| 20235 | 1 x 2 x 0,5 | blue | 7,5 | 15,0 | 74,0 | 20 |
| 20236 | 2 x 2 x 0,5 | blue | 9,8 | 30,0 | 117,0 | 20 |
| 20237 | 4 x 2 x 0,5 | blue | 11,3 | 50,0 | 140,0 | 20 |
| 20238 | 6 x 2 x 0,5 | blue | 13,1 | 70,0 | 190,0 | 20 |
| 20239 | 8 x 2 x 0,5 | blue | 14,6 | 90,0 | 215,0 | 20 |
| 20240 | 10 x 2 x 0,5 | blue | 16,1 | 110,0 | 220,0 | 20 |
| 20241 | 12 x 2 x 0,5 | blue | 16,4 | 130,0 | 280,0 | 20 |
| 20242 | 16 x 2 x 0,5 | blue | 18,3 | 170,0 | 352,0 | 20 |
| 20243 | 20 x 2 x 0,5 | blue | 19,2 | 210,0 | 385,0 | 20 |
| 20244 | 24 x 2 x 0,5 | blue | 22,3 | 250,0 | 468,0 | 20 |
| 20245 | 36 x 2 x 0,5 | blue | 24,5 | 370,0 | 656,0 | 20 |
| 20246 | 48 x 2 x 0,5 | blue | 27,7 | 490,0 | 854,0 | 20 |
| 20169 | 1 x 2 x 0,75 | blue | 7,9 | 20,0 | 74,0 | 19 |
| 20170 | 2 x 2 x 0,75 | blue | 10,4 | 35,0 | 123,0 | 19 |
| 20171 | 4 x 2 x 0,75 | blue | 11,9 | 65,0 | 164,0 | 19 |
| 20172 | 8 x 2 x 0,75 | blue | 15,0 | 125,0 | 258,0 | 19 |
| 20173 | 10 x 2 x 0,75 | blue | 17,0 | 154,0 | 305,0 | 19 |
| 20174 | 12 x 2 x 0,75 | blue | 17,6 | 185,0 | 350,0 | 19 |
| 20175 | 16 x 2 x 0,75 | blue | 19,5 | 245,0 | 445,0 | 19 |
| 20176 | 20 x 2 x 0,75 | blue | 21,5 | 298,0 | 520,0 | 19 |
| 20177 | 24 x 2 x 0,75 | blue | 24,0 | 365,0 | 620,0 | 19 |
| 20178 | 36 x 2 x 0,75 | blue | 26,5 | 532,0 | 940,0 | 19 |
| 20179 | 48 x 2 x 0,75 | blue | 30,3 | 708,0 | 1250,0 | 19 |
| 20247 | 1 x 2 x 1,3 | blue | 8,7 | 31,0 | 102,0 | – |
| 20255 | 1 x 3 x 1,3 | blue | 9,0 | 44,0 | 116,0 | – |
| 20248 | 2 x 2 x 1,3 | blue | 11,5 | 62,0 | 161,0 | – |
| 20249 | 4 x 2 x 1,3 | blue | 14,3 | 114,0 | 230,0 | – |
| 20250 | 6 x 2 x 1,3 | blue | 15,8 | 168,0 | 310,0 | – |
| 20251 | 8 x 2 x 1,3 | blue | 17,3 | 218,0 | 377,0 | – |
| 20252 | 12 x 2 x 1,3 | blue | 20,5 | 322,0 | 515,0 | – |
| 20253 | 16 x 2 x 1,3 | blue | 23,0 | 426,0 | 656,0 | – |
| 20254 | 24 x 2 x 1,3 | blue | 27,9 | 684,0 | 952,0 | – |
