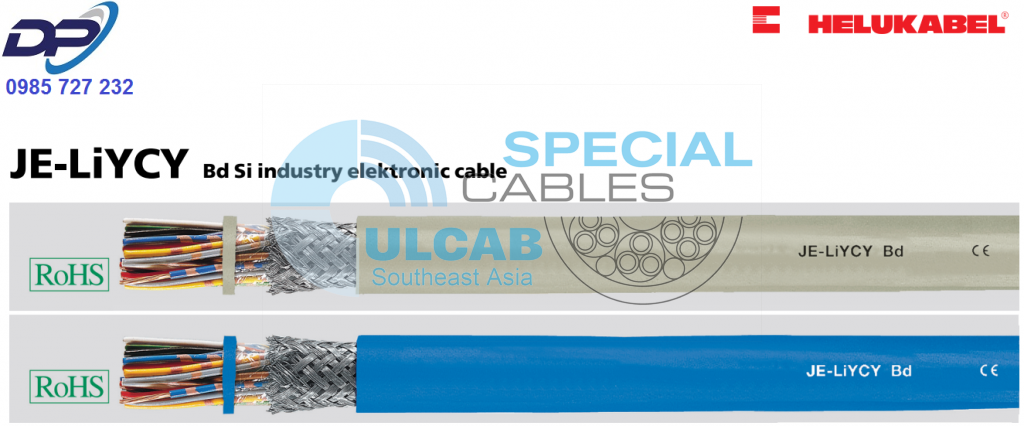

JE-LiYCY

Bd Si industry electronic cable

Technical data

• Special industry electronic cable
  adapted to DIN VDE 0815
• Conductor resistance  at 20°C
  39,2 Ohm/km
• Temperature range
  flexing -5°C to +50°C
  fixed installation -30°C to +70°C
• Operating peak voltage 225 V
  (not for heavy current installation purposes)
• Test voltage
  core/core 500 V
  core/screen 2000 V
• Insulation resistance
  min. 100 MOhm x km
• Mutual capacitance  at 800 Hz
  max. 100 pF/m
  (this value may be exceeded by
  20% with a make-up to 4 pairs)
• Capacitance unbalance
  max. 200 pF/100 m
• Inductance
  approx. 0,70 mH/km
• Attenuation  at 800 Hz
  approx. 1,1 dB/km
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)
• Minimum bending radius
  fixed installation 6x cable Ø

Cable structure

• Bare copper strands 7×0,3 mm
• Core insulation of PVC (Semi-Rigid-PVC)
• Core identification (pair) to
  DIN VDE 0815 (Simatic colour code)
• Cores stranded in pairs with
  optimal lay length
• 4 pairs stranded to a unit
• Unit stranded with optimal lay length
• Foil wrapping
• Bare or tinned copper wire braided,
  0,2 mm Ø screening,
  approx. 85% coverage
• Outer sheath of PVC
  compound type YM1 to
  DIN VDE 0207-5
• Sheath colour: grey (RAL 7032)
  or blue (RAL 5015)

Properties

• Suitable for cut clamp technology
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2

Note

• Also availabel in a halogen-free version.
  (see also content “Halogen-free Security
  Cables and Wires”)
• Control cable with blue outer sheath, see
  Flexible Control Cables
• With blue outer sheath for hazardous areas
  to hazard type -i- for intrinsically safe
  installation acc. to DIN EN 60079-14
  section 12.2.2 (VDE 0165-1)
• 2-paired cables:
  cores stranded to a star quad
• For Maxi-Termi-Point^® technique
  (Maxi-Termi-Point^® = registered trade
  mark AMP)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

These cable types are suitable for transmission of signals and measurements in the symmetric circuits of the control and regulation technology, and for the transmission of data and process information in computer systems. Used in dry and damp premises, and in or under plaster in the open air for fixed installation. Installation cables are not allowed for purposes of high current and power or burial installation.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
