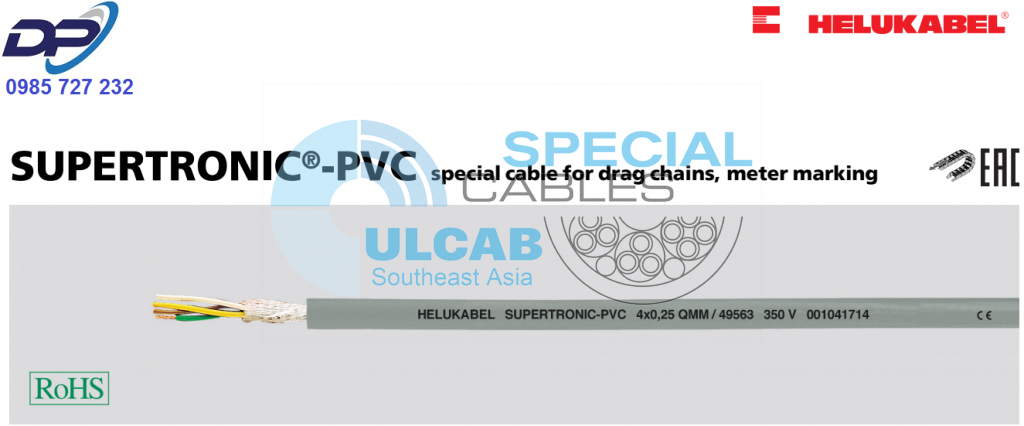

SUPERTRONIC®-PVC |
special cable for drag chains, meter marking |
  |
Technical data
- Special PVC cable for drag chains, adapted to
DIN VDE 0285-525-1 / DIN EN 50525-1 - Very high flexible due to special construction
- Temperature range
flexing -5°C to +70°C
fixed installation -40°C to +70°C - Nominal voltage
350 V - Test voltage
1500 V - Breakdown voltage
min. 3000 V - Minimum bending radius
flexing 5x cable Ø
fixed installation 3x cable Ø - Radiation resistance
up to 80×106 cJ/kg (up to 80 Mrad)
Cable structure
- Bare copper, extra fine wire conductors, to
DIN VDE 0295 cl.6 - Core insulation of special PVC
compound type TI2 to
DIN VDE 0207-363-3 / DIN EN 50363-3 - Cores colour coded to DIN 47100,
see “Technical Information” - Cores stranded in layers with
optimal selected lay length - Core wrapping with textile tape
- Outer sheath of special PVC
compound type TM2 to
DIN VDE 0207-363-4-1/DIN EN 50363-4-1 - Sheath colour: grey (RAL 7001)
- With meter marking
Properties
- Extensively oil resistant,
oil-/chemical resistance
see “Technical Information” - Adhesion-low
- The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2
Note
- AWG sizes are approximate equivalent
values. The actual cross section is in mm².
Application
The ideal cable for use in cable trays. This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries, robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Information”.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
Data sheet
Certificate of compliance
| Part no. | No.cores x cross-sec. mm² |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|
| 49550 | 2 x 0,14 | 3,5 | 2,8 | 23,0 | 26 |
| 49551 | 3 x 0,14 | 3,7 | 4,1 | 25,0 | 26 |
| 49552 | 4 x 0,14 | 3,9 | 5,6 | 30,0 | 26 |
| 49553 | 5 x 0,14 | 4,2 | 7,0 | 35,0 | 26 |
| 49554 | 7 x 0,14 | 4,8 | 9,8 | 49,0 | 26 |
| 49555 | 10 x 0,14 | 6,2 | 14,0 | 64,0 | 26 |
| 49556 | 12 x 0,14 | 6,3 | 16,8 | 71,0 | 26 |
| 49557 | 14 x 0,14 | 6,6 | 19,6 | 77,0 | 26 |
| 49558 | 18 x 0,14 | 7,2 | 25,2 | 90,0 | 26 |
| 49559 | 24 x 0,14 | 8,5 | 33,6 | 119,0 | 26 |
| 49560 | 25 x 0,14 | 8,6 | 35,0 | 124,0 | 26 |
| 49561 | 2 x 0,25 | 4,2 | 5,0 | 28,0 | 24 |
| 49562 | 3 x 0,25 | 4,4 | 7,5 | 33,0 | 24 |
| 49563 | 4 x 0,25 | 4,7 | 10,0 | 39,0 | 24 |
| 49564 | 5 x 0,25 | 5,6 | 12,5 | 50,0 | 24 |
| 49565 | 7 x 0,25 | 6,1 | 17,5 | 63,0 | 24 |
| 49566 | 10 x 0,25 | 7,2 | 25,0 | 83,0 | 24 |
| 49567 | 12 x 0,25 | 7,5 | 30,1 | 95,0 | 24 |
| 49568 | 14 x 0,25 | 7,9 | 35,0 | 107,0 | 24 |
| 49569 | 18 x 0,25 | 8,9 | 45,0 | 130,0 | 24 |
| 49570 | 24 x 0,25 | 10,4 | 60,0 | 170,0 | 24 |
| 49571 | 25 x 0,25 | 10,5 | 62,5 | 177,0 | 24 |
| 49572 | 2 x 0,34 | 4,6 | 6,8 | 33,0 | 22 |
| 49573 | 3 x 0,34 | 4,8 | 10,2 | 42,0 | 22 |
| 49574 | 4 x 0,34 | 5,2 | 13,6 | 56,0 | 22 |
| 49575 | 5 x 0,34 | 6,1 | 17,0 | 64,0 | 22 |
| 49576 | 7 x 0,34 | 7,0 | 23,8 | 84,0 | 22 |
| 49577 | 10 x 0,34 | 8,4 | 34,0 | 116,0 | 22 |
| 49578 | 12 x 0,34 | 8,5 | 40,8 | 133,0 | 22 |
| 49579 | 14 x 0,34 | 9,0 | 47,6 | 150,0 | 22 |
| 49580 | 18 x 0,34 | 10,1 | 61,2 | 182,0 | 22 |
| 49581 | 24 x 0,34 | 12,0 | 81,5 | 240,0 | 22 |
| 49582 | 25 x 0,34 | 12,2 | 85,0 | 250,0 | 22 |
