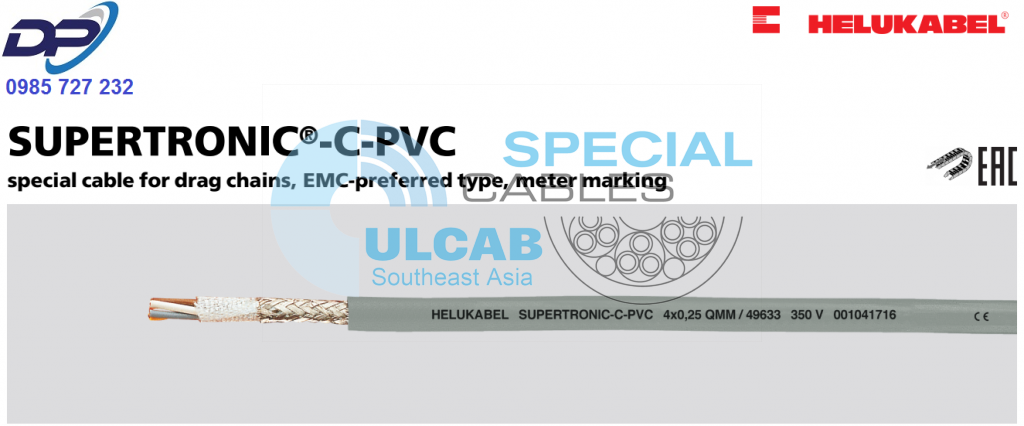

SUPERTRONIC®-C-PVC

Special cable for drag chains, meter marking, EMC-preferred type

Technical data

• Special PVC cable for drag chains, adapted to
  DIN VDE 0285-525-1 / DIN EN 50525-1
• Very high flexible due to special construction
• Temperature range
  flexing -5°C  to  +70°C
  fixed installation -40°C  to  +70°C
• Nominal voltage
  350 V
• Test voltage
  1500 V
• Breakdown voltage
  min. 3000 V
• Insulation resistance
  min. 20 MOhm x km
• Coupling resistance
  max. 250 Ohm/km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper, extra fine wire conductors, to
  DIN VDE 0295 cl.6
• Core insulation of special PVC
  compound type TI2 to
  DIN VDE 0207-363-3 / DIN EN 50363-3
• Cores colour coded to DIN 47100,
  see “Technical Information”
• Cores stranded in layers with
  optimal selected lay length
• Core wrapping with textile tape
• Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath of special PVC
  compound type TM2 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: grey (RAL 7001)
• With meter marking

Properties

• Extensively oil resistant,
  oil-/chemical resistance
  see “Technical Information”
• Adhesion-low
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2

Note

• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

The ideal cable for use in cable trays. This high flexible cable is ideal for all areas requiring a high and fast flexing cable including the machine industries, robotics and all areas of highly mobile machine parts. The long working life offers a secure performance as well as economy. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Information”.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
