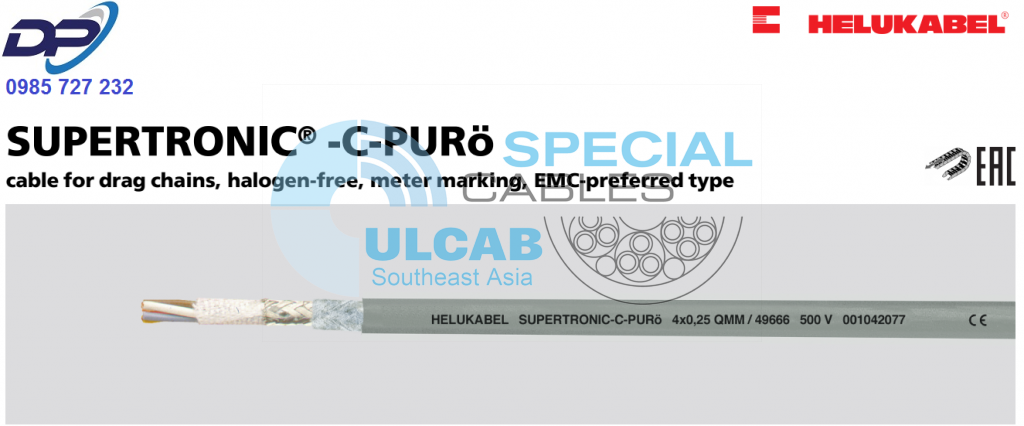

SUPERTRONIC®-C-PURö

Cable for drag chains, halogen-free, meter marking, EMC-preferred type

Technical data

• Special PUR drag chain cables,
  screened, adapted to
  DIN VDE 0285-525-1 /
  DIN EN 50525-2-51
• Temperature range
  flexing -30°C to +70°C
  fixed installation -40°C to +70°C
• Nominal voltage
  0,14 mm²  350 V
  from 0,25 mm²  500 V
• Test voltage
  0,14 mm²  800 V
  from 0,25 mm²  1200 V
• Capacitance
  core/core < 80 pF/m
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Coupling resistance
  max. 250 Ohm/km
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)

Cable structure

• Bare copper conductor, extra fine wire,
  acc. to DIN VDE 0295 cl.6,
  IEC 60228 cl.6
• Core insulation of PP
• Core identification to DIN 47100
• Cores stranded in layers with
  optimal lay length
• Wrapping
• Tinned copper braided screen,
  approx. 85% coverage
• Fleece wrapping
• Outer sheath of special full-polyurethane
  TMPU to DIN VDE 0207-363-10-2 /
  DIN EN 50363-10-2
• Sheath colour: grey (RAL 7001), surface mat
• With meter marking

Properties

• Features
  High flexibility at low temperature, high
  abrasion resistance, break and cut-resistant,
  tear resistant
• Resistant to
  UV-radiation, Oxygen, Ozone, Hydrolyse, Oil
• Conditional resistant to
  Microbes, Hydraulic liquidity, Alkalis, Lye
• The PUR outer sheath is extremely robust
  with high tear, abrasion and oil-resistance
• Adhesion-low
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

Used for installation in dry, moist and wet environments as well as for outdoors, for free movement without forced motion and for flexible routing without forced motion, for proven use as drag-chain cables. Suitable as a highly flexible control cable for fast hoisting and bending stresses in machinery and tooling construction, in robotics engineering and for continuously moving machinery parts. The long working life of this cable makes it both efficient and economic. The copper braided screening offers effective protection from both internal and external interference. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
