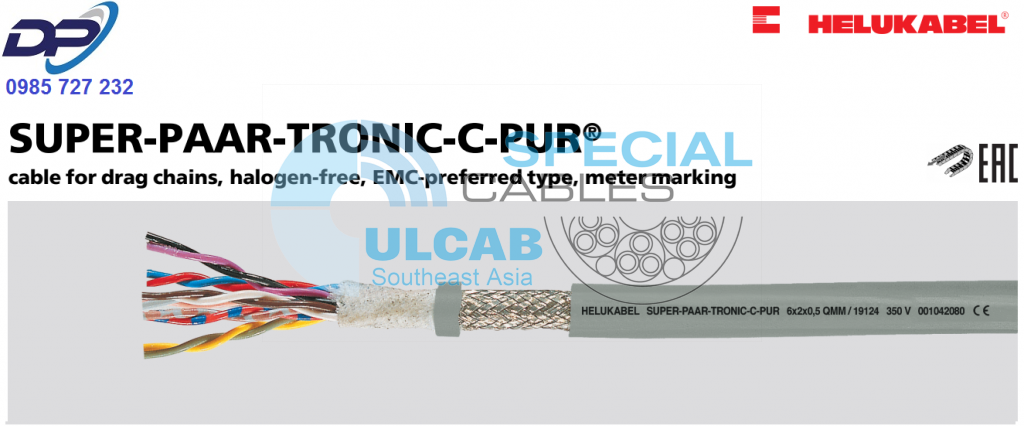

SUPER-PAAR-TRONIC-C-PUR®
Cable for drag chains, halogen-free, meter marking, EMC-preferred type
Technical data
- Special drag chain cable, twisted in pairs,
adapted to DIN VDE 0285-525-1 /
DIN EN 50525-1 - Temperature range
flexing -30°C to +70°C
fixed installation -40°C to +70°C - Nominal voltage
350 V - Test voltage
1500 V - Insulation resistance
min. 100 MOhm x km - Mutual capacitance
core/core approx. 135 pF/m - Minimum bending radius
flexing
at 0,14 – 0,25 mm²: 7,5x cable Ø
at 0,5 – 1 mm²: 10x cable Ø
fixed installation
at 0,14 – 0,25 mm²: 4x cable Ø
at 0,5 – 1 mm²: 5x cable Ø - Coupling resistance
max. 250 Ohm/km - Radiation resistance
up to 100×106 cJ/kg (up to 100 Mrad)
Cable structure
- Bare copper conductors, extra fine wire
acc. to DIN VDE 0295 cl.6,
BS 6360 cl.6 and IEC 60228 cl.6 - Core insulation of PP
- Core identification to DIN 47100
- Cores twisted in pairs, the pairs
torsion-free stranded in layers - Foil wrapping
- Tinned copper screened braiding,
approx. 85% coverage - Fleece wrapping
- Outer sheath of full-polyurethane
compound type TMPU to
DIN VDE 0207-363-10-2 /
DN EN 50363-10-2 - Sheath colour: grey (RAL 7001)
- With meter marking
Properties
- Very good oil resistant
- Resistant to weather, ozone, hydrolysis-
and UV-radiation - Chemical resistant to solvents, acids, lyes
and hydraulic liquidity - Guaranteed permanent application in
multi-shift operation under extreme high
bending stress - High resistant to mechanical strain
- High property of alternating bending strength
- Long life durabilities through low
friction-resistance by using the PP-core
insulation where the core are stranded in
layers - High tensile strength-, abrasion- and impact
resistant at low temperature - Adhesion-low
- The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Note
- AWG sizes are approximate equivalent
values. The actual cross section is in mm².
Application
These pair stranded and overall screened special cables for drag chains offer the operational possibilities where the outer electrical influences at high frequence cause interference of impulse transmission, are applied for permanent flexible operations in machineries, machine tools, robot technics, for movable automated machinery parts and multi-shift-operation as a transmission-cable. These highly flexible data cables are developed according to the newest state of technology improvement and with its sliding abilities by using the PP-core insulation and adhesion-low and cut-resistant PUR-outer sheath, guaranteed an optimum life durabilities and highly economic. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
Data sheet
Certificate of compliance
| Part no. | No.pairs x cross-sec. mm² |
Outer Ø
app. mm |
Cop. weight kg / km |
Weight
app. kg / km |
AWG-No. |
|---|---|---|---|---|---|
| 19758 | 1 x 2 x 0,14 | 4,4 | 13,0 | 24,0 | 26 |
| 19759 | 2 x 2 x 0,14 | 6,0 | 19,2 | 42,0 | 26 |
| 19768 | 3 x 2 x 0,14 | 6,3 | 23,3 | 53,0 | 26 |
| 19769 | 4 x 2 x 0,14 | 6,6 | 27,0 | 60,0 | 26 |
| 19778 | 5 x 2 x 0,14 | 7,2 | 37,6 | 74,0 | 26 |
| 19779 | 6 x 2 x 0,14 | 7,5 | 49,2 | 90,0 | 26 |
| 19788 | 8 x 2 x 0,14 | 8,6 | 54,6 | 108,0 | 26 |
| 19789 | 10 x 2 x 0,14 | 10,0 | 60,0 | 119,0 | 26 |
| 19101 | 1 x 2 x 0,25 | 4,9 | 14,0 | 28,0 | 24 |
| 19102 | 2 x 2 x 0,25 | 6,8 | 32,0 | 61,0 | 24 |
| 19103 | 3 x 2 x 0,25 | 7,2 | 38,4 | 73,0 | 24 |
| 19104 | 4 x 2 x 0,25 | 7,7 | 43,2 | 90,0 | 24 |
| 19105 | 5 x 2 x 0,25 | 8,6 | 51,5 | 105,0 | 24 |
| 19106 | 6 x 2 x 0,25 | 9,2 | 71,8 | 133,0 | 24 |
| 19107 | 8 x 2 x 0,25 | 10,6 | 74,4 | 156,0 | 24 |
| 19108 | 10 x 2 x 0,25 | 11,7 | 90,0 | 188,0 | 24 |
| 19109 | 14 x 2 x 0,25 | 12,7 | 111,2 | 220,0 | 24 |
| 19119 | 1 x 2 x 0,5 | 5,7 | 22,0 | 47,0 | 20 |
| 19120 | 2 x 2 x 0,5 | 8,2 | 50,0 | 100,0 | 20 |
| 19121 | 3 x 2 x 0,5 | 8,8 | 71,8 | 131,0 | 20 |
| 19122 | 4 x 2 x 0,5 | 9,6 | 74,4 | 149,0 | 20 |
| 19123 | 5 x 2 x 0,5 | 10,6 | 84,5 | 169,0 | 20 |
| 19124 | 6 x 2 x 0,5 | 11,5 | 99,6 | 196,0 | 20 |
| 19125 | 8 x 2 x 0,5 | 13,4 | 144,3 | 285,0 | 20 |
| 19126 | 10 x 2 x 0,5 | 14,9 | 176,0 | 344,0 | 20 |
| 19127 | 14 x 2 x 0,5 | 16,5 | 215,4 | 401,0 | 20 |
| 19128 | 1 x 2 x 0,75 | 6,5 | 34,0 | 61,0 | 19 |
| 19129 | 2 x 2 x 0,75 | 9,3 | 60,0 | 113,0 | 19 |
| 19130 | 3 x 2 x 0,75 | 9,8 | 85,7 | 158,0 | 19 |
| 19131 | 4 x 2 x 0,75 | 10,6 | 93,6 | 173,0 | 19 |
| 19132 | 5 x 2 x 0,75 | 11,7 | 113,0 | 203,0 | 19 |
| 19133 | 6 x 2 x 0,75 | 12,7 | 130,4 | 231,0 | 19 |
| 19134 | 8 x 2 x 0,75 | 14,9 | 192,2 | 343,0 | 19 |
| 19135 | 10 x 2 x 0,75 | 16,6 | 258,0 | 467,0 | 19 |
| 19136 | 14 x 2 x 0,75 | 18,2 | 316,6 | 546,0 | 19 |
| 19137 | 1 x 2 x 1 | 6,9 | 42,0 | 71,0 | 18 |
| 19138 | 2 x 2 x 1 | 9,9 | 73,0 | 130,0 | 18 |
| 19139 | 3 x 2 x 1 | 10,5 | 93,6 | 170,0 | 18 |
| 19140 | 4 x 2 x 1 | 11,6 | 117,8 | 204,0 | 18 |
| 19141 | 5 x 2 x 1 | 12,8 | 139,0 | 238,0 | 18 |
