SENSORFLEX®-H |

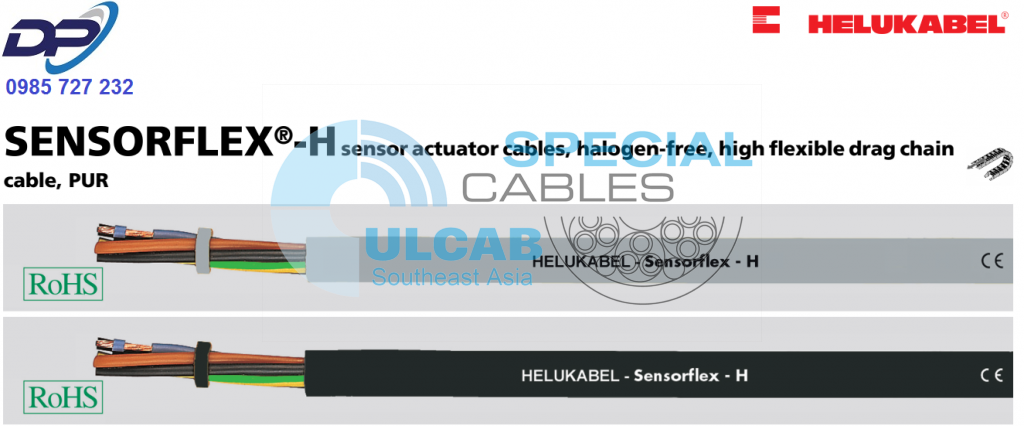

Sensor actuator cables, halogen-free, high flexible drag chain cable, PUR |
 |
Technical data
- Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C - Operating voltage
up to 0,25 mm² 350 V
from 0,34 mm² 500 V - A.c. test voltage, 50 Hz
up to 0,25 mm² 1200 V
from 0,34 mm² 2000 V - Minimum bending radius
SENSORFLEX®-H (Li12Y11Y)
5x cable Ø
SENSORFLEX®-H (Li9Y11Y)
7.5x cable Ø
Cable structure
SENSORFLEX®-H (Li12Y11Y)
- Bare copper conductor, to
DIN VDE 0295 cl.6, extra fine wire,
BS 6360 cl.6, IEC 60228 cl.6 - Core insulation of TPE
- Core identification see table below
- Outer sheath of PUR
- Sheath colour: see table below
SENSORFLEX®-H (Li9Y11Y)
- Bare copper conductor, to
DIN VDE 0295 cl.6, extra fine wire,
BS 6360 cl.6, IEC 60228 cl.6 - Core insualtion of PP
- Core identification see table below
- Outer sheath of PUR
- Sheath colour: see table below
Properties
- Low adhesion, extremely abrasion resistant,
resistant to hydrolysis and microbial attack - Highly flexible drag chain cable
Application
For decentralised installation and control technology. These cables are used in connector systems for sensors and actuators. In combination with injected circular connectors and installed actuator-sensor boxes, they constitute an important connecting element between the periphery and the PLC in production systems. The assembled cables offer attractive opportunities for reducing costs, not only in the field of automation technology, but also in the entire manufacturing industry. While previously it was necessary to carry out time-consuming wiring of switchgear cabinets and machines, now field bus technology has made it possible to move the periphery interfaces from the switchgear cabinets to the machines and systems. Moving the I/O points to the system periphery enables significant reductions in installation costs.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
SENSORFLEX-H (Li12Y11Y) high flexible drag chain cable, PUR
| Part no. | Cable structure | AWG-No. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| black | grey | No.cores x cross-sec. mm² |
Sheath material |
Core colours | Fine wire |
High flex ** |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
|
| 76283 | 76299 | 2 x 0,25 | PUR | brown, blue | X | 4,4 | 4,8 | 22,0 | 24 | |
| 76284 | 76300 | 3 x 0,25 | PUR | brown, blue, black | X | 4,4 | 7,2 | 22,0 | 24 | |
| 76285 | 76301 | 4 x 0,25 | PUR | brown, blue, black, white | X | 4,7 | 9,6 | 26,0 | 24 | |
| 76286 | 76302 | 5 x 0,25 | PUR | brown, blue, black, white, grey | X | 4,8 | 12,0 | 30,0 | 24 | |
| 76287 | 76303 | 2 x 0,34 | PUR | brown, blue | X | 4,9 | 6,5 | 30,0 | 22 | |
| 76288 | 76304 | 3 x 0,34 | PUR | brown, blue, black | X | 4,9 | 9,8 | 30,0 | 22 | |
| 76289 | 76305 | 4 x 0,34 | PUR | brown, blue, black, white | X | 5,2 | 13,1 | 43,0 | 22 | |
| 76290 | 76306 | 5 x 0,34 | PUR | brown, blue, black, white, grey | X | 5,9 | 16,4 | 54,0 | 22 | |
| 78265 | 78266 | 5 G 0,34 | PUR | brown, blue, black, white, green-yellow | X | 5,9 | 16,4 | 54,0 | 22 | |
| 76291 | 76307 | 2 x 0,5 | PUR | brown, blue | X | 5,0 | 9,6 | 40,0 | 20 | |
| 78267 | 78268 | 3 G 0,5 | PUR | JZ, black with numbering + greenyellow | X | 5,7 | 14,4 | 43,0 | 20 | |
| 76292 | 76308 | 3 x 0,5 | PUR | brown, blue, black | X | 5,0 | 14,4 | 40,0 | 20 | |
| 76293 | 76309 | 4 x 0,5 | PUR | brown, blue, black, white | X | 5,5 | 19,2 | 47,0 | 20 | |
| 76294 | 76310 | 5 x 0,5 | PUR | brown, blue, black, white, grey | X | 6,0 | 24,0 | 55,0 | 20 | |
| 76295 | 76311 | 2 x 0,75 | PUR | brown, blue | X | 5,7 | 14,4 | 47,0 | 18 | |
| 78269 | 78270 | 3 G 0,75 | PUR | brown, blue, green-yellow | X | 5,9 | 21,6 | 54,0 | 18 | |
| 76296 | 76312 | 3 x 0,75 | PUR | brown, blue, black | X | 5,9 | 21,6 | 54,0 | 18 | |
| 78271 | 78272 | 4 G 0,75 | PUR | brown, blue, black, green-yellow | X | 6,2 | 28,8 | 67,0 | 18 | |
| 76297 | 76313 | 4 x 0,75 | PUR | brown, blue, black, white | X | 6,0 | 28,8 | 66,0 | 18 | |
| 78273 | 78274 | 5 G 0,75 | PUR | JZ, black with numbering + greenyellow | X | 7,0 | 36,0 | 80,0 | 18 | |
| 76298 | 76314 | 5 x 0,75 | PUR | brown, blue, black, white, grey | X | 7,0 | 36,0 | 80,0 | 18 | |
