JZ-HF

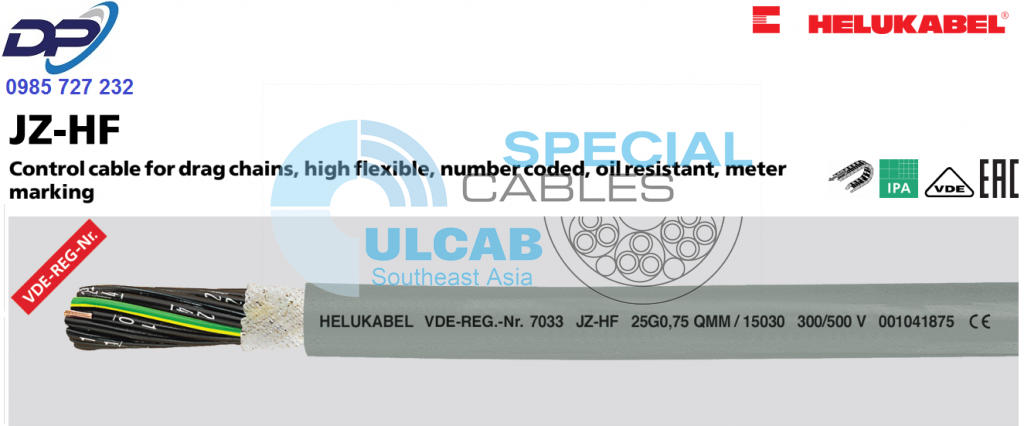

Control cable for drag chains, high flexible, number coded, oil resistant, meter marking

Technical data

• Special PVC control cable, extreme
  flexibility due to special construction
• Requirements adapted to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51
• Temperature range
  flexing -10°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  4000 V
• Breakdown voltage
  min. 8000 V
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper, extra fine wire conductors, to
  DIN VDE 0295 cl.6 col.4, BS 6360 cl.6 and
  IEC 60228 cl.6
• Core insulation of special PVC
  compound type Z 7225
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with
  optimal lay length
• Core wrapping with fleece
• Outer sheath of special PVC
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Sheath colour: grey (RAL 7001)
• With meter marking

Properties

• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2
• Oil resistant acc. to
  DIN VDE 0473-811-404/DIN EN 60811-404

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• Cleanroom qualification tested with analog
  type. Please note “cleanroom qualified”
  when ordering.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Screened analogue type:
  JZ-HF-CY
• With UL-approval
  MULTISPEED^® 500-PVC UL/CSA

Application

JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
