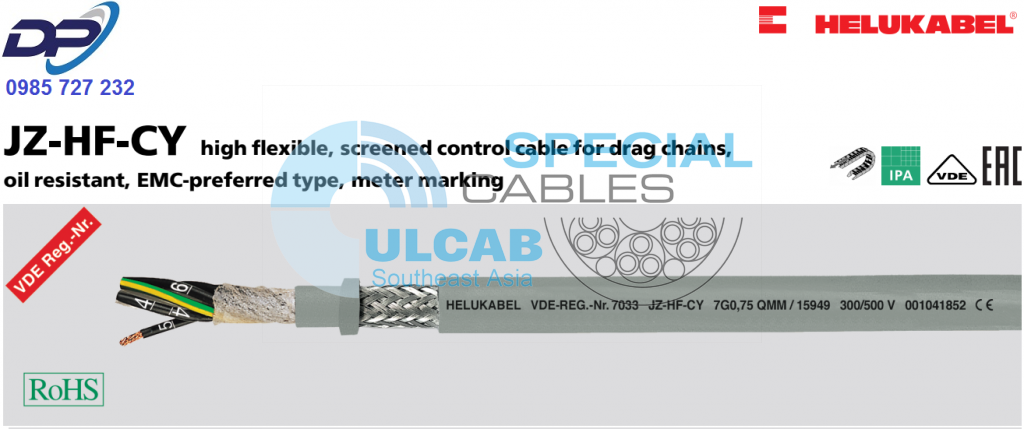

JZ-HF-CY

high flexible, screened control cable for drag chains, oil resistant EMC-preferred type, meter marking,

Technical data

• Special PVC control cable, extreme
  flexibility due to special construction
• Requirements adapted to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51
• Temperature range
  flexing -10°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage U₀/U 300/500 V
• Test voltage 4000 V
• Breakdown voltage min. 8000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 10x cable Ø
  fixed installation 5x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper, extra fine wire conductors, to
  DIN VDE 0295 cl.6 col. 4, BS 6360 cl.6 and
  IEC 60228 cl.6
• Core insulation of special PVC Z 7225
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with optimal selected
  lay-length
• Core wrapping with fleece PVC-inner sheath
• construction with Cu-screening, tinned,
  minimum coverage 85%
• Outer sheath of special PVC
  compound type TM5 to
  DIN VDE 0207-363-4-1/DIN EN 50363-4-1
• Colour grey (RAL 7001)
• with meter marking

Properties

• The materials used in manufacture are
  cadmium-free and contain no silicone
  and free from substances harmful to
  the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• oil resistant to DIN VDE 0473-811-404 /
  DIN EN 60811-404

Note

• G = with green-yellow conductor
  x = without green-yellow conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross-section is in mm².
• Please note the cleanroom qualification when
  ordering.
• unscreened analogue type:
  JZ-HF
• with UL-approval
  JZ-HF-FCY

Application

JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements. The dense screening assures disturbance-free transmission of all signals and impulses. An ideal disturbance-free control cable for the above application. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see lead text.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
