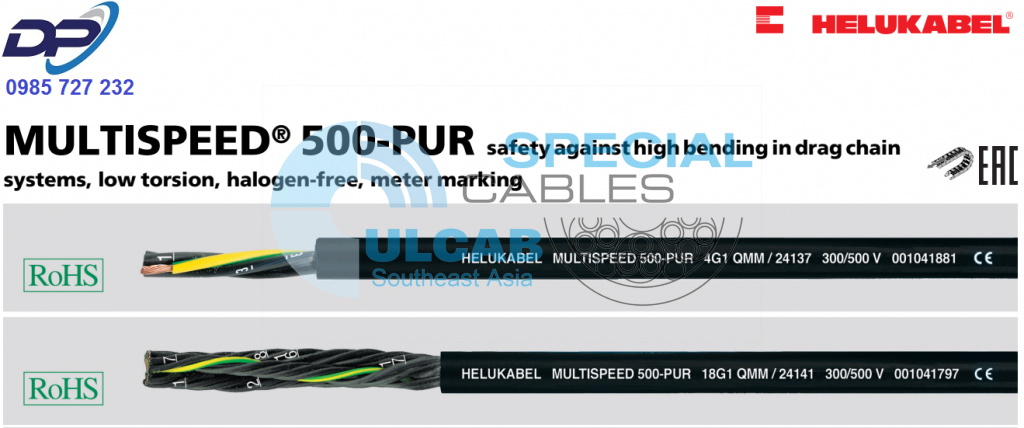

MULTISPEED^® 500-PUR

safety against high bending in drag chain systems, low torsion, halogen-free, meter marking

Technical data

• Special drag chain cables for high
  mechanical stress adapted to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51 and
  DIN VDE 0285-525-2-21 /
  DIN EN 50525-2-21
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  3000 V
• Insulation resistance
  min. 100 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)

Cable structure

• Bare copper conductor, fine wire,
  Unilay with short lay length
• Core insulation of special PP
• Core identification black cores with
  continuous white numbering
• GN-YE conductor, 3 cores and above
• Stranding:
  < 7 cores: cores stranded in a layer with
  optimal lay length around a filler as per
  construction
  ≥ 7 cores: cores stranded with optimal
  lay length to bunch-construction with
  low torsion strength, optimal selected
  short lay length around a filler
• Special-PUR outer sheath,
  extruded as filler with pressure
• Sheath colour: black (RAL 9005)
• With meter marking

Properties

• Low adhesion
• Halogen-free
• Oil resistance
• Better chemical resistance
• Ozone- and UV-resistant
• Higher economical solution
• Reduced Ø, results low weight of moving
  materials
• High property of alternating bending strength
• High resistant to mechanical strain
• Long life durabilitys due to low
  friction-resistance
• High tensile strength, abrasion- and impact
  resistance at low temperature
• Tear resistance and high stability
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Screened analogue type:
  MULTISPEED® 500-C-PUR

Application

For permanent application in drag chains for long distances, high and low speed of movements. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed there, where the problems appear for the application in permanent stresses e. g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. These cables are installed everywhere, where high requirements for the flexibility, abrasion, oxygen and chemical resistance are necessary. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
