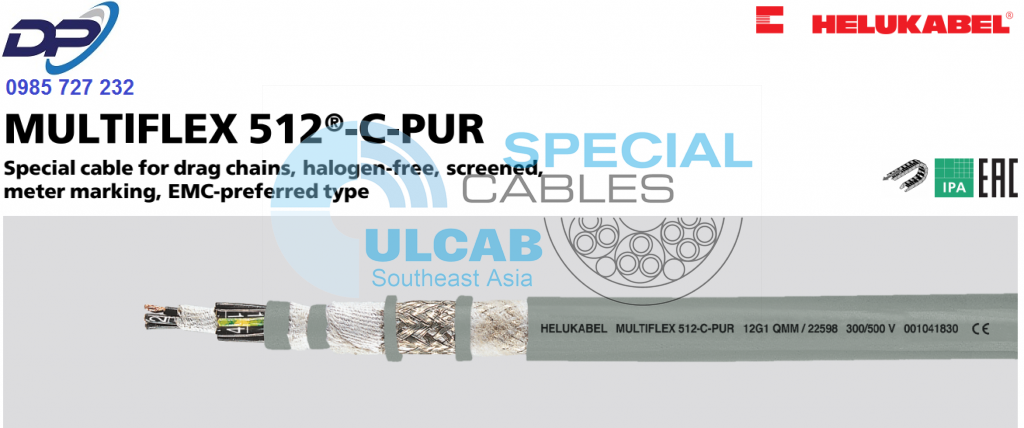

MULTIFLEX 512^®-C-PUR

Special cable for drag chains, halogen-free, screened,
meter marking, EMC-preferred type

Technical data

• Special drag chain cables for extreme
  mechanical stress adapted to
  DIN VDE 0285-525-2-21 /
  DIN EN 50525-2-21
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  3000 V
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Test of alternating bending
  cycles approx. 10 million
• Coupling resistance
  max. 250 Ohm/km

Cable structure

• Bare copper conductor, extra fine wire
  acc. to DIN VDE 0295  cl.6, col. 4 /
  IEC 60228 cl.6
• Core insulation special PP
• Core identification black cores with
  continuous white numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with optimal
  selected lay length
• Fleece wrapping over each layer
  (from 4 mm² without fleece wrapping)
• TPE-inner sheath, halogen-free
• Fleece wrapping
• Tinned copper braided screening,
  approx. 85% coverage
• Fleece wrapping
• Outer sheath of special full-polyurethane
  compound type TMPU acc. to
  DIN VDE 0207-363-10-2 /
  DIN EN 50363-10-2
• Sheath colour: grey, (RAL 7001),
  with a matte surface
• With meter marking

Properties

• Very good oil resistant
• Guaranteed permanent application in
  multi-shift operation under extreme high
  bending stress
• Adhesion-low
• High resistant to mechanical strain
• High property of alternating bending strength
• Long life durabilities through low
  friction-resistance by using the PP insulation
• High tensile strength-, abrasion- and impact
  resistant at low temperature
• Resistant to weather, ozone and UV-radiation,
  solvents, acids and alkalis, hydraulic liquidity
  and hydrolysis
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• Please note “cleanroom qualified”
  when ordering.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Unscreened analogue type:
  MULTIFLEX 512^®-PUR

Application

The special screened cables for drag chains are mainly applied for impulse transmission to prevent external interference effects and used for permanent flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts and multi-shift operation. Those cables are developed according to the newest state of technology improvement. These high flexible control cables with sliding abilities guaranteed an optimum service life durabilities and also very economic by using the PP-core insulation and the PUR-outer sheath which is adhesive-free and cut-resistant. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Information”.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
