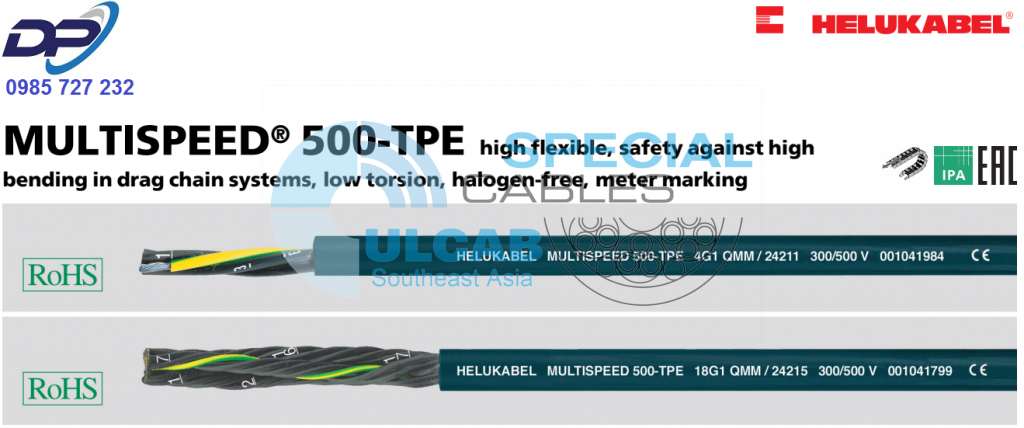

MULTISPEED® 500-TPE

high flexible, safety against high bending in drag chain systems, low torsion, halogen-free, meter marking

Technical data

• Special drag chain cables for high
  mechanical stress adapted to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  3000 V
• Insulation resistance
  min. 100 MOhm x km
• Minimum bending radius
  flexing 5x cable Ø
  fixed installation 3x cable Ø
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)

Cable structure

• Tinned copper conductor, fine wire,
  Unilay with short lay length
• Core insulation of special PP
• Core identification black cores with
  continuous white numbering
• GN-YE conductor, 3 cores and above
• Stranding:
  < 7 cores: cores stranded in a layer with
  optimal lay length around a filler as per
  construction
  ≥ 7 cores: cores stranded with optimal
  lay length to bunch-construction with
  low torsion strength, optimal selected
  short lay length around a filler
• Outer sheath of special TPE-O
  extruded as filler with pressure
• Sheath colour: ocean blue (RAL 5020)
• With meter marking
• TPE: The selected tinned copper wire
  conductor permits the installation in
  aggressive environments as well as hydrogen
  sulfide, ammonia and sulfur dioxide

Properties

• Microbe-resistance – TPE
• Halogen-free
• Low adhesion
• High property of alternating bending strength
• High resistant to mechanical strain
• Long life durabilitys due to low
  friction-resistance
• High tensile strength, abrasion- and impact
  resistance at low temperature
• Use in multi-shift operations under extremely
  high continuous bending loads
• Abrasion resistance
• Tear resistance
• High stability
• Oil resistance
• Better chemical resistance
• Ozone- and UV-resistant
• Higher economical solution
• Reduced Ø, results low weight of moving
  materials
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• Cleanroom qualification tested with analog
  type. Please note “cleanroom qualified”
  when ordering.
• Screened analogue type:
  MULTISPEED® 500-C-TPE

Application

For permanent application in drag chains for long distances, high and low speed of movements. These cables are installed in dry, moist and wet rooms and in open air with free movement without tensile stress or forced movements. These robust and abrasion resistant special control cables are installed there, where the problems appear for the application in permanent stresses e. g. in energy drag chains, industry robotics, production lines, automatic control systems and permanent movable machinery parts for multi-shift operation. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
