BIOFLEX-500®-JZ-HF |

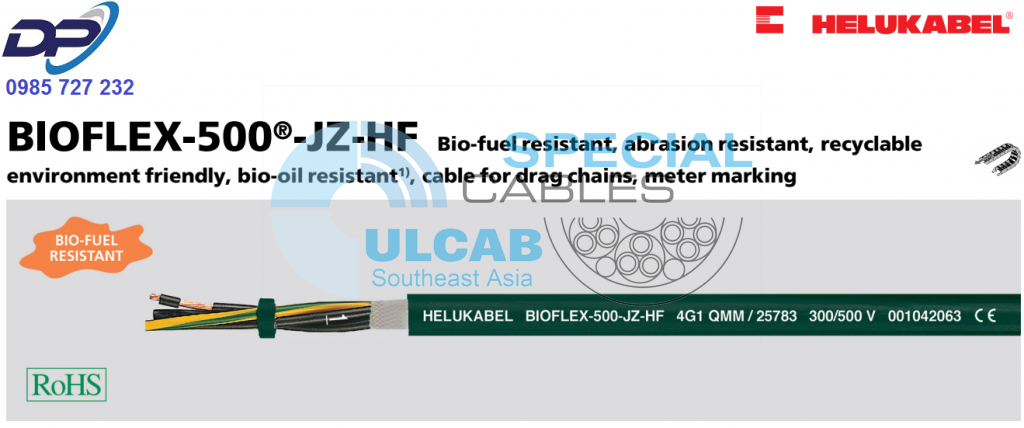

Bio-fuel resistant, abrasion resistant, recyclable environment friendly, bio-oil resistant1), cable for drag chains, meter marking |
 |
Technical data
- Bio-oil resistant, abrasion resistant special
high flexible control cable adapted to
DIN VDE 0285-525-1/DIN EN 50525-1 - Temperature range
flexing -20°C to +80°C
fixed installation -40°C to +80°C - Nominal voltage
U0/U 300/500 V - Test voltage
3000 V - Minimum bending radius
flexing 10x cable Ø
fixed installation 4x cable Ø - Radiation resistance
up to 100×106 cJ/kg (up to 100 Mrad)
Cable structure
- Bare copper, extra fine wire conductors,
bunch stranded to DIN VDE 0295 cl.6,
BS 6360 cl.6 and IEC 60228 cl.6 - Core insulation of special polymer with
improved sliding ability - Core identification to DIN VDE 0293
black cores with continuous white
numbering - GN-YE conductor, 3 cores and above
in the outer layer - Cores stranded in layers with optimal
selected lay length - Wrapping with fleece
- Outer sheath of special polymer compound
- Sheath colour: dark green
- With meter marking
Properties
- Resistant to
Bio-fuel (diesel and petrol), highly resistant
to biologically decomposable oils, Oxygene,
Ozone, Hydrolysis and Microbes - Low adhesion
Note
- G = with GN-YE conductor
x = without GN-YE conductor (OZ) - 1) For the critical applications we
advise for consultation. - AWG sizes are approximate equivalent
values. The actual cross section is in mm². - Unscreened analogue type:
BIOFLEX-500®-JZ-HF-C
Application
HELUKABEL® BIOFLEX-500®-JZ-HF is an extremely robust and high flexible control cable with high abrasion and tear resistant properties. Due to its high resistance to Bio-fuel, Bio-oil and coolant emulsions. It is especially suited for use in the machine, tool making and plant industries as well as in the steel industry for difficult and problem areas. Suitable in combination with cable trays in dry, moist and wet rooms and outdoor installation. The high flexibility of this cable type makes it quick and easy to install. Suitable for outdoor lying. For applications which go beyond standard solutions we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
Data sheet
Certificate of compliance
| Part no. | No.cores x cross-sec. mm² |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|
| 25761 | 2 x 0,5 | 5,4 | 9,6 | 45,0 | 20 |
| 25762 | 3 G 0,5 | 5,9 | 14,4 | 56,0 | 20 |
| 25763 | 4 G 0,5 | 6,3 | 19,1 | 69,0 | 20 |
| 25764 | 5 G 0,5 | 6,9 | 24,0 | 92,0 | 20 |
| 25765 | 7 G 0,5 | 7,8 | 33,6 | 126,0 | 20 |
| 25766 | 10 G 0,5 | 9,6 | 48,0 | 158,0 | 20 |
| 25767 | 12 G 0,5 | 10,3 | 58,0 | 176,0 | 20 |
| 25768 | 14 G 0,5 | 10,3 | 67,0 | 212,0 | 20 |
| 25769 | 18 G 0,5 | 11,5 | 86,4 | 283,0 | 20 |
| 25770 | 25 G 0,5 | 13,6 | 120,0 | 330,0 | 20 |
| 25771 | 2 x 0,75 | 5,9 | 14,4 | 57,0 | 19 |
| 25772 | 3 G 0,75 | 6,2 | 21,6 | 72,0 | 19 |
| 25773 | 4 G 0,75 | 6,7 | 29,0 | 97,0 | 19 |
| 25774 | 5 G 0,75 | 7,3 | 36,0 | 119,0 | 19 |
| 25775 | 7 G 0,75 | 8,7 | 50,0 | 165,0 | 19 |
| 25776 | 10 G 0,75 | 10,5 | 72,0 | 214,0 | 19 |
| 25777 | 12 G 0,75 | 11,0 | 86,0 | 247,0 | 19 |
| 25778 | 14 G 0,75 | 11,4 | 101,0 | 283,0 | 19 |
| 25779 | 18 G 0,75 | 12,6 | 130,0 | 356,0 | 19 |
| 25780 | 25 G 0,75 | 15,2 | 180,0 | 698,0 | 19 |
| 25781 | 2 x 1 | 6,6 | 19,0 | 64,0 | 18 |
| 25782 | 3 G 1 | 7,0 | 29,0 | 83,0 | 18 |
| 25783 | 4 G 1 | 7,6 | 38,5 | 113,0 | 18 |
| 25784 | 5 G 1 | 8,2 | 48,0 | 137,0 | 18 |
| 25785 | 7 G 1 | 9,6 | 67,0 | 191,0 | 18 |
| 25786 | 10 G 1 | 11,6 | 96,0 | 251,0 | 18 |
| 25787 | 12 G 1 | 12,0 | 115,0 | 294,0 | 18 |
| 25788 | 14 G 1 | 13,0 | 134,0 | 337,0 | 18 |
| 25789 | 18 G 1 | 14,5 | 173,0 | 420,0 | 18 |
| 25790 | 25 G 1 | 17,6 | 240,0 | 600,0 | 18 |
| 25791 | 2 x 1,5 | 7,1 | 29,0 | 90,0 | 16 |
| 25792 | 3 G 1,5 | 7,5 | 43,0 | 117,0 | 16 |
| 25793 | 4 G 1,5 | 8,2 | 58,0 | 147,0 | 16 |
| 25794 | 5 G 1,5 | 9,0 | 72,0 | 181,0 | 16 |
| 25795 | 7 G 1,5 | 10,8 | 101,0 | 274,0 | 16 |
| 25796 | 10 G 1,5 | 13,4 | 144,0 | 344,0 | 16 |
| 25797 | 12 G 1,5 | 13,4 | 173,0 | 391,0 | 16 |
| 25798 | 14 G 1,5 | 14,3 | 202,0 | 457,0 | 16 |
| 25799 | 18 G 1,5 | 16,0 | 259,0 | 589,0 | 16 |
| 25800 | 25 G 1,5 | 19,5 | 360,0 | 801,0 | 16 |
| 25801 | 2 x 2,5 | 8,6 | 48,0 | 128,0 | 14 |
| 25802 | 3 G 2,5 | 9,3 | 72,0 | 160,0 | 14 |
| 25803 | 4 G 2,5 | 10,3 | 96,0 | 200,0 | 14 |
| 25804 | 5 G 2,5 | 11,5 | 120,0 | 268,0 | 14 |
| 25805 | 7 G 2,5 | 13,4 | 168,0 | 357,0 | 14 |
| 25806 | 12 G 2,5 | 17,0 | 288,0 | 571,0 | 14 |
| 25807 | 14 G 2,5 | 18,5 | 336,0 | 612,0 | 14 |
| 25808 | 18 G 2,5 | 20,0 | 432,0 | 800,0 | 14 |
| 25809 | 25 G 2,5 | 29,6 | 600,0 | 1100,0 | 14 |
| 25810 | 2 x 4 | 10,4 | 77,0 | 190,0 | 12 |
| 25811 | 3 G 4 | 11,2 | 115,0 | 250,0 | 12 |
| 25812 | 4 G 4 | 12,5 | 154,0 | 320,0 | 12 |
| 25813 | 5 G 4 | 13,8 | 192,0 | 400,0 | 12 |
| 25814 | 3 G 6 | 13,0 | 173,0 | 350,0 | 10 |
| 25815 | 4 G 6 | 14,7 | 230,0 | 500,0 | 10 |
| 25816 | 5 G 6 | 16,0 | 288,0 | 580,0 | 10 |
| 25817 | 3 G 10 | 17,4 | 288,0 | 660,0 | 8 |
| 25819 | 5 G 10 | 21,3 | 480,0 | 990,0 | 8 |
| 25820 | 4 G 16 | 23,2 | 614,0 | 1200,0 | 6 |
| 25821 | 4 G 25 | 34,0 | 960,0 | 1700,0 | 4 |
| 25822 | 4 G 35 | 37,0 | 1344,0 | 2300,0 | 2 |
| 25823 | 4 G 50 | 44,0 | 1920,0 | 2500,0 | 1 |
| 25824 | 4 G 70 | 53,0 | 2688,0 | 4600,0 | 2/0 |
| 25825 | 4 G 95 | 59,0 | 3648,0 | 6400,0 | 3/0 |
