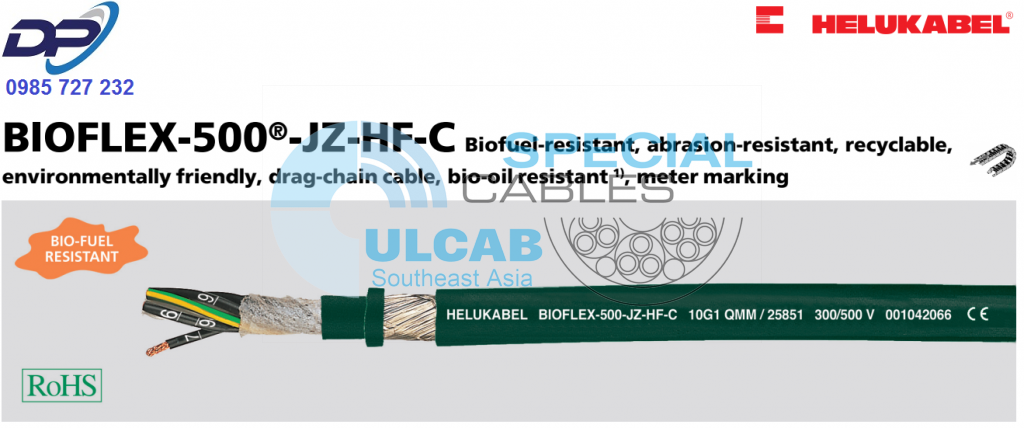

BIOFLEX-500®-JZ-HF-C

Biofuel-resistant, abrasion-resistant, recyclable, environmentally friendly, drag-chain cable, bio-oil resistant1), meter marking

Technical data

• Bio-oil resistant, abrasion resistant special
  high flexible control cable adapted to
  DIN VDE 0285-525-1 / DIN EN 50525-1
• Temperature range
  flexing -20°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  3000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 15x cable Ø
  fixed installation 4x cable Ø
• Coupling resistance
  max. 250 Ohm/km
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)

Cable structure

• Bare copper conductor, extra fine wire,
  bunch stranded to DIN VDE 0295 cl.6,
  BS 6360 cl.6 and IEC 60228 cl.6
• Core insulation of special polymer with
  improved sliding ability
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with
  optimal selected lay length
• Wrapping with fleece
• Special inner sheath
• Copper braided screening
  approx. 85% coverage
• Wrapping with fleece guarantees a good
  dismantling
• Outer sheath of special polymer compound
• Sheath colour: dark green
• With meter marking

Properties

• Resistant to
  Bio-fuel (diesel and petrol), highly resistant
  to biologically decomposable oils, Oxygene,
  Ozone, Hydrolysis and Microbes
• Low adhesion

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Unscreened analogue type:
  BIOFLEX-500^®-JZ-HF

Application

HELUKABEL^® BIOFLEX-500^®-JZ-HF-C is an extremely robust and high flexible control cable with high abrasion and tear resistant properties. Due to its high resistance to Bio-fuel, Bio-oil and coolant emulsions. It is especially suited for use in the machine, tool making and plant industries as well as in the steel industry for difficult and problem areas. Suitable in combination with cable trays in dry, moist and wet rooms and outdoor installation. The high flexibility of this cable type makes it quick and easy to install. Suitable for outdoor lying. These screened cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications (electromagnetic compatibility). For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
