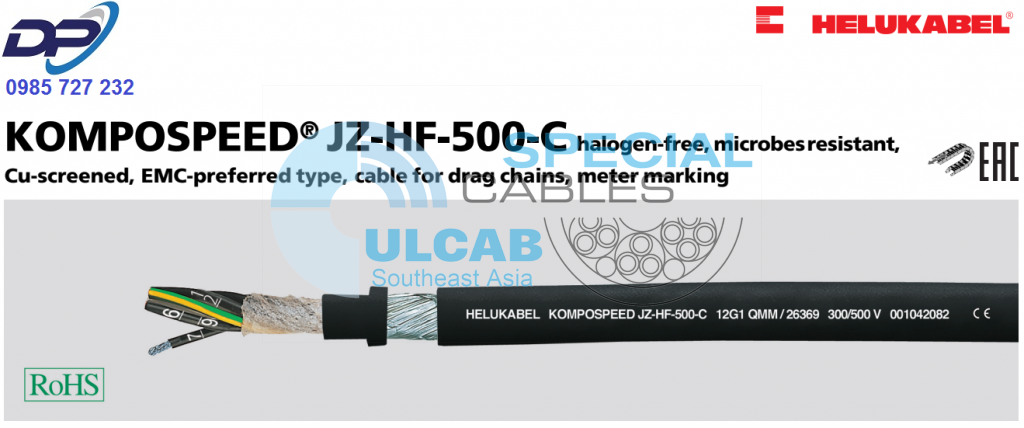

KOMPOSPEED® JZ-HF-500-C

halogen-free, microbes resistant, Cu-screened, EMC-preferred type, cable for drag chains, meter marking

Technical data

• Screened microbes resistant, halogen free
  special control cable in adapted to
  DIN VDE 0285-525-2-51 /
  DIN EN 50525-2-51
• Temperature range
  flexing -30°C to +90°C
  fixed installation -40°C to +100°C
• Nominal voltage
  U₀/U 300/500 V
• Test voltage
  core/core  4000 V
  core/screen  2000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
• Coupling resistance
  max. 250 Ohm/km
• Radiation resistance
  up to 100×10⁶ cJ/kg (up to 100 Mrad)

Cable structure

• Tinned copper conductor, extra fine wire,
  bunch stranded to DIN VDE 0295 cl.6,
  BS 6360 cl.6 and IEC 60228 cl.6
• Core insulation of special thermoplastic
  polymer with improved sliding ability
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor, 3 cores and above
  in the outer layer
• Cores stranded in layers with
  optimal selected lay length
• Wrapping with fleece
• Inner sheath with special
  thermoplastic polymer
• Screen of tinned copper braid,
  coverage approx. 85%
• Wrapping of fleece guarantees a good
  dismantling
• Outer sheath of special
  thermoplastic polymer
• Sheath colour: black (RAL 9005)
• With meter marking

Properties

• Resistant to
  UV-radiation
  Oxygene
  Ozone
  Microbes
  Hydrofluoric acid
  Hydrochloric acid
  and diluted sulfuric acid
• Low adhesion
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• G = with GN-YE conductor
  x = without GN-YE conductor (OZ)
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

HELUKABEL^® KOMPOSPEED^® JZ-HF-500-C control cable is significant due to its resistance against microbes. This cable is specially installed in rubbish, sewage-treatment plants, composting works, animal stalls and greenhouses. The inner sheaths of those cables raise the mechanical stress. For medium mechanical, stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside. This screened cable is ideal for use in data signal transmission free from interferences for measurement and control engineering technology. For applications which go beyond standard solutions (for example for composting appliances or high shelf conveyors with extremely high processing speeds etc.) we recommend for our especially developed enquiry sheet for energy guiding systems. Before installation in cable trays please read the instructions. Further technical details see selection table for drag chain cables, see chapter “Technical Informations”.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
