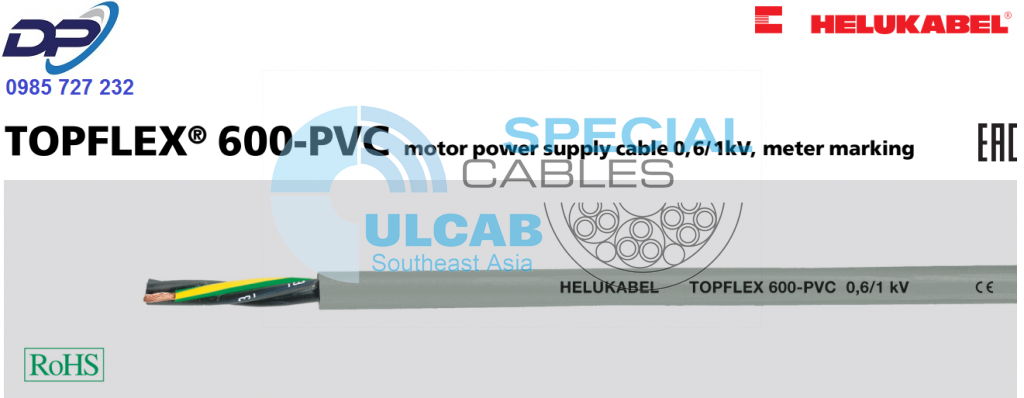

TOPFLEX^® 600-PVC

motor power supply cable 0,6/1 kV, meter marking

Technical data

• Special PVC-insulated sheathed cable
  adapted to DIN VDE 0293, 0295
• Temperature range
  flexing -15°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  U₀/U 600/1000 V
• Test voltage
  4000 V
• Breakdown voltage
  min. 8000 V
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (to 80 Mrad)

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  IEC 60228 cl.5
• Core insulation of PVC
• Core identification to DIN VDE 0293
  black cores with continuous white
  numbering
• GN-YE conductor
• Cores stranded in layers with
  optimal lay length
• Outer sheath of special PVC
• Sheath colour: grey (RAL 7001)
• With meter marking

Properties

• Extensively oil resistant,
  oil-/chemical resistance
  see “Technical Informations”
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2

Note

• For use in drag chains, we
  recommend our versions
  TOPFLEX^® 611-PUR and
  TOPFLEX^® 611-C-PUR
• Screened analogue type:
  TOPFLEX^® 600-C-PVC

Application

As supply cable for electronically controlled servo-motors and connections to DNC motors. The cable is suitable for permanent and flexible installation for medium mechanical loads in dry, damp and wet environments.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
