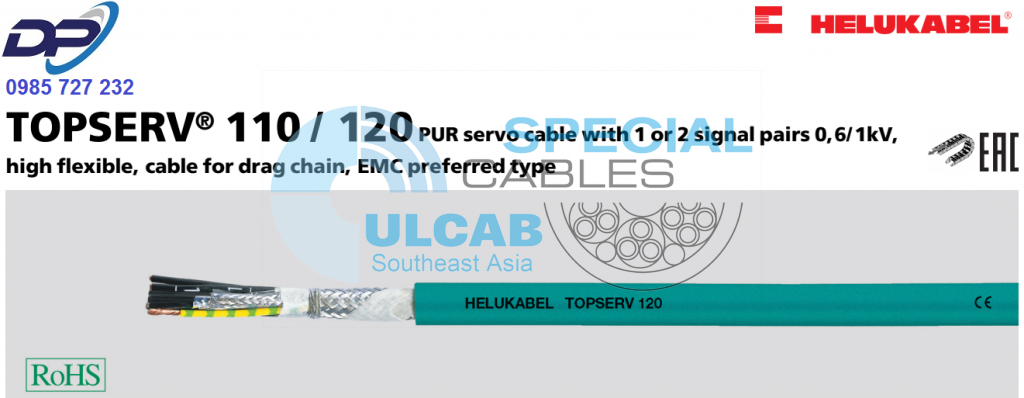

TOPSERV® 110

PUR servo cable with 1 or 2 signal pairs 0,6/1 kV, high flexible, cable for drag chain, EMC-preferred type

Technical data

• Spezial-PUR drag chain cable
  adapted to DIN VDE 0295, 0250,
  DIN VDE 0285-525-1-1/DIN EN 50525-1
• Temperature range
  flexing -30°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  power supply cores U₀/U 600/1000 V
  control cores U₀/U 300/500 V
• Test voltage
  power supply cores 4000 V
  control cores 1000 V
• Power rating
  to DIN VDE 0298-4
• Insulation resistance
  min. 20 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Coupling resistance
  max. 250 Ohm/km

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.6, extra fine wire
• Core insulation of halogen-free PP
• Core identification
  power supply cores
  core 1: black with imprint U/L1/C/L+
  core 2: black with imprint V/L2
  core 3: black with imprint W/L3/D/L-
  control cores
  TOPSERV^® 110
  core 1 black with imprint BR1
  core 2 black with imprint BR2
  TOPSERV^® 120
  pair 1: black with number no. 5+6
  pair 2: black with number no. 7+8
• GN-YE conductor
• Screening of the control cores in pairs,
  tinned drain wire and
  tinned Cu braid
• Control cores stranded in pairs and laid up in
  layers together with the power supply cores
• Foil wrapping
• Overall screening of tinned cu braid,
  visible coverage min. 80%
• Fleece wrapping
• Outer sheath of PUR
• Sheath colour: petrol (RAL 5018)

Properties

• Low capacitance by using PP as core
  insulation
• PUR-outer sheath low adhesion,
  resistant to hydrolysis and microbial attack,
  halogen-free
• These highly flexible cables are fitted with
  an additional overall screen to assure EMC
  compatibility, i.e. the protection against
  electromagnetic interference
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• For extreme applications extending beyond
  standard solutions we recommend that
  you request our questionnaire, which has
  been especially designed for energy supply
  systems.
• Please observe applicable installation
  regulations for use in energy supply chains.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².
• Servo-cable and Feedback-cable
  with UL-approval to e.g. Siemens,
  Bosch Rexroth, Lenze etc. can be
  found in chapter N …

Application

The combination of feeder cores with the control cores for the braking function and the thermal protection in these cables is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. These requirements are met to a high degree as is the electromagnetic compatibility (EMC). These cables can also be used as drag chain cables. Manufacturing is based on specifications from renowned manufacturers of servo-actuators and servo-controls as well as in accordance with diverse VDE standards. Application for system SIMODRIVE.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance

TOPSERV® 110(1 pair screened and overall screening)
