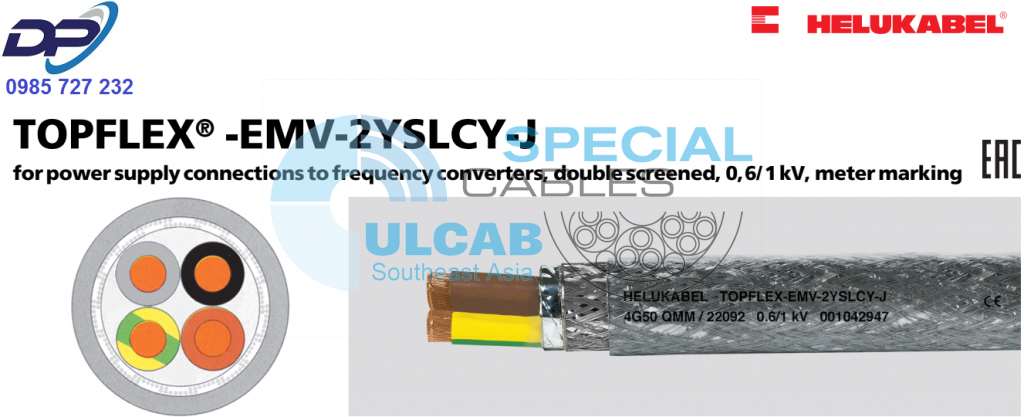

TOPFLEX® -EMV-2YSLCY-J

for power supply connections to frequency converters, 0,6/1 kV, double screened, meter marking

Technical data

• Special motor power supply cable for
  frequency converters adapted to
  DIN VDE 0250
• Temperature range
  flexing +5°C to +70°C
  fixed installation -40°C to +70°C
• Nominal voltage
  U₀/U 600/1000 V
• Max. permissible operating voltage
  – 3-Phase and single phase
  operation  700/1200 V
  – DC operation  900/1800 V
• Test voltage
  4000 V
• Coupling resistance
  acc. to different cross sections
  max. 250 Ohm/km
• Minimum bending radius
  flexing for cable Ø:
  up to 12 mm: 10x cable Ø
  > 12 mm: 15x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of polyethylene (PE)
• Core identification BN, BK, GY
• GN-YE conductor
• Cores stranded in concentric layers
• 1. Screen with special aluminium film
  2. Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath of special PVC
• Sheath colour: transparent
• With meter marking

Properties

• Low mutual capacitance
• Low coupling resistance for high
  electromagnetic compatibility
• This screened motor supply cable with
  low mutual capacitance of the single cores
  because of the special PE core insulation
  and low screen capacitance enable a low-loss
  transmission of the power compared to
  PVC-sheathed connecting cables
• Due to the optimal screening an
  interference-free operation of
  frequency converters is obtained
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1-2
  (equivalent DIN VDE 0472 part 804
  test method B)
• Meets EMC requirements acc. to
  EN 55011 and DIN VDE 0875 part 11

Note

• G = with GN-YE conductor
• ^**) The current carrying capacity for
  permanent operation at ambient temperature
  of 30°C. For deviating ambient temperatures
  the conversion factors should be used and
  for further see the indication in
  DIN VDE 0298-4.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

As a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments, not however for outdoor applications. Used in the automotive and food industries, environmental technology, packaging industry, chemical industry.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance
