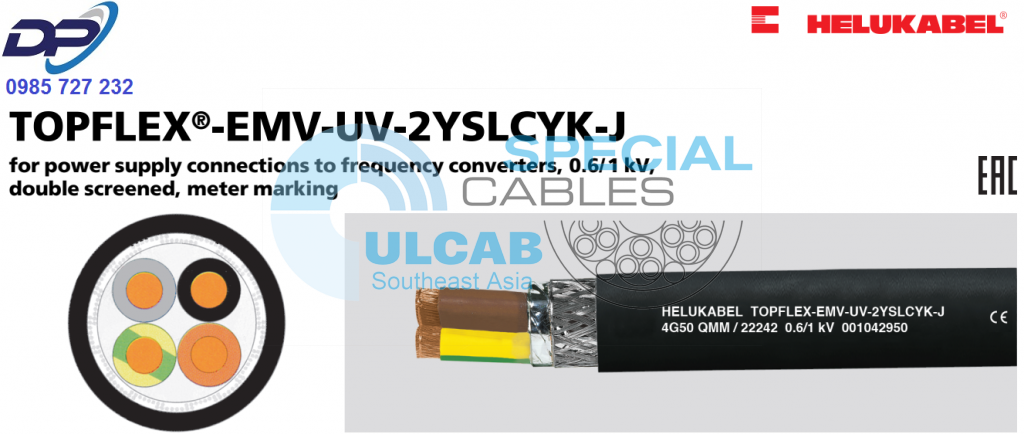

TOPFLEX®-EMV-UV-2YSLCYK-J

for power supply connections to frequency converters, 0.6/1 kV,
double screened, meter marking

Logo Image

Technical data

  • Special motor power supply cable for
    frequency converters adapted to
    DIN VDE 0250
  • Temperature range
    flexing -5°C to +70°C
    fixed installation -40°C to +70°C
  • Nominal voltage
    U0/U 600/1000 V
  • Max. permissible operating voltage
    – 3-Phase and single phase
    operation  700/1200 V
    – DC operation  900/1800 V
  • Test voltage
    4000 V
  • Coupling resistance
    acc. to different cross sections
    max. 250 Ohm/km
  • Minimum bending radius
    flexing for cable Ø:
    up to 12 mm: 10x cable Ø
    > 12 mm: 15x cable Ø
    fixed installation 4x cable Ø
  • Radiation resistance
    up to 80×106 cJ/kg (up to 80 Mrad)

Cable structure

  • Bare copper conductor, to
    DIN VDE 0295 cl.5, fine wire,
    BS 6360 cl.5, IEC 60228 cl.5
  • Core insulation of polyethylene (PE)
  • Core identificdation BN, BK, GY
  • GN-YE conductor
  • Cores stranded in concentric layers
  • 1. Screen with special aluminium film
    2. Tinned copper braided screen,
    approx. 85% coverage
  • Outer sheath of special PVC
  • Sheath colour: black (RAL 9005)
  • With meter marking

Properties

  • Low mutual capacitance
  • Low coupling resistance for high
    electromagnetic compatibility
  • UV-resitant
  • Outdoor application
  • This screened motor supply cable with
    low mutual capacitance of the single cores
    because of the special PE core insulation
    and low screen capacitance enable a low-loss
    transmission of the power compared to
    PVC-sheathed connecting cables
  • Due to the optimal screening an
    interference-free operation of
    frequency converters is obtained
  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PVC self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2,
    DIN EN 60332-1-2, IEC 60332-1-2
    (equivalent DIN VDE 0472 part 804
    test method B)
  • Meets EMC requirements acc. to
    EN 55011 and DIN VDE 0875 part 11
  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².

Note

  • **) The current carrying capacity for
    permanent operation at ambient temperature
    of 30°C. For deviating ambient temperatures
    the conversion factors should be used and
    for further see the indication in
    DIN VDE 0298-4.

Application

As a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments and for outdoor applications, possible for installation in underground at 4G16 mm². Used in the automotive and food industries, environmental technology, packaging industry, chemical industry.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance

Part no. No.cores x
cross-sec.
mm²
Outer Ø

app. mm

Mutual capacitance Coupling resistance Power ratings **)

with 3 loaded cores

in Amperes

Cop.
weight

kg / km

Weight

app. kg / km

AWG-No.
Core / Core

app. nF / km

Core / Screen

app. nF / km

at 1 MHz

Ohm/km

at 30 MHz

Ohm/km

22234 4 G 1,5 10,1 70 110     18 95,0 230,0 16
22235 4 G 2,5 11,9 80 130 18 210 26 150,0 300,0 14
22236 4 G 4 13,6 90 150 11 210 34 235,0 485,0 12
22237 4 G 6 15,3 90 150 6 150 44 320,0 630,0 10
22238 4 G 10 19,4 120 200 7 180 61 533,0 860,0 8
22239 4 G 16 22,4 120 210 9 190 82 789,0 1290,0 6
22240 4 G 25 26,7 140 230 4 95 108 1236,0 1860,0 4
22241 4 G 35 29,3 150 260 3 85 135 1662,0 2610,0 2
22242 4 G 50 34,1 190 320 2 40 168 2345,0 2950,0 1
22243 4 G 70 39,0 190 320 2 45 207 3196,0 3950,0 2/0
22244 4 G 95 44,0 250 410 1 50 250 4316,0 5300,0 3/0
22245 4 G 120 48,7         292 5435,0 6600,0 4/0
22246 4 G 150 54,2         335 6394,0 7040,0 300 kcmil
22247 4 G 185 60,6         382 7639,0 8380,0 350 kcmil
