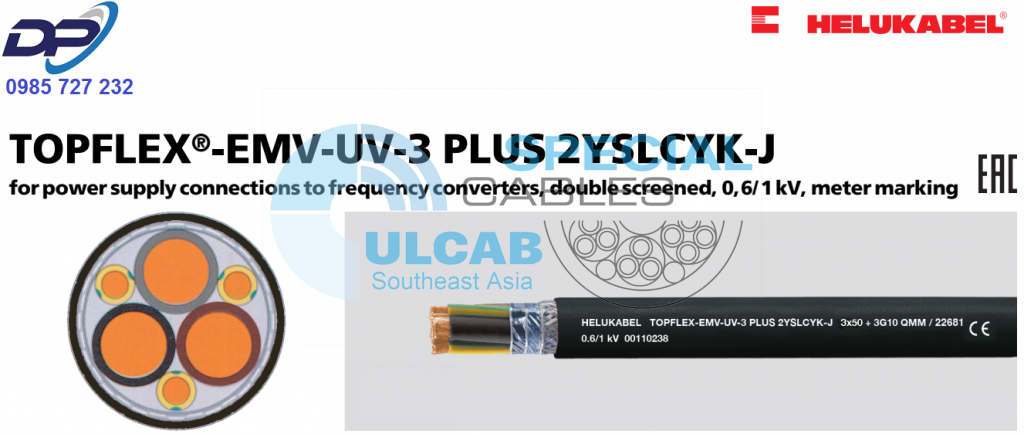

TOPFLEX®-EMV-UV-3 PLUS 2YSLCYK-J

for power supply connections to frequency converters, 0,6/1 kV, double screened, meter marking

Technical data

• Special motor power supply cable for
  frequency converters adapted to
  DIN VDE 0250
• Temperature range
  flexing -5°C up to +70°C
  fixed installation -40°C up to +70°C
• Nominal voltage
  U₀/U 600/1000 V
• Max. permissible operating voltage
  – 3-Phase and single phase
  operation  700/1200 V
  – DC operation  900/1800 V
• Test voltage
  4000 V
• Coupling resistance
  acc. to different cross sections
  max. 250 Ohm/km
• Minimum bending radius
  flexing for cable Ø:
  up to 12 mm: 10x cable Ø
  > 12 mm: 15x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of polyethylene (PE)
• Core identification BK, BN, GY
• GN-YE conductor (divided into 3)
• 3+3 core design
• Cores stranded in concentric layers
• 1. Screen with special aluminium film
  2. Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath of special PVC
• Sheath colour: black (RAL 9005)
• With meter marking

Properties

• Low mutual capacitance
• Low coupling resistance for high
  electromagnetic compatibility
• Due to the optimal screening an
  interference-free operation of
  frequency converters is obtained
• The 3 PLUS-construction of motor power
  supply cables features a symmetrical
  3-core design, improved in terms of EMC
  characteristics comparing favorably with a
  4-core version. The protective conductor
  PE, divided into 3 is uniformly stranded in
  the interstices. This enables an extremely
  concentric structure.
• The minimum cross section of 0,75 mm²
  meets the requirements of DIN EN 60204-1
• UV-resistant
• Outdoor application
• This screened motor supply cable with
  low mutual capacitance of the single cores
  because of the special PE core insulation
  and low screen capacitance enable a low-loss
  transmission of the power compared to
  PVC-sheathed connecting cables
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1-2
  (equivalent DIN VDE 0472 part 804
  test method B)
• Meets EMC requirements acc. to
  EN 55011 and DIN VDE 0875 part 11

Note

• ^**) The current carrying capacity for
  permanent operation at ambient temperature
  of 30°C. For deviating ambient temperatures
  the conversion factors should be used and
  for further see the indication in
  DIN VDE 0298-4.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

As a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments and for outdoor applications, possible for installation in underground at 3×16+3G2,5 mm². Used in the automotive and food industries, environmental technology, packaging industry, chemical industry.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
