Technical data

• Special motor power supply cable for
  frequency converters
• Temperature range
  flexing -5°C to +70°C
  fixed installation -40°C to +80°C
• Permissible operating temperature
  at conductor +90°C
• Nominal voltage
  U₀/U 600/1000 V
• Max. permissible operating voltage
  – 3-Phase and single phase
  operation  700/1200 V
  – DC operation  900/1800 V
• Test voltage
  2500 V
• Coupling resistance
  acc. to different cross sections
  max. 250 Ohm/km
• Mutual capacitance
  acc. to different cross sections
  core/core 70 to 250 pF/m
  core/screen 110 to 410 pF/m
• Minimum bending radius
  free-movement for outer Ø:
  up to 12 mm: 10x cable Ø
  > 12-20 mm: 15x cable Ø
  > 20 mm: 20x cable Ø
  fixed installation for outer Ø:
  up to 12 mm: 5x cable Ø
  > 12-20 mm: 7,5x cable Ø
  > 20 mm: 10x cable Ø
• Radiation-resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

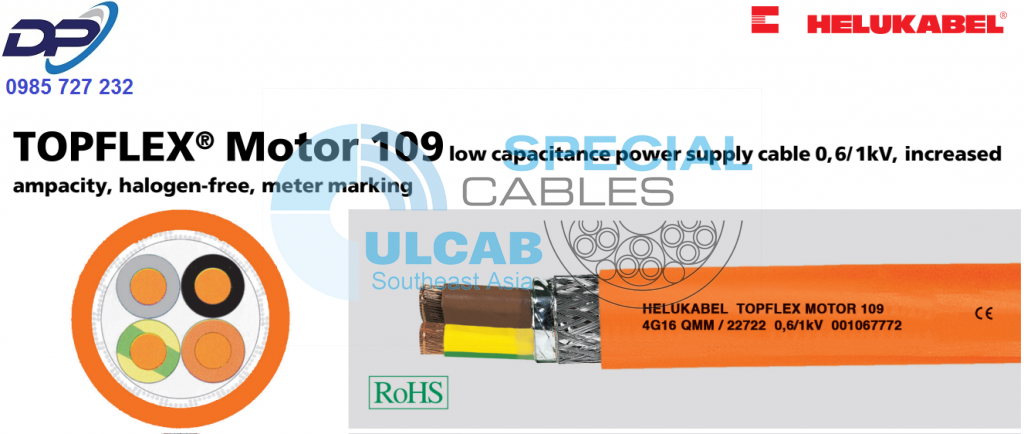

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insualtion of special Polymer
• Core identification to DIN VDE 0293-308
  – up to 5 cores coloured
  – from 7 cores, black with continuous
  white numbering
• GN-YE conductor
• Cores stranded in concentric layers
• 1. Screen with special aluminium film
  2. Tinned copper braided screen,
  approx. 80% coverage
• Outer sheath of special PUR
• Sheath colour: orange (RAL 2003)
• With meter marking

Properties

• Special polymerinsulation ensures low
  dielectric losses, a dual voltage resistance,
  longer service life and low – interference
  shield, and increased current carrying
  capacity
• Low coupling resistance for high
  electromagnetic compatibility
• UV-resistant
• Outdoor application
• This screened motor supply cable with
  low mutual capacitance of the single
  cores because of the special Polymer
  core insulation and low screen capacitance
  enable a low-loss transmission of the
  power compared to PVC-sheathed
  connecting cables
• Due to the optimal screening an
  interference-free operation of frequency
  converters is obtained
• Design acc. to the requirements of
  VdS 3501:2006-04
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• Low mutual capacitance, test acc. to
  DIN VDE 0472 part 504, test method B
• Meets EMC requirements acc. to
  EN 55011 and DIN VDE 0875 part 11

Note

• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

This motor power supply cable for the frequency converters assures electromagnetic compatibility in plants and buildings, facilities with units and operating equipment where the fields of electromagnetic interference might cause adverse effects on the surroundings. As a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments and for outdoor applications. Used in the automotive and food industries, environmental technology, packaging industry, machine tools. Handling equipment, for SIMOVERT drives, they are particularly suitable for use with industrial pumps, ventilators, conveyor belts and air-conditioning installations and similar applications.
EMC = Electromagnetic compatibility
The screen must be connected at both ends and ensure large-area contact over the entire cable circumference for compliance with the functional interference requirements of EN 55011.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
