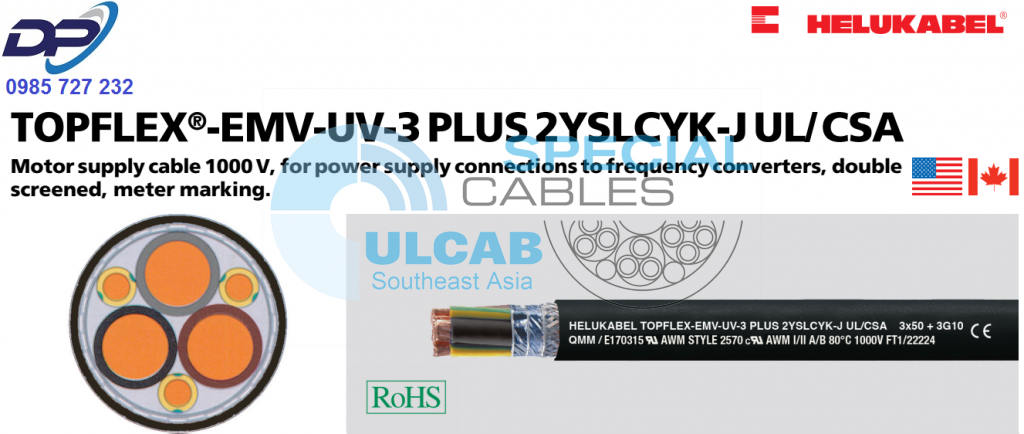

TOPFLEX®-EMV-UV-3 PLUS 2YSLCYK-J UL/CSA

Motor supply cable 1000 V, for power supply connections to frequency converters, double screened, meter marking

Technical data

• Special motor power supply cable for
  frequency converters to Style 2570
• Temperature range
  flexing -5°C to +80°C
  fixed installation -40°C to +80°C
• Nominal voltage
  UL 1000 V
• Test voltage
  4000 V
• Insulation resistance
  min. 200 MOhm x km
• Coupling resistance
  acc. to different cross section
  max. 250 Ohm/km
• Minimum bending radius
  fixed installation for outer Ø:
  up to 12 mm: 5x cable Ø
  > 12-20 mm: 7,5x cable Ø
  > 20 mm: 10x cable Ø
  free-movement for outer Ø:
  up to 12 mm: 10x cable Ø
  > 12-20 mm: 15x cable Ø
  > 20 mm: 20x cable Ø
• Radiation resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper conductor, fine wire, to
  DIN VDE 0295 cl.5, BS 6360 cl.5 and
  IEC 60228 cl.5
• Core insulation of polyethylene (PE)
• Core identification BK, BN, GY
• GN-YE conductor (divided into 3)
• Cores stranded in concentric layers
• 3+3 core design
• 1. Screen with special aluminium film
  2. Tinned copper braided screen,
  approx. 85% coverage
• Outer sheath of special PVC
• Sheath colour: black (RAL 9005)
• With meter marking

Properties

• Low mutual capacitance
• Low coupling resistance for high
  electromagnetic compatibility
• Due to the optimal screening an
  interference-free operation of frequency
  converters is obtained
• The 3 Plus-construction of motor power
  supply cables features a symmetrical
  3-core design, improved in terms of EMC
  characteristics comparing favorably with a
  4-core version. The protective conductor
  PE, divided into 3 is uniformly stranded in
  the interstices. This enables an extremely
  concentric structure.
• The minimum cross section of 0,75 mm²
  meets the requirements of DIN EN 60204-1
• uv-resistant
• Outdoor application
• This screened motor supply cable with low
  mutual capacitance of the single cores
  because of the special PE core insulation
  and low screen capacitance enable a
  low-loss transmission of the power
  compared to PVC-sheathed connecting
  cables
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-1-2 / IEC 60332-1-2
• Meets EMC requirements acc. to
  EN 55011 and DIN VDE 0875-11

Note

• ^**) The current carrying capacity for
  permanent operation at ambient temperature
  of 30°C. For deviating ambient temperatures
  the conversion factors should be used and
  for further see the indication in
  DIN VDE 0298-4.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

It is used as a connection and connecting cable under average mechanical stress for fixed installation and sometimes for free movement in dry, moist and wet rooms and outside. It is used in the automotive industry, food processing industry, transfer streets, packaging industry, machine tools, handling equipment, in the industry it is used for pumps, fans, transport belts and in air condition systems, etc. Used in explosion proof areas.
EMC = Electromagnetic compatibility
The screen must be connected at both ends and ensure large-area contact over the entire cable circumference for compliance with the functional interference requirements of EN 55011.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
