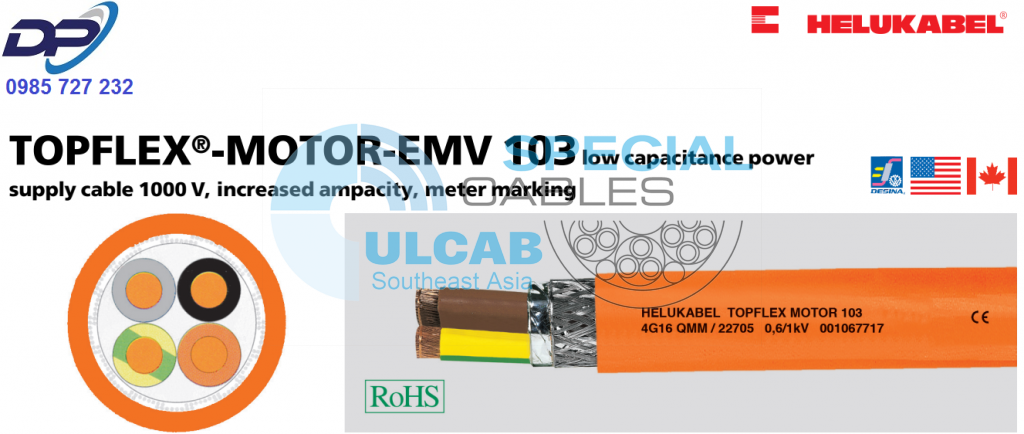

TOPFLEX^® MOTOR EMV 103

low capacitance power supply cable 1000 V, increased ampacity, meter marking

Technical data

• Special motor power supply cable
  for frequency converters acc. to
  UL-AWM style 21179
• Temperature range
  flexing -5°C to +70°C
  fixed installation -40°C to +80°C
• Permissible operating temperature
  at conductor +90°C
• Nominal voltage
  VDE U₀/U 600/1000 V
  UL 1000 V
• Test voltage 2500 V
• Insulation resistance
  min. 200 MOhm x km
• Coupling resistance
  acc. to different cross sections
  max. 250 Ohm/km
• Mutual capacitance
  acc. to different cross sections
  core/core 70 to 250 nF/km
  core/screen 110 to 410 nF/km
• Minimum bending radius
  fixed installation for outer Ø:
  up to 12 mm: 5x cable Ø
  > 12-20 mm: 7,5x cable Ø
  > 20 mm: 10x cable Ø
  free-movement for outer Ø:
  up to 12 mm: 10x cable Ø
  > 12-20 mm: 15x cable Ø
  > 20 mm: 20x cable Ø
• Radiation-resistance
  up to 80×10⁶ cJ/kg (up to 80 Mrad)

Cable structure

• Bare copper, fine wire conductor to
  DIN VDE 0295 cl.5, BS 6360 cl.5 or
  IEC 60228 cl.5
• Core insulation of special-polymer
• Core identification to DIN VDE 0293-308
  – up to 5 cores coloured
  – from 7 cores, black with continuous
  white numbering
• GN-YE conductor
• Cores stranded in concentric layers
• 1. Screen with special aluminium film
  2. Tinned copper braided screen,
  coverage approx. 80%
• Outer sheath of special PVC
• Sheath colour: orange (RAL 2003)
• With meter marking

Properties

Tests

• PVC self-extinguishing and flame retardant
  acc. to DIN VDE 0482-332-1-2,
  DIN EN 60332-1-2, IEC 60332-1 (equivalent
  DIN VDE 0472 part 804 test method B)
• Features Special-Polymer-insulation secures
  a lower dielectric loss, double potential
  strength, high longevity and low
  screen-interference currents to include
  increased current carrying capacity
• Meets EMC requirements acc. to
  EN 55011 and DIN VDE 0875 part 11
• Low coupling resistance for high
  electromagnetic compatibility
• This screened motor supply cable with low
  mutual capacitance of the single cores
  because of the special Polymer core
  insulation and low screen capacitance
  enable a low-loss transmission of the power
  compared to PVC-sheathed connecting
  cables
• Due to the optimal screening an
  interference-free operation of frequency
  converters is obtained
• Design acc. to the requirements of
  VdS 3501:2006-04
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Note

• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

This UL/CSA motor power supply cable for the frequency converters assures electromagnetic compatibility in plants and buildings, facilities with units and operating equipment where the fields of electromagnetic interference might cause adverse effects on the surroundings. As a supply and connecting cable for medium mechanical stresses in fixed installations and forced movements in dry, moist and wet environments. Used in the automotive and food industries, environmental technology, packaging industry, machine tools. Handling equipment, for SIMOVERT drives, they are particularly suitable for use with industrial pumps, ventilators, conveyor belts and air-conditioning installations and similar applications. Installation in hazardous areas.
EMC = Electromagnetic compatibility
The screen must be connected at both ends and ensure large-area contact over the entire cable circumference for compliance with the functional interference requirements of EN 55011.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
