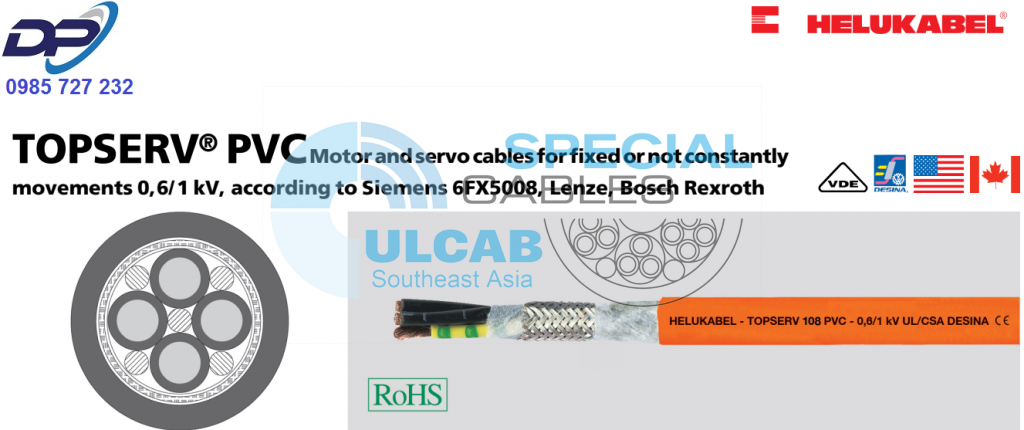

TOPSERV® 112 PVC (for System Lenze)

Motor and servo cables for fixed or not constantly movements 0,6/1 kV, acc. to Siemens 6FX5008, Lenze, Bosch Rexroth

Technical data

• Special PVC Motorcable acc. to
  UL AWM Style 2570 CSA AWM
  VDE-recognized
• Temperature range
  flexing -0°C to +60°C
  fixed installation -20°C to +80°C
• Nominal voltage
  VDE U₀/U 600/1000 V
  UL/CSA 1000 V
• A.c. test voltage, 50 Hz
  4000 V
• Minimum bending radius
  flexing 15x cable Ø
  fixed installation 5x cable Ø
  min. 100.000 cycles

Cable structure

• Bare copper conductor,
  acc. to DIN EN 60228
  class 5: fine wire
  class 6: extra fine wire
• Core insulation
  to 6 mm² of halogen-free PP
  from 10 mm² of PVC
• Core identification
  power supply cores
  core 1: black with imprint U/L1/C/L+
  core 2: black with imprint V/L2
  core 3: black with imprint W/L3/D/L–
  control cores
  TOPSERV^® 108 PVC without control cores
  TOPSERV^® 112 PVC with 1 control cores
  acc. to Siemens
  core 1: black with imprint BR1
  core 2: white with imprint BR2
  acc. to Lenze
  core 1: brown with imprint BR1
  core 2: white with imprint BR2
  TOPSERV^® 119 PVC with 2 control cores
  pair 1: black with number no. 5+6
  pair 2: black with number no. 7+8
• GN-YE conductor
• Screening of the control cores in pairs
  wrapped with tinned copper braid
• Power supply cores laid up
  with optimal lay length and
  stabilising filler
• Fleece wrapping facilitates sliding
• Overall screening from tinned copper
  braid, optimal coverage approx. 85%
• Outer sheath of PVC
• Sheath colour: orange (RAL 2003)

Properties

• low capacitance until 6 mm² (included)
• oilresistant PVC outer sheath
• Optimum compliance with requirements
  for electromagnetic compatibility (EMC)
  by approx. 85% coverage from the
  braided screen
• These cables are produced to high quality
  specifications and conform to the
  DESINA®-standard
• The materials used during manufacturing
  are cadmium-free, contain no silicone
  and are free from substances harmful
  to the wetting properties of lacquers

Tests

• PVC sheath flame retardant acc. to
  DIN EN 60332-1-1 to -1-3
  (VDE 0482-332-1-1 to -1-3)

Note

• For a corresponding encoder cables please check chapter TOPGEBER 511 PVC
• For highly flexible, drag chain capable servo cables please check cahpter TOPSERV^® PUR
• Brackets ( ) indicate screen
• DESINA® explanation see introduction
• SIEMENS product designations 6FX 5008-plus are registered trademarks of Siemens AG and are to be used only for purposes of comparison
• Lenze product designations are registered trademarks of Lenze AG and are to be used only for purposes of comparison
• Bosch Rexroth product designations INK are registered trademarks of Bosch Rexroth AG and are to be used only for purposes of comparison

Application

The combination of supply cores with the control cores for the braking function and the thermal protection in these cables is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. These requirements are met to a high degree by these cables. The cables have an additional overall screen to ensure EMC compatibility, i.e. for protection against electromagnetic interference. Production is based on the specifications of established manufacturers of servo-drives and controls, as well as on various VDE, UL and CSA standards.
Applications include machine, plant and robot construction, automation, drive, control and production engineering.
Attractive for export-oriented mechanical and system engineering.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

TOPSERV® 112 PVC, acc.to Lenze
