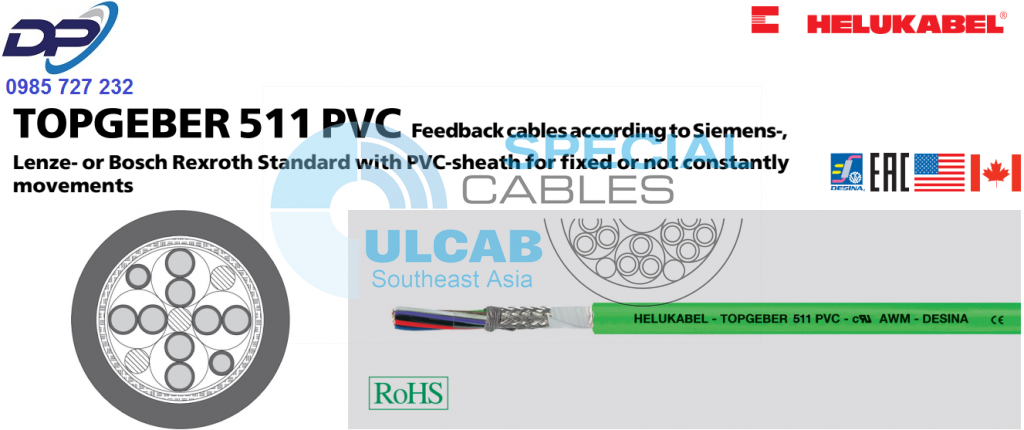

TOPGEBER 511 PVC |
Feedback cables with acc. to Siemens-, Lenze- or Bosch Rexroth Standard
|
    |
Technical data
- Special PVC feedback cable acc. to UL AWM
style 20233 and CSA - Temperature range
flexing -0°C to +60°C
fixed installation -20°C to +80°C - Nominal voltage
acc. to Siemens 30 V
acc. to Bosch Rexroth and Lenze 300 V - A.c. test voltage, 50 Hz
core/core 1500 V
core/screen 1000 V - Minimum bending radius
flexing 15x cable Ø
fixed installation 6x cable Ø
min. 100.000 cycles
Cable structure
- Copper-conductor bare or tinned to
DIN VDE 0295 cl.6, extra fine wire,
IEC 60228 cl.6 - Core insulation of special polypropylene
- Core colours on request
- Overall screening of tinned copper wire
braid with tinned drain wire, coverage
approx. 85% - Polyester foil
- Outer sheath of PVC
- Sheath colour: green (RAL 6018)
acc. to DESINA® or orange
Properties
- Outer sheath of PVC, oilresistant
- Optimum compliance with requirements
for elect romagnetic compatibility (EMC) by
approx. 85% coverage from the braided
screen - These cables are produced to high quality
specifications and conform to the
DESINA®-standard - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- PVC sheath flame retardant acc. to
DIN EN 60332-1-1 bis -1-3
(VDE 0482-332-1-1 bis -1-3)
Note
- For a corresponding motor- and servocables please check chapter TOPSERV® PVC
- For drag chain capable encoder cables please check chapter TOPGEBER 512 PUR
- Brackets ( ) indicate screen.
- SIEMENS product designations 6FX 5008-… are registered trademarks of Siemens AG and are to be used only for purposes of comparison.
- INDRAMAT product designations INK- are registered trademarks of Bosch-Rexroth AG and are to be used only for purposes of comparison.
- LENZE product designations are registered trademarks of LENZE AG, and are to be used only for purposes of comparison.
- DESINA®: Explanation: see introduction.
Application
Low cost alternativ to Motorcables with PUR Sheath for fix instalation or occasional moving applications. These low-capacitance incremental encoder cables or position feedback cables transmit the control pulses for positioning and operating characteristics of servomotors. These cables are used as connecting cables for tachos, brakes and pulse generators in industrial equipment, machine tools, control and automation equipment.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
| Part no. |
No.cores x cross-sec. mm² |
for
system |
OEM
Part no. |
Sheath colour |
Outer Ø
app. mm |
Cop. weight kg / km |
Weight
app. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|---|---|
| 707417 | (4 x 2 x 0,34 + 4 x 0,5) | Siemens | 6FX 5008-1BD21 | Green | 8,9 | 70,3 | 117,8 | – |
| 707389 | (3 x (2 x 0,14) + 4 x 0,14 + 2 x 0,5) | Siemens | 6FX 5008-1BD41 | Green | 8,8 | 58,0 | 118,9 | – |
| 707390 | (3 x (2 x 0,14) + 4 x 0,14 + 4 x 0,25 + 2 x 0,5) | Siemens | 6FX 5008-1BD51 | Green | 9,6 | 70,7 | 137,7 | – |
| 803672 | (2 x 2 x 0,22 + 1 x 2 x 0,34) | Siemens | 6FX 5008-2DC00 | Green | 6,9 | 38,0 | 61,0 | – |
| 802471 | (2 x 2 x 0,22) | Siemens | 6FX 5008-1DC00 | Green | 6,9 | 35,0 | 71,0 | – |
| 705461 | (4 x 2 x 0,25 + 2 x 0,5) | Bosch Rexroth | INK-0448 | Orange | 8,4 | 50,0 | 99,0 | – |
| 707392 | (4 x 2 x 0,25 + 2 x 1,0) | Bosch Rexroth | INK-0209 | Orange | 8,8 | 64,0 | 119,0 | – |
| 707394 | (4 x 2 x 0,14 + 4 x 1,0 + (4 x 0,14)) | Bosch Rexroth | INK-0532 | Orange | 9,7 | 86,0 | 149,0 | – |
| 707077 | 3 x (2 x 0,14) + (2 x 0,5) | Lenze | – | Green | 9,3 | 54,0 | 95,0 | – |
| 707397 | 4 x (2 x 0,14) + (2 x 1,0) | Lenze | – | Green | 11,0 | 70,0 | 145,0 | – |
| 707398 | 3 x (2 x 0,14) + (3 x 0,14) | Lenze | – | Green | 9,2 | 41,0 | 102,0 | – |
