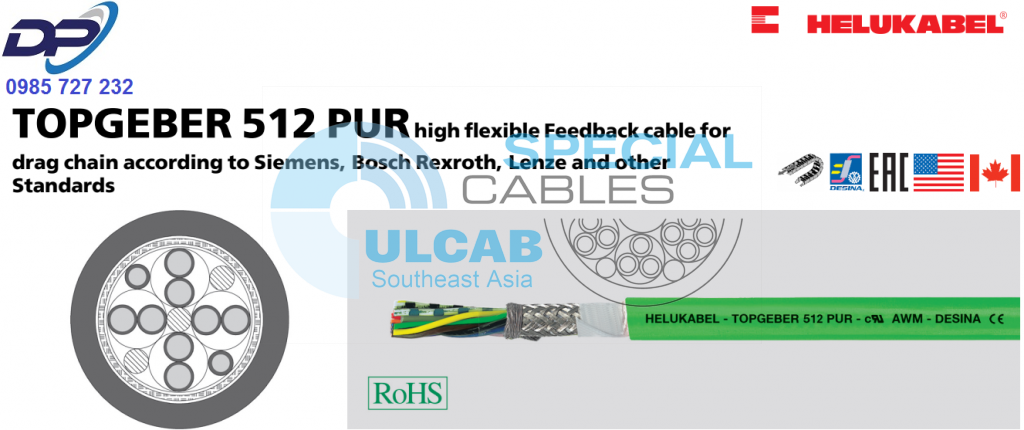

TOPGEBER 512 PUR
high flexible Feedback cable for drag chain acc. to Siemens-, Bosch Rexroth, Lenze and other Standards
Technical data
- Special PUR drag chain feedback cable
acc. to UL AWM style 20233 and 20236
and CSA - Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C - Nominal voltage
acc. to Siemens 30 V
acc. to Bosch Rexroth and Lenze 300 V
further details on request - A.c. test voltage, 50 Hz
core/core 2000 V
core/screen 1000 V - Mutual capacitance at 800 Hz
core/core approx. 70 pF/m
core/screen approx. 110 pF/m - Insulation resistance
min. 20 MOhm x km - Coupling resistance
max. 250 Ohm - Minimum bending radius
flexing 10x cable Ø
fixed installation 6x cable Ø
Cable structure
- Tinned copper conductor, to
DIN VDE 0295 cl.6, extra fine wire,
BS 6360 cl.6, IEC 60228 cl.6 - Core insulation of special polypropylene
- Core colours on demand
- Fleece wrapping facilitates sliding
- Overall screening of tinned copper wire
braid with tinned drain wire, coverage
approx. 85% - Polyester foil
- Outer sheath of PUR
- Sheath colour: green (RAL 6018)
acc. to DESINA® or orange
Properties
- PUR outer sheath, low adhesion, extremely
abrasion resistant, halogen-free, resistant
to UV-, oil-, hydrolysis and microbial attack - Special feature: These cables are produced
to high quality specifications and conform
to the DESINA®-standard - Due to the high grade special core
insulation, the PUR sheath and the highly
flexible conductor, these cables are ideally
suitable for use in drag chains and provide
high functional reliability - Optimum compliance with requirements
for electromagnetic compatibility (EMC) by
approx. 85% coverage from the braided
screen - Particularly attractive for export-oriented
markets due to UL/CSA approval - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers - Resistant to cleaning and disinfecting
agents acc. to ECOLAB®
Note
- For a corresponding motor- and servocables please check chapter TOPSERV® PUR
- Encoder cables for static application please check chapter TOPGEBER 511 PVC
- Brackets ( ) indicate screen.
- SIEMENS product designations 6FX 8008-… are registered trademarks of Siemens AG and are to be used only for purposes of comparison.
- Bosch Rexroth product designations INK- are registered trademarks of Bosch-Rexroth AG and are to be used only for purposes of comparison.
- DESINA®: Explanation: see introduction.
Application
These low-capacitance incremental encoder cables or position feedback cables transmit the control pulses for positioning and operating characteristics of servomotors. These cables are used as connecting cables for tachos, brakes and pulse generators in applications subjected to heavy mechanical stresses in industrial equipment, machine tools, control and automation equipment. Please observe applicable installation regulations for use in energy supply chains.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
| Part no. |
No.cores x cross-sec. mm² |
for
system |
OEM
Part no. |
Sheath colour |
Outer Ø
app. mm |
Cop. weight kg / km |
Weight
app. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|---|---|
| 700655 | (8 x 2 x 0,18) | Siemens | 6FX 8008-1BD11 | Green | 7,8 | 54,0 | 79,0 | 24 |
| 78081 | (4 x 2 x 0,34 + 4 x 0,5) | Siemens | 6FX 8008-1BD21 | Green | 9,8 | 83,0 | 135,0 | 21 |
| 707400 | (3 x (2 x 0,14) + 2 x 0,5) | Siemens | 6FX 8008-1BD31 | Green | 9,0 | 74,0 | 119,0 | 21 |
| 700657 | (3 x (2 x 0,14) + 4 x 0,14 + 2 x 0,5) | Siemens | 6FX 8008-1BD41 | Green | 8,9 | 66,0 | 120,0 | 26 |
| 700540 | (3 x (2 x 0,14) + 4 x 0,14 + 4 x 0,25 + 2 x 0,5) | Siemens | 6FX 8008-1BD51 | Green | 9,6 | 75,0 | 138,0 | – |
| 700654 | (4 x 2 x 0,18) | Siemens | 6FX 8008-1BD61 | Green | 6,4 | 35,0 | 57,0 | – |
| 700653 | (2 x 2 x 0,18) | Siemens | 6FX 8008-1BD71 | Green | 5,0 | 24,0 | 42,0 | – |
| 78079 | (12 x 0,22) | Siemens | 6FX 8008-1BD81 | Green | 7,5 | 65,0 | 74,0 | 24 |
| 804767 | (2 x 2 x 0,2 + 2 x 0,38) | Siemens | 6FX 8008-2DC00 | Green | 7,0 | 40,0 | 74,0 | – |
| 706333 | (5 x 2 x 0,25 + 2 x 0,5) | Berger Lahr | – | Green | 8,8 | 69,0 | 127,0 | 24 |
| 705413 | (3 x 2 x 0,25 + 2 x 0,5) | Elau | – | Green | 7,4 | 43,0 | 82,0 | 24 |
| 707403 | (3 x 2 x 0,25) | B+R | – | Green | 6,5 | 31,0 | 60,0 | 24 |
| 707404 | (5 x 2 x 0,14 + 2 x 0,5) | B+R | – | Green | 8,7 | 48,0 | 98,0 | 24 |
| 707405 | 3 x (2 x 0,14) + (2 x 0,5) | Lenze | – | Green | 9,8 | 42,0 | 98,0 | 24 |
| 707406 | 4 x (2 x 0,14) + (2 x 1,0) | Lenze | – | Green | 11,3 | 66,0 | 144,0 | 24 |
| 707407 | 3 x (2 x 0,14) + (3 x 0,14) | Lenze | – | Green | 10,3 | 41,0 | 127,0 | 24 |
| 702050 | (4 x 2 x 0,25 + 2 x 1,0) | Bosch Rexroth | INK-0209 grün | Green | 8,8 | 64,0 | 99,0 | 24 |
| 78080 | (4 x 2 x 0,25 + 2 x 0,5) | Bosch Rexroth | INK-0448 grün | Green | 8,5 | 51,0 | 106,0 | 24 |
| 77741 | (9 x 0,5) | Bosch Rexroth | INK-0208 grün | Green | 8,8 | 69,0 | 124,0 | 20 |
| 707738 | (4 x 2 x 0,25 + 2 x 1,0) | Bosch Rexroth | INK-0209 | Orange | 8,8 | 64,0 | 99,0 | 20 |
| 707739 | (4 x 2 x 0,25 + 2 x 0,5) | Bosch Rexroth | INK-0448 | Orange | 8,5 | 51,0 | 106,0 | 20 |
| 707740 | (9 x 0,5) | Bosch Rexroth | INK-0208 | Orange | 8,8 | 69,0 | 124,0 | 20 |
| 707408 | (4 x 2 x 0,14 + 4 x 1,0 + (4 x 0,14)) | Bosch Rexroth | INK-0532 | Orange | 9,7 | 81,0 | 142,0 | 20 |
| 707418 | (3 x (2 x 0,25) + 3 x 0,25 + 2 x 1,0) | Bosch Rexroth | INK-0280 | Orange | 9,0 | 84,0 | 134,7 | 20 |
| 707409 | (2 x 2 x 0,25 + 2 x 0,5) | Bosch Rexroth | INK-0750 | Orange | 7,2 | 38,0 | 79,0 | 20 |
| 77743 | (3 x (2 x 0,14) + 2 x (1 x 0,5)) | Heidenhain | – | Green | 8,4 | 81,0 | 109,0 | – |
| 79513 | (4 x 2 x 0,14 + 4 x 0,5) | Heidenhain | – | Green | 8,5 | 52,0 | 100,0 | 26 |
| 707410 | (3 x 2 x 0,14 + 2 x 1,0) | Heidenhain | – | Green | 9,1 | 72,0 | 132,0 | 26 |
| 700560 | (4 x 2 x 0,14 + (4 x 0,14) + 4 x 0,5) | Heidenhain | – | Green | 8,3 | 67,0 | 104,0 | – |
| 77753 | (10 x 0,14 + 2 x 0,5) | Heidenhain | – | Green | 7,2 | 43,0 | 83,0 | 26 |
| 78963 | (5 x 2 x 0,14 + 2 x 0,5) | Baumüller | – | Green | 9,0 | 72,0 | 98,0 | 26 |
| 78828 | (3 x 2 x 0,25) | – | – | Green | 7,2 | 55,0 | 83,0 | 24 |
| 79613 | (5 x 2 x 0,38 + 2 x 0,5) | – | – | Green | 8,6 | 69,0 | 130,0 | 21 |
| 77744 | (3 x (2 x 0,14) + 2 x 1,0) | – | – | Green | 8,2 | 71,0 | 107,0 | 26 |
| 78372 | (3 x 2 x 0,14 + 2 x 0,5) | – | – | Green | 7,2 | 35,0 | 67,0 | 26 |
| 77750 | (4 x (2 x 0,25) + 2 x 1,0) | – | – | Green | 10,5 | 93,0 | 175,0 | 24 |
| 705221 | (4 x 2 x 0,25) | – | – | Green | 7,5 | 39,0 | 88,0 | 24 |
