TOPFLEX® 600 VFD |

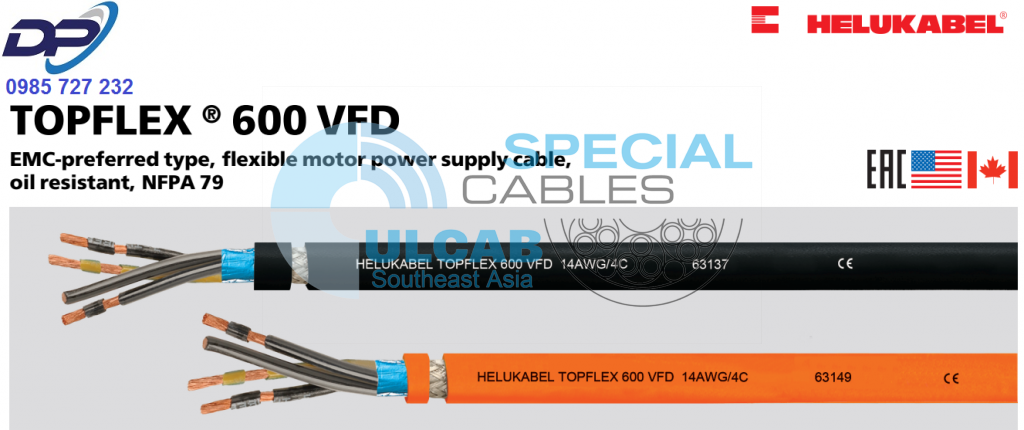

EMC-preferred type, flexible motor power supply cable,
|
   |
Technical data
- PVC motor supply cable acc. to
UL Std.1277 and UL Std.2277 - Temperature range
-25°C to +90°C - Nominal voltage
TC 600 V
WTTC 1000 V - Test voltage
4000 V - Minimum bending radius
flexing 6x cable Ø - Coupling resistance
max. 250 Ohm/km
Cable structure
- Tinned copper conductor, fine wire
with AWG dimensions - Special PVC core insulation
with transparent nylon skin - Black cores with continuous
white numbering - GN-YE conductor in the outer layer
- Cores stranded in layers with
optimal lay length - Fleece
- 1. Screening with special aluminium foil
2. Screening with braid of tinned copper
wires, optimal coverage approx. 85% - Separator
- Special PVC outer sheath
- Sheath colour: black (RAL 9005) or
orange (RAL 2003) - With length marking in feet
Properties
- The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers - UV resistant
Tests
- Self-extinguishing and flame retardant
acc. to CSA FT4 - UL:
TC-ER, WTTC 1000 V, MTW, NFPA 79,
PLTC-ER (AWG 18 – AWG 12),
ITC-ER (AWG 18 – AWG 12) OIL RES I & II,
90°C dry / 75°C wet, -40°C Cold Bend Test,
Class 1 Div. 2 per NEC Art. 336, 392, 501
CSA:
c (UL) CIC-TC FT4, AWM I/II A/B FT4
Note
- VFD = Variable Frequency Drive
Application
Flexible, extremely oil resistant motor supply cable for modern servomotors; the double screening with special aluminium foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbance and the resultant failures. NFPA 79 approved for open, unprotected installation on cable trays and from cable trays to the machine. The special PVC sheath is extremely resistant to oil, coolants and solvents and hence the perfect solution for industrial applications with open installation, installation in pipes and in the ground.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
core colour black
| Part no. | No.cores x cross-sec. mm² |
AWG-No. | Outer Ø
app. mm |
Cop. weight kg / km |
Weight
app. kg / km |
|
|---|---|---|---|---|---|---|
| 63139 | 4 G 1 | 18 | 9,9 | 52,0 | 164,0 | |
| 63140 | 4 G 1,5 | 16 | 11,4 | 72,0 | 183,0 | |
| 63137 | 4 G 2,5 | 14 | 12,5 | 118,0 | 197,0 | |
| 63141 | 4 G 4 | 12 | 14,0 | 182,0 | 267,0 | |
| 63142 | 4 G 6 | 10 | 17,1 | 256,0 | 402,0 | |
| 63143 | 4 G 10 | 8 | 22,3 | 417,0 | 668,0 | |
| 63144 | 4 G 16 | 6 | 25,4 | 651,0 | 918,0 | |
| 63145 | 4 G 25 | 4 | 30,1 | 910,0 | 1363,0 | |
| 63146 | 4 G 35 | 2 | 35,3 | 1411,0 | 1994,0 |
