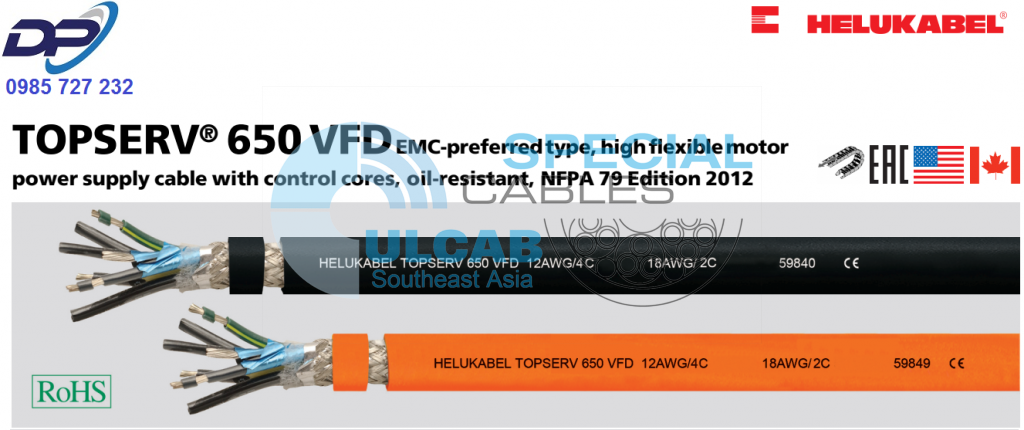

TOPSERV® 650 VFD

EMC-preferred type, flexible motor power supply cable with control cores, oil-resistant, NFPA79 Edition 2012

Logo Image Logo Image Logo Image Logo Image

Technical data

  • TPE motor supply cable acc. to
    UL Std.1277 and UL Std.2277
  • Temperature range
    flexing -25°C to +105°C
  • Nominal voltage
    TC 600 V
    WTTC 1000 V
  • Test voltage
    power supply cores 4000 V
    control cores 2000 V
  • Minimum bending radius
    flexing 5x cable Ø
    permanently flexing 7,5x cable Ø
  • Coupling resistance
    max. 250 Ohm/km

Cable structure

  • Tinned copper conductor, extra fine wire
    with AWG dimensions
  • Core insualtion of special PVC
    with transparent nylon skin
  • Core identification black cores with
    continuous white numbering
    – power supply cores no. 1-4
    – control cores no. 5+6
  • GN-YE conductor in the outer layer
  • Control cores screened in pairs with
    plastic-coated aluminium foil, tinned
    drain wire
  • Control cores stranded in pairs and
    laid up in layers with optimal lay length
    with the power supply cores
  • 1. Screen with plastic-coated
    aluminium foil
    2. Tinned copper braided screen,
    approx. 85% coverage
  • Separator
  • Outer sheath of special TPE
  • Sheath colour: black (RAL 9005)
    or orange (RAL 2003)
  • With length marking in feet

Properties

  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers
  • UV-resistant

Tests

  • self-extinguishing and flame retardant
    acc. to CSA FT4
  • UL:
    TC-ER, WTTC 1000 V, MTW, NFPA 79 2012,
    PLTC-ER (AWG 18 – AWG 12),
    ITC-ER (AWG 18 – AWG 12) OIL RES I & II,
    90°C dry / 75°C wet, Cold Bend Test -40°C
    Class 1 Div. 2 per NEC Art. 336, 392, 501
    CSA:
    c (UL) CIC-TC FT4
    AWM I/II A/B FT4

Note

  • VFD = Variable Frequency Drive

Application

Highly flexible, extremely oil-resistant motor supply cable for modern servomotors; the double-screening with special aluminium foil (100% coverage) and tinned copper braid (approx. 85% coverage) provides effective protection against electrical disturbance and the resultant failures. Approved to NFPA 79 edition 2012 for open, unprotected installation on cable trays and from cable trays to the machine. The special TPE sheath is extremely resistant to oil, coolants and solvents and hence the perfect solution for industrial applications with open installation, installation in pipes and in the earth.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Sheath colour black

Part no. No. cores
x AWG-No
Crosssection mm² Outer Ø
app. Mm
Cop.
weight
kg / km
Weight
app. kg / km
59837 4x AWG 16 +2x AWG 18 1,31/ 0,824 13,0 88,0 259,0
59838 4x AWG 14 +2x AWG 18 2,08/ 0,824 14,0 133,0 370,0
59839 4x AWG 14 +2x AWG 14 2,08/ 2,08 14,6 159,0 399,0
59840 4x AWG 12 +2x AWG 18 3,31/ 0,824 15,3 197,0 435,0
59841 4x AWG 12 +2x AWG 14 3,31/ 2,08 15,7 224,0 466,0
59842 4x AWG 10 +2x AWG 14 5,26/ 2,08 18,2 301,0 703,0
59843 4x AWG 8 +2x AWG 14 8,37/ 2,08 24,1 457,0 901,0
59844 4x AWG 6 +2x AWG 14 13,31/ 2,08 27,4 615,0 1275,0
59845 4x AWG 4 +2x AWG 14 21,21/ 2,08 33,4 1450,0 1861,0

Sheath colour orange

Part no. No. cores
x AWG-No
Crosssection mm² Outer Ø
app. Mm
Cop.
weight
kg / km
Weight
app. kg / km
59846 4x AWG 16 +2x AWG 18 1,31/ 0,824 13,0 88,0 259,0
59847 4x AWG 14 +2x AWG 18 2,08/ 0,824 14,0 133,0 370,0
59848 4x AWG 14 +2x AWG 14 2,08/ 2,08 14,6 159,0 399,0
59849 4x AWG 12 +2x AWG 18 3,31/ 0,824 15,3 197,0 435,0
59850 4x AWG 12 +2x AWG 14 3,31/ 2,08 15,7 224,0 466,0
59851 4x AWG 10 +2x AWG 14 5,26/ 2,08 18,2 301,0 703,0
59852 4x AWG 8 +2x AWG 14 8,37/ 2,08 24,1 457,0 901,0
59853 4x AWG 6 +2x AWG 14 13,31/ 2,08 27,4 615,0 1275,0
59854 4x AWG 4 +2x AWG 14 21,21/ 2,08 33,4 1450,0 1861,0
