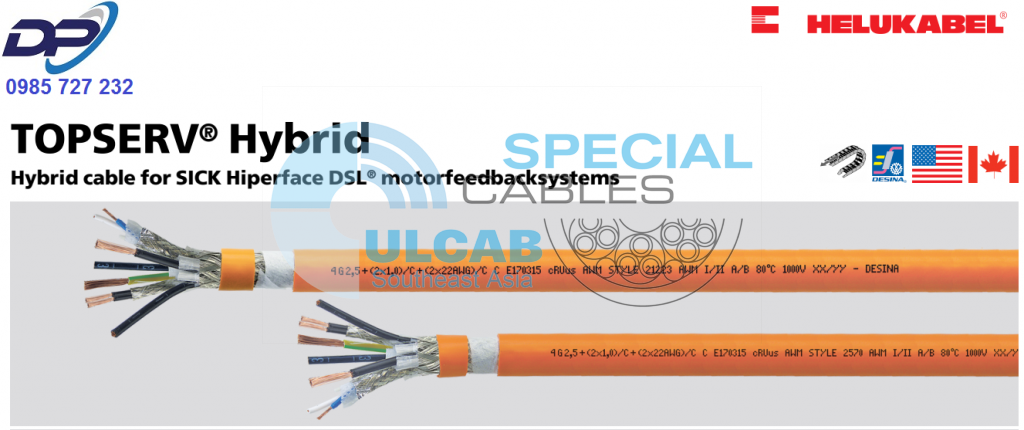

TOPSERV^® Hybrid PVC

Hybrid cable for SICK Hiperface DSL^® motorfeedbacksystems

Technical data

TOPSERV^® PUR
Special PUR drag chain cable acc. to
UL AWM Style 21223 CSA AWM
Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +90°C
Nominal voltage
VDE
power supply cores U₀/U 600/1000 V
control cores U₀/U 300/500 V
UL/CSA 1000 V
A.c. test voltage, 50 Hz
power supply cores 4000 V
control cores 1000 V
Insulation resistance
min. 20 MOhm x km
Coupling resistance
max. 250 Ohm/km
Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø
min. 5 mio. cycles

Cable structure

Bare copper conductor, to
DIN VDE 0295 cl.6, extra fine wire,
IEC 60228 cl.6
Core insulation halogen-free PP
Core identification
power supply cores
core 1: black with imprint U/L1/C/L+
core 2: black with imprint V/L2
core 3: black with imprint W/L3/D/L–
control cores
pair 1: black with number no. 5+6
pair 2: white and blue
GN-YE conductor
Screening of the control cores in pairs
wrapped with tinned copper braid
Power supply cores laid up
with optimal lay length and
stabilising filler
Overall screening from tinned copper
braid, optimal coverage approx. 85%
Outer sheath of PVC or PUR
Sheath colour: orange (RAL 2003)
acc. to DESINA^®

Properties

Low capacitance
PUR outer sheath: low adhesion, extremely
abrasion resistant, halogen-free, resistant
to UV-, oil-, hydrolysis and microbial attack
Optimum compliance with requirements
for electromagnetic compatibility (EMC) by
approx. 85% coverage from the braided
screen
These cables are produced to high quality
specifications and conform to the
DESINA^® standard.
The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers

Tests

PUR outer sheath
self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2

Note

The technical data for TOPSERV^® Hybrid PVC cables are available on request.

Application

The supply conductors for these cables are ideally combined with the control conductors for the brake function and the transmission of the Sick Hiperface DSL protocols. Applications include machine, plant and robot construction. Please observe applicable installation regulations for use in energy supply chains.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
