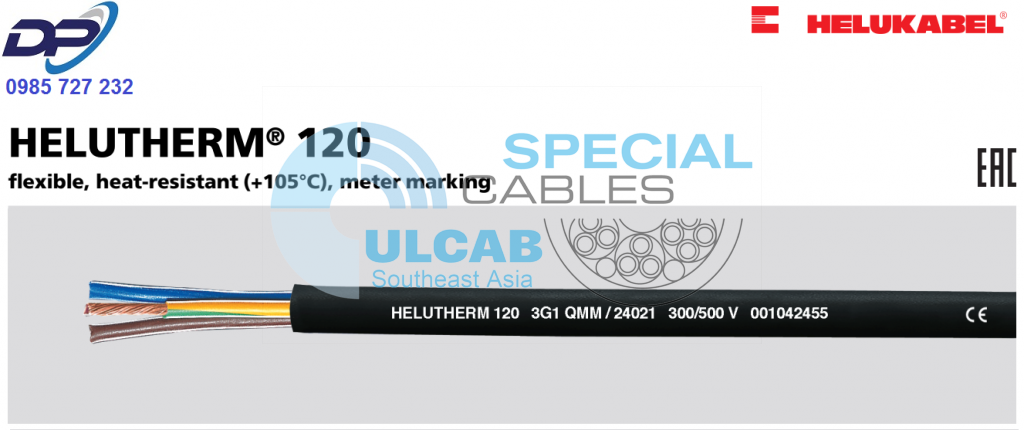

HELUTHERM® 120

flexible, heat-resistant (+105°C), meter marking

Logo Image

Technical data

  • Special PVC cable with increased
    heat-resistance adapted to
    DIN VDE 0285-525-2-11 /
    DIN EN 50525-2-11
    0,5-0,75 mm² acc. to IEC 60227/56
    1-2,5 mm² acc. to IEC 60227/57
  • Temperature range
    flexing -5°C to +105°C
    fixed installation -30°C to +105°C
    (for short time +120°C)
  • Nominal voltage
    0,5-1 mm² U0/U 300/500 V
    from 1,5 mm² U0/U 450/750 V
  • Spark-test 6000 V
  • Test voltage 2000 V
  • Breakdown voltage min. 4000 V
  • Insulation resistance
    min. 20 MOhm x km
  • Minimum bending radius
    flexing 7,5x cable Ø
    fixed installation 4x cable Ø
  • Radiation resistance
    up to 80×106 cJ/kg (up to 80 Mrad)

Cable structure

  • Bare copper conductor, to
    DIN VDE 0295 cl.5, fine wire,
    BS 6360 cl.5, IEC 60228 cl.5
  • Core insualtion of special PVC
    compound type TI3 to
    DIN VDE 0207-363-3 / DIN EN 50363-3
  • Core identification to DIN VDE 0293-308
    – up to 5 cores coloured
    – from 6 cores, black with continuous
    white numbering
  • GN-YE conductor, 3 cores and above
    in the outer layer
  • Cores stranded in layers with
    optimal lay length
  • Outer sheath of special PVC, heat-
    resistant compound type TM3 to
    DIN VDE 0207-363-4-1/DIN EN 50363-4-1
  • Sheath colour: black (RAL 9005)
  • With meter marking

Properties

  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PVC self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2 /
    DIN EN 60332-1-2 / IEC 60332-1-2

Note

  • G = with GN-YE conductor
    x = without GN-YE conductor
  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².
  • On request
    HELUTHERM® 120 H03V2V2-F
    HELUTHERM® 120 H05V2V2-F
    HELUTHERM® 120 (H)05V2V2-F

Application

Therm cables are ideal for use in machines, appliances or motors which are subject to direct contact with high temperatures (e. g. varnishing machines and drying towers etc.). For application in dry, moist and wet rooms and in open air.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Part no. No.cores x
cross-sec.
mm²
Outer Ø

app. mm

Cop.
weight

kg / km

Weight

app. kg / km

AWG-No.
24002 2 x 0,5 4,8 9,6 40,0 20
24003 3 G 0,5 5,1 14,4 50,0 20
24004 4 G 0,5 5,5 19,2 60,0 20
24005 5 G 0,5 6,2 24,0 70,0 20
24006 7 G 0,5 6,7 33,6 90,0 20
24007 12 G 0,5 9,0 58,0 140,0 20
24008 18 G 0,5 10,7 86,0 170,0 20
24009 25 G 0,5 12,6 101,0 250,0 20
24011 2 x 0,75 5,3 14,4 52,0 19
24012 3 G 0,75 5,6 21,6 61,0 19
24013 4 G 0,75 6,3 29,0 75,0 19
24014 5 G 0,75 6,9 36,0 94,0 19
24015 7 G 0,75 7,7 50,0 112,0 19
24016 12 G 0,75 10,0 86,0 180,0 19
24017 18 G 0,75 12,2 130,0 270,0 19
24018 25 G 0,75 14,3 180,0 380,0 19
24019 1 x 1 3,5 9,6 50,0 18
24020 2 x 1 5,6 19,2 60,0 18
24021 3 G 1 6,1 29,0 73,0 18
24022 4 G 1 6,6 38,0 88,0 18
24023 5 G 1 7,5 48,0 110,0 18
24024 6 G 1 8,1 58,0 121,0 18
24025 7 G 1 8,1 67,0 130,0 18
24026 12 G 1 10,8 115,0 223,0 18
24027 18 G 1 12,9 173,0 350,0 18
24028 25 G 1 15,4 240,0 485,0 18
24030 2 x 1,5 7,2 29,0 77,0 16
24031 3 G 1,5 7,8 43,0 97,0 16
24032 4 G 1,5 8,5 58,0 122,0 16
24033 5 G 1,5 9,6 72,0 143,0 16
24034 7 G 1,5 10,6 101,0 179,0 16
24035 12 G 1,5 14,1 173,0 310,0 16
24036 18 G 1,5 17,0 259,0 460,0 16
24037 25 G 1,5 20,2 360,0 650,0 16
24039 2 x 2,5 8,6 48,0 120,0 14
24046 3 G 2,5 9,3 72,0 150,0 14
24040 4 G 2,5 10,4 96,0 200,0 14
24041 5 G 2,5 11,4 120,0 250,0 14
24042 7 G 2,5 12,6 168,0 310,0 14
24044 2 x 4 10,0 77,0 180,0 12
24291 3 G 4 10,8 115,0 220,0 12
24045 4 G 4 12,0 154,0 300,0 12
24292 5 G 4 13,4 192,0 360,0 12
