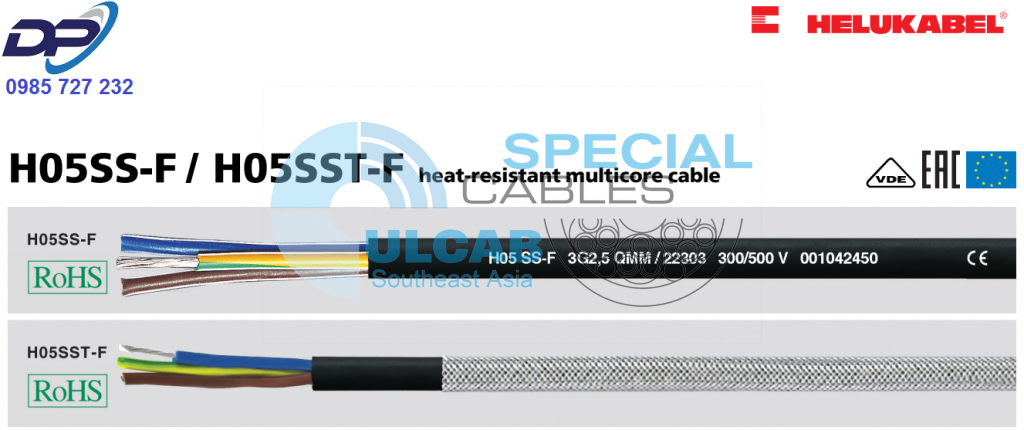

H05SS-F / H05SST-F

heat-resistant multicore cable

Technical data

• Heat-resistant multicore cable to
  DIN VDE 0285-525-2-83 /
  DIN EN 50525-2-83
• Temperature range
  fixed installation -60°C to + 180°C
  (for short time +250°C)
• Permissible operating temperature
  at conductor +180°C
• Nominal voltage U₀/U 300/500 V
• Test voltage 2000 V
• Specific volume resistivity
  min. 200 MOhm x km
• Minimum bending radius
  flexing 7,5x cable Ø
  fixed installation 4x cable Ø
• Radiation resistance
  up to 20×10⁶ cJ/kg (up to 20 Mrad)

Cable structure

• Tinned copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insulation of cross-linked rubber (SiR)
  compound type EI2 to
  DIN VDE 0207-363-1 / DIN EN 50363-1
• Core identification to DIN VDE 0293-308
• GN-YE conductor, 3 cores and above
• Cores stranded in layers with
  optimal lay length
• Outer sheath of cross-linked rubber
  compound type EM9 to
  DIN VDE 0207-363-2-1/DIN EN 50363-2-1
• Sheath colour: black (RAL 9005)
  also available in other colours on request

H05SST-F

• Constuction as per H05SS-F
• Polyester braiding

Properties

• Advantages Hardly changes of dielectric
  strength and the insulation resistance also
  at high temperatures
• These cables may be damaged by pulling
  over sharp-edges or by abrasion during the
  installation and application. To avoid this,
  it should be treated with great care during
  the installation and application of the cable.

Tests

• Behavior in fire
  Test of vertical flame-propagation to
  VDE 0482-332-1-2, DIN EN 60332-1-2,
  not valid for the cables with outer
  polyesterbraiding (Type H05SST-F)

Note

• G = with GN-YE conductor
  x = without GN-YE conductor
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

Multicore cables insulated and sheathed with heat resistant silicone rubber without strain relieving elements are used in high temperatures or with contact to hot-surfaces. These cables are installed for fixed installation, mechanical protected, for internal wiring of lighting fixtures in industrial application. It is recommended for the application of the apparatus which are moving during the operation with less mechanical stress.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
Certificate of compliance

H05SST-F

H05SS-F
