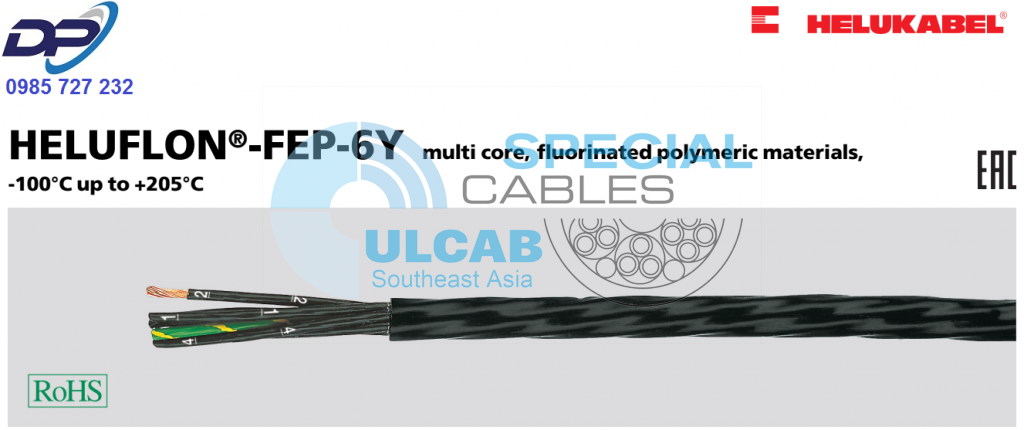

HELUFLON®-FEP-6Y |
Fluorinated polymeric materials, multi core, -100°C up to +205°C |
 |
Technical data
- Fluorinated polymeric insulation FEP
(Fluorethylenepropylene) - Temperature range
-100°C to +205°C
(for short time +230°C) - Conductor temperature range
bare copper +130°C
tinned copper +180°C
silver pl. copper +200°C - Nominal voltage
600 V - Test voltage
2500 V - Insulation resistance
min. 2 GOhm x km - Minimum bending radius
flexing 15x cable Ø
fixed installation 4x cable Ø - Radiation resistance
up to 1×106 cJ/kg (up to 1 Mrad)
Cable structure
- Copper conductor, bare, tinned, silver
to DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5 - Core insulation of FEP-HELUFLON®
- Core identification to DIN VDE 0293-308
– up to 0,25 mm² cores coloured
– from 0,5 mm² black cores with
continuous white numbering - GN-YE conductor, 3 cores and above
- Cores stranded in layers with
optimal lay length - Outer sheath of FEP-HELUFLON®
- Sheath colour: black (RAL 9005)
Properties
- Higher insulation resistance
- Low dielectric loss
- Not flammable
- Resistant to micro-cultures
- Do not permit any fungus-formation
- Absolute ozone resistant
- Absolute weather resistant
- Water absorption <0,01%
- Minimal water vapour permeability (approx.
0,18 mgr/cm² in 24 hours) - The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
- Self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2
Note
- G = with GN-YE conductor
x = without GN-YE conductor (OZ) - AWG sizes are approximate equivalent
values. The actual cross section is in mm².
Application
This cables are predominantly used for installing in control cabinets subjected to high thermal effects as well as in brickworks, heaters, kitchen fitments and measuring appliances as well as in the chemical industry. These cables are non-flammable and resistant to acids, alkalis, solvents, oil and petrol.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
copper wire, tinned
| Part no. | No.cores x cross-sec. mm² |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|
| 24547 | 2 x 0,25 | 2,7 | 5,0 | 17,0 | 24 |
| 24548 | 3 G 0,25 | 2,9 | 7,5 | 22,0 | 24 |
| 24549 | 4 G 0,25 | 3,2 | 10,0 | 27,0 | 24 |
| 24550 | 5 G 0,25 | 3,5 | 12,5 | 34,0 | 24 |
| 24551 | 7 G 0,25 | 3,9 | 17,5 | 46,0 | 24 |
| 24552 | 2 x 0,5 | 3,3 | 9,8 | 21,0 | 20 |
| 24553 | 3 G 0,5 | 3,5 | 14,7 | 32,0 | 20 |
| 24554 | 4 G 0,5 | 3,9 | 19,6 | 44,0 | 20 |
| 24555 | 5 G 0,5 | 4,3 | 24,5 | 55,0 | 20 |
| 24556 | 7 G 0,5 | 4,8 | 34,3 | 70,0 | 20 |
| 24557 | 2 x 0,75 | 3,6 | 14,4 | 31,0 | 19 |
| 24558 | 3 G 0,75 | 3,9 | 21,6 | 46,0 | 19 |
| 24559 | 4 G 0,75 | 4,3 | 29,0 | 58,0 | 19 |
| 24560 | 5 G 0,75 | 4,7 | 36,0 | 69,0 | 19 |
| 24561 | 7 G 0,75 | 4,8 | 50,0 | 92,0 | 19 |
| 24562 | 2 x 1 | 4,1 | 19,0 | 41,0 | 18 |
| 24563 | 3 G 1 | 4,4 | 29,0 | 55,0 | 18 |
| 24564 | 4 G 1 | 4,9 | 38,0 | 71,0 | 18 |
| 24565 | 5 G 1 | 5,5 | 48,0 | 88,0 | 18 |
| 24566 | 7 G 1 | 6,0 | 67,0 | 113,0 | 18 |
| 24273 | 12 G 1 | 8,0 | 115,2 | 220,0 | 18 |
| 24274 | 18 G 1 | 9,5 | 173,0 | 321,0 | 18 |
| 24275 | 25 G 1 | 11,2 | 240,0 | 458,0 | 18 |
| 24501 | 2 x 1,5 | 4,9 | 29,0 | 45,0 | 16 |
| 24502 | 3 G 1,5 | 5,3 | 43,0 | 70,0 | 16 |
| 24503 | 4 G 1,5 | 5,8 | 58,0 | 98,0 | 16 |
| 24504 | 5 G 1,5 | 6,5 | 72,0 | 117,0 | 16 |
| 24505 | 7 G 1,5 | 7,2 | 101,0 | 184,0 | 16 |
| 24276 | 12 G 1,5 | 10,2 | 173,0 | 326,0 | 16 |
| 24277 | 18 G 1,5 | 12,3 | 260,0 | 504,0 | 16 |
| 24278 | 25 G 1,5 | 14,0 | 360,0 | 682,0 | 16 |
| 24279 | 3 G 2,5 | 6,4 | 72,0 | 121,0 | 14 |
| 24280 | 4 G 2,5 | 7,0 | 96,0 | 182,0 | 14 |
| 24281 | 5 G 2,5 | 7,9 | 120,0 | 240,0 | 14 |
| 24282 | 7 G 2,5 | 8,7 | 168,0 | 316,0 | 14 |
| 24283 | 3 G 4 | 7,5 | 115,0 | 212,0 | 12 |
| 24284 | 4 G 4 | 8,3 | 154,0 | 304,0 | 12 |
| 24285 | 5 G 4 | 9,2 | 192,0 | 386,0 | 12 |
HELUFLON®-FEP-6Y (copper wire, bare)
| Part no. | No.cores x cross-sec. mm² |
Outer Ø
approx. mm |
Cop. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|
| 25914 | 2 x 0,25 | 2,7 | 5,0 | 17,0 | 24 |
| 25915 | 3 G 0,25 | 2,9 | 7,5 | 22,0 | 24 |
| 25916 | 4 G 0,25 | 3,2 | 10,0 | 27,0 | 24 |
| 25917 | 5 G 0,25 | 3,5 | 12,5 | 34,0 | 24 |
| 25918 | 7 G 0,25 | 3,9 | 17,5 | 46,0 | 24 |
| 25919 | 2 x 0,5 | 3,3 | 9,8 | 21,0 | 20 |
| 25920 | 3 G 0,5 | 3,5 | 14,7 | 32,0 | 20 |
| 25921 | 4 G 0,5 | 3,9 | 19,6 | 44,0 | 20 |
| 25922 | 5 G 0,5 | 4,3 | 24,5 | 55,0 | 20 |
| 25923 | 7 G 0,5 | 4,8 | 34,3 | 70,0 | 20 |
| 25924 | 2 x 0,75 | 3,6 | 14,4 | 31,0 | 19 |
| 25925 | 3 G 0,75 | 3,9 | 21,6 | 46,0 | 19 |
| 25926 | 4 G 0,75 | 4,3 | 29,0 | 58,0 | 19 |
| 25927 | 5 G 0,75 | 4,7 | 36,0 | 69,0 | 19 |
| 25928 | 7 G 0,75 | 5,4 | 50,0 | 92,0 | 19 |
| 25929 | 2 x 1 | 4,1 | 19,0 | 41,0 | 18 |
| 25930 | 3 G 1 | 4,4 | 29,0 | 55,0 | 18 |
| 25931 | 4 G 1 | 4,9 | 38,0 | 71,0 | 18 |
| 25932 | 5 G 1 | 5,5 | 48,0 | 88,0 | 18 |
| 25933 | 7 G 1 | 6,0 | 67,0 | 113,0 | 18 |
| 25934 | 12 G 1 | 8,0 | 115,2 | 220,0 | 18 |
| 25935 | 18 G 1 | 9,5 | 173,0 | 321,0 | 18 |
| 25936 | 25 G 1 | 11,2 | 240,0 | 458,0 | 18 |
| 25937 | 2 x 1,5 | 4,9 | 29,0 | 45,0 | 16 |
| 25938 | 3 G 1,5 | 5,3 | 43,0 | 70,0 | 16 |
| 25939 | 4 G 1,5 | 5,8 | 58,0 | 98,0 | 16 |
| 25940 | 5 G 1,5 | 6,5 | 72,0 | 117,0 | 16 |
| 25941 | 7 G 1,5 | 7,2 | 101,0 | 184,0 | 16 |
| 25942 | 12 G 1,5 | 10,2 | 173,0 | 326,0 | 16 |
| 25943 | 18 G 1,5 | 12,3 | 260,0 | 504,0 | 16 |
| 25944 | 25 G 1,5 | 14,0 | 360,0 | 682,0 | 16 |
| 25945 | 3 G 2,5 | 6,4 | 72,0 | 121,0 | 14 |
| 25946 | 4 G 2,5 | 7,0 | 96,0 | 182,0 | 14 |
| 25947 | 5 G 2,5 | 7,9 | 120,0 | 240,0 | 14 |
| 25948 | 7 G 2,5 | 8,7 | 168,0 | 316,0 | 14 |
| 25949 | 3 G 4 | 7,5 | 115,0 | 212,0 | 12 |
| 25950 | 4 G 4 | 8,3 | 154,0 | 304,0 | 12 |
| 25951 | 5 G 4 | 9,2 | 192,0 | 386,0 | 12 |
HELUFLON®-FEP-6Y (copper wire, silvered)
| Part no. | No.cores x cross-sec. mm² |
Outer Ø
approx. mm |
Cop. weight kg / km |
Silv. weight kg / km |
Weight
approx. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|
| 25952 | 2 x 0,25 | 2,7 | 5,0 | 0,26 | 17,0 | 24 |
| 25953 | 3 G 0,25 | 2,9 | 7,5 | 0,39 | 22,0 | 24 |
| 25954 | 4 G 0,25 | 3,2 | 10,0 | 0,52 | 27,0 | 24 |
| 25955 | 5 G 0,25 | 3,5 | 12,5 | 0,65 | 34,0 | 24 |
| 25956 | 7 G 0,25 | 3,9 | 17,5 | 0,91 | 46,0 | 24 |
| 25957 | 2 x 0,5 | 3,3 | 9,8 | 0,34 | 21,0 | 20 |
| 25958 | 3 G 0,5 | 3,5 | 14,7 | 0,51 | 32,0 | 20 |
| 25959 | 4 G 0,5 | 3,9 | 19,6 | 0,68 | 44,0 | 20 |
| 25960 | 5 G 0,5 | 4,3 | 24,5 | 0,85 | 55,0 | 20 |
| 25961 | 7 G 0,5 | 4,8 | 34,3 | 1,19 | 70,0 | 20 |
| 25962 | 2 x 0,75 | 3,6 | 14,4 | 0,40 | 31,0 | 19 |
| 25963 | 3 G 0,75 | 3,9 | 21,6 | 0,60 | 46,0 | 19 |
| 25964 | 4 G 0,75 | 4,3 | 29,0 | 0,80 | 58,0 | 19 |
| 25965 | 5 G 0,75 | 4,7 | 36,0 | 1,00 | 69,0 | 19 |
| 25966 | 7 G 0,75 | 5,4 | 50,0 | 1,40 | 92,0 | 19 |
| 25967 | 2 x 1 | 4,1 | 19,0 | 0,52 | 41,0 | 18 |
| 25968 | 3 G 1 | 4,4 | 29,0 | 0,78 | 55,0 | 18 |
| 25969 | 4 G 1 | 4,9 | 38,0 | 1,04 | 71,0 | 18 |
| 25970 | 5 G 1 | 5,5 | 48,0 | 1,30 | 88,0 | 18 |
| 25971 | 7 G 1 | 6,0 | 67,0 | 1,82 | 113,0 | 18 |
| 25972 | 12 G 1 | 8,0 | 115,2 | 3,12 | 220,0 | 18 |
| 25973 | 18 G 1 | 9,5 | 173,0 | 4,68 | 321,0 | 18 |
| 25974 | 25 G 1 | 11,2 | 240,0 | 6,50 | 458,0 | 18 |
| 25975 | 2 x 1,5 | 4,9 | 29,0 | 0,70 | 45,0 | 16 |
| 25976 | 3 G 1,5 | 5,3 | 43,0 | 1,05 | 70,0 | 16 |
| 25977 | 4 G 1,5 | 5,8 | 58,0 | 1,40 | 98,0 | 16 |
| 25978 | 5 G 1,5 | 6,5 | 72,0 | 1,75 | 117,0 | 16 |
| 25979 | 7 G 1,5 | 7,2 | 101,0 | 2,45 | 184,0 | 16 |
| 25980 | 12 G 1,5 | 10,2 | 173,0 | 4,20 | 326,0 | 16 |
| 25981 | 18 G 1,5 | 12,3 | 260,0 | 6,30 | 504,0 | 16 |
| 25982 | 25 G 1,5 | 14,0 | 360,0 | 8,75 | 682,0 | 16 |
| 25983 | 3 G 2,5 | 6,4 | 72,0 | 2,10 | 121,0 | 14 |
| 25984 | 4 G 2,5 | 7,0 | 96,0 | 2,80 | 182,0 | 14 |
| 25985 | 5 G 2,5 | 7,9 | 120,0 | 3,50 | 240,0 | 14 |
| 25986 | 7 G 2,5 | 8,7 | 168,0 | 4,90 | 316,0 | 14 |
| 25987 | 3 G 4 | 7,5 | 115,0 | 3,60 | 212,0 | 12 |
| 25989 | 4 G 4 | 8,3 | 154,0 | 4,80 | 304,0 | 12 |
| 25990 | 5 G 4 | 9,2 | 192,0 | 6,00 | 386,0 | 12 |
