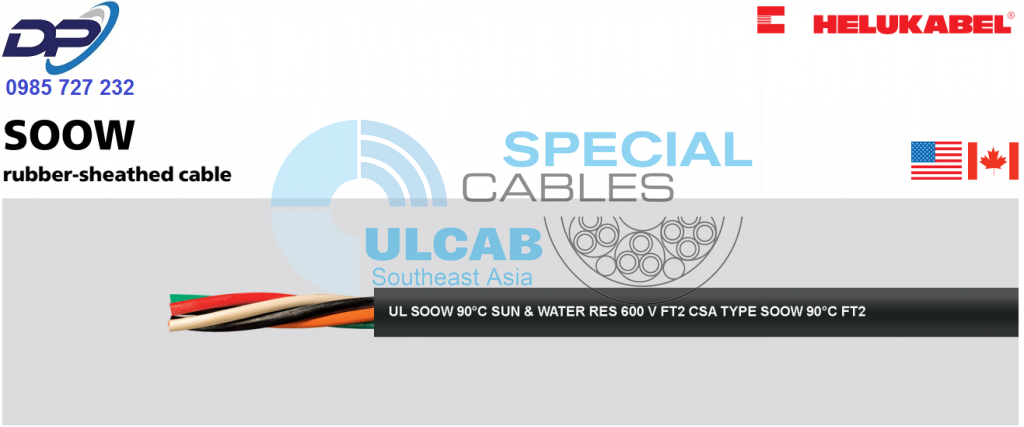

SOOW
rubber-sheathed cable
Technical data
- Rubber-sheated cable acc. to
UL Std.62
CAN/CSA-C 22.2 No.49 - UL – SOOW
CSA – SOOW - Temperature range
-40°C to +90°C - Permissible operating temperature
at the conductor +90°C - Nominal voltage
600 V - Test voltage
2500 V - Minimum bending radius
flexing 6x cable Ø
Cable structure
- Copper conductor bare or tinned, fine
wire stranded with AWG dimensions - Core insulation of rubber (EPR)
- Core identification
3 cores: BK, WH, GN
4 cores: BK, WH, RD, GN
5 cores: BK, WH, RD, GN, OG - Cores stranded in layers with
optimal lay length - Separator
- Outer sheath of rubber (CPE)
- Sheath colour: black
Properties
- Ozone resistant
- Weather and UV resistant
- Resistant to oils and greases
Tests
- CSA FT2
Application
Approved, heavy rubber-sheathed cable, for usage in dry, moist, wet rooms as well as outdoors. Used as supply cable in industrial plants and processing facilities, for cranes, hand lamps, lifting devices, construction machineries and motors.
Downloads
| Part no. | No.cores x AWG-No. |
Current carrying capacity at +30°C (A) |
Outer Ø
app. mm |
Cop. weight kg / km |
Weight
app. kg / km |
|
|---|---|---|---|---|---|---|
| 38548 | 3 x 18 | 10 | 9,1 | 24,0 | 110,0 | |
| 38549 | 4 x 18 | 7 | 9,8 | 32,0 | 130,0 | |
| 38550 | 5 x 18 | 5,6 | 11,7 | 40,0 | 183,0 | |
| 38551 | 3 x 16 | 13 | 10,1 | 38,0 | 134,0 | |
| 38552 | 4 x 16 | 10 | 10,6 | 51,0 | 160,0 | |
| 38553 | 5 x 16 | 8 | 12,5 | 63,0 | 222,0 | |
| 38554 | 3 x 14 | 18 | 13,3 | 60,0 | 240,0 | |
| 38555 | 4 x 14 | 15 | 14,4 | 80,0 | 286,0 | |
| 38556 | 5 x 14 | 12 | 16,4 | 100,0 | 374,0 | |
| 38557 | 3 x 12 | 25 | 15,2 | 95,0 | 323,0 | |
| 38558 | 4 x 12 | 20 | 16,5 | 127,0 | 389,0 | |
| 38559 | 5 x 12 | 16 | 17,8 | 159,0 | 475,0 | |
| 38560 | 3 x 10 | 30 | 16,5 | 152,0 | 419,0 | |
| 38561 | 4 x 10 | 25 | 18,0 | 202,0 | 500,0 | |
| 38562 | 5 x 10 | 20 | 19,3 | 253,0 | 609,0 | |
| 38563 | 3 x 8 | 40 | 21,1 | 241,0 | 673,0 | |
| 38564 | 4 x 8 | 35 | 23,5 | 322,0 | 859,0 | |
| 38565 | 5 x 8 | 28 | 25,4 | 402,0 | 1017,0 | |
| 11007274 | 3 x 6 | 55 | 24,6 | 383,0 | 954,0 | |
| 11007223 | 4 x 6 | 45 | 26,9 | 517,0 | 1169,0 | |
| 11007275 | 5 x 6 | 36 | 30,0 | 638,0 | 1463,0 | |
| 11007276 | 3 x 4 | 70 | 28,7 | 610,0 | 1359,0 | |
| 11007277 | 4 x 4 | 60 | 31,8 | 814,0 | 1721,0 | |
| 11007278 | 3 x 2 | 95 | 33,1 | 968,0 | 1916,0 | |
| 11007279 | 4 x 2 | 80 | 36,8 | 1290,0 | 2447,0 |
